Note
73, Mar 1967, p. 119. (new product announcement)
QST, Mar 1969, p. 4.
The HQ-205 is an update of the HQ-105TR.

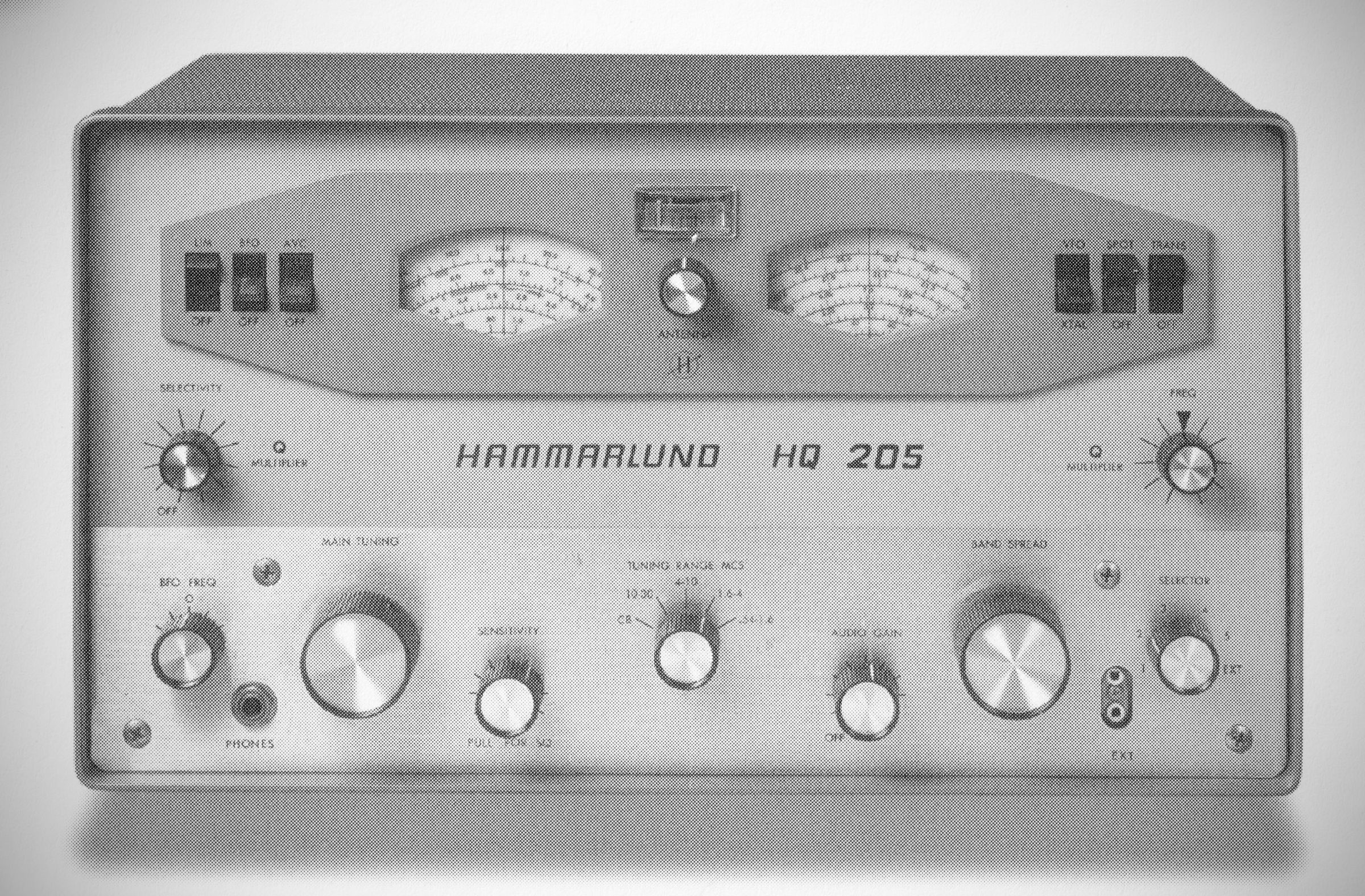

The Hammarlund HQ-205 is a communications instrument that combines a general coverage superheterodyne receiver (540 kHz to 30 MHz) with a Class D Citizen's Band (CB) transceiver.
Red segments on the main tuning dial indicate wherein the majority of the international shortwave stations can be located.
Features
– Receiver Capabilities: Supports AM, CW, and SSB reception. Includes a Hammarlund noise limiter circuit, a Q-Multiplier for variable selectivity, an adjustable squelch circuit, and an "S" Meter. It can function as either a tunable or crystal-controlled CB receiver.
– Tuning & Bands: Features electrical bandspread tuning with direct calibration for the 80, 40, 20, 15, and 10-meter amateur bands. Main tuning dial markings highlight international shortwave bands, and the front-panel "Spot" switch helps precisely calibrate CB channels.
– Transmitter & Modulation: Uses a high-gain modulator designed for desk microphones. Transmitter keying is operated via the front panel switch or a push-to-key microphone switch.
– Crystals & Antennas: Provides separate inputs for shortwave and CB antennas, allowing both to remain connected simultaneously. Accommodates five internal receive crystals, five internal transmit crystals, and one external transmit crystal.
– 10-Meter Operation: Can be adapted for use as a 10-meter transceiver without physical modification, requiring only simple transmitter adjustments.
Specifications
– Frequency Coverage: 540 KHz to 30 MHz general coverage superheterodyne receiver.
– Transceiver Class: Class D Citizen's Band (CB) transceiver.
– Amateur Band Conversion: Can be operated as a 10-meter transceiver without modification by following transmitter alignment adjustments.
– Oscillator Supply: High-frequency oscillators operate from a regulated supply.
– Modes of Reception: AM, CW, and SSB.
– Selectivity & Noise Control: Equipped with a Q-Multiplier for variable selectivity, an adjustable squelch circuit, and a Hammarlund noise limiter circuit.
– Metering: "S" Meter for tuning phone signals and calibrating CB channels.
– Bandspread Calibration:
80, 40, and 20 meter bands: Direct calibration every 10 kHz.
15 meter band: Direct calibration every 20 kHz.
10 meter band: Direct calibration every 50 kHz.
CB channels: Included on the bandspread dial.
– CB Operation Modes: Tunable or crystal-controlled CB receiver.
– Crystal Capacity:
5 internal CB receive crystals.
5 internal CB transmit crystals.
1 external CB transmit crystal (automatically switches receiver to tunable mode when used).
– Antenna Inputs: Separate shortwave and CB antenna inputs (both can remain connected simultaneously).
– Transmitter Keying: Front-panel transmit switch or push-to-key microphone switch.
– Modulator Compatibility: High-gain modulator designed for desk-type microphones.
Tube Lineup (11 total)
– 6BZ6: Pentode (RF Amplifier)
– 6BE6: Pentagrid Converter (Mixer)
– 6HF8: Multi-unit Triode/Pentode (V3A Triode: Tunable HF Oscillator; V3B Pentode: Crystal-controlled HF Oscillator)
– 12AX7: Dual Triode (V4A: Q Multiplier; V4B: First Speech Amplifier)
– 6BA6: Remote Cutoff Pentode (First IF Amplifier)
– 6BA6: Remote Cutoff Pentode (Second IF Amplifier)
– 6GW8: Triode/Pentode (V7A Triode: First Audio Amplifier / Second Speech Amplifier; V7B Pentode: Audio Output / Modulator)
– 6C4: Triode (BFO)
– 6BQ5: Pentode (Final RF Amplifier, CB)
– 6BA6: Remote Cutoff Pentode (Transmitter Oscillator)
– 0B2: Gas-Filled Diode (Voltage Regulator)
Power requirements: 115 VAC, 50–60 Hz
References
Brief description. Popular Electronics, Mar 1967, p. 22.
