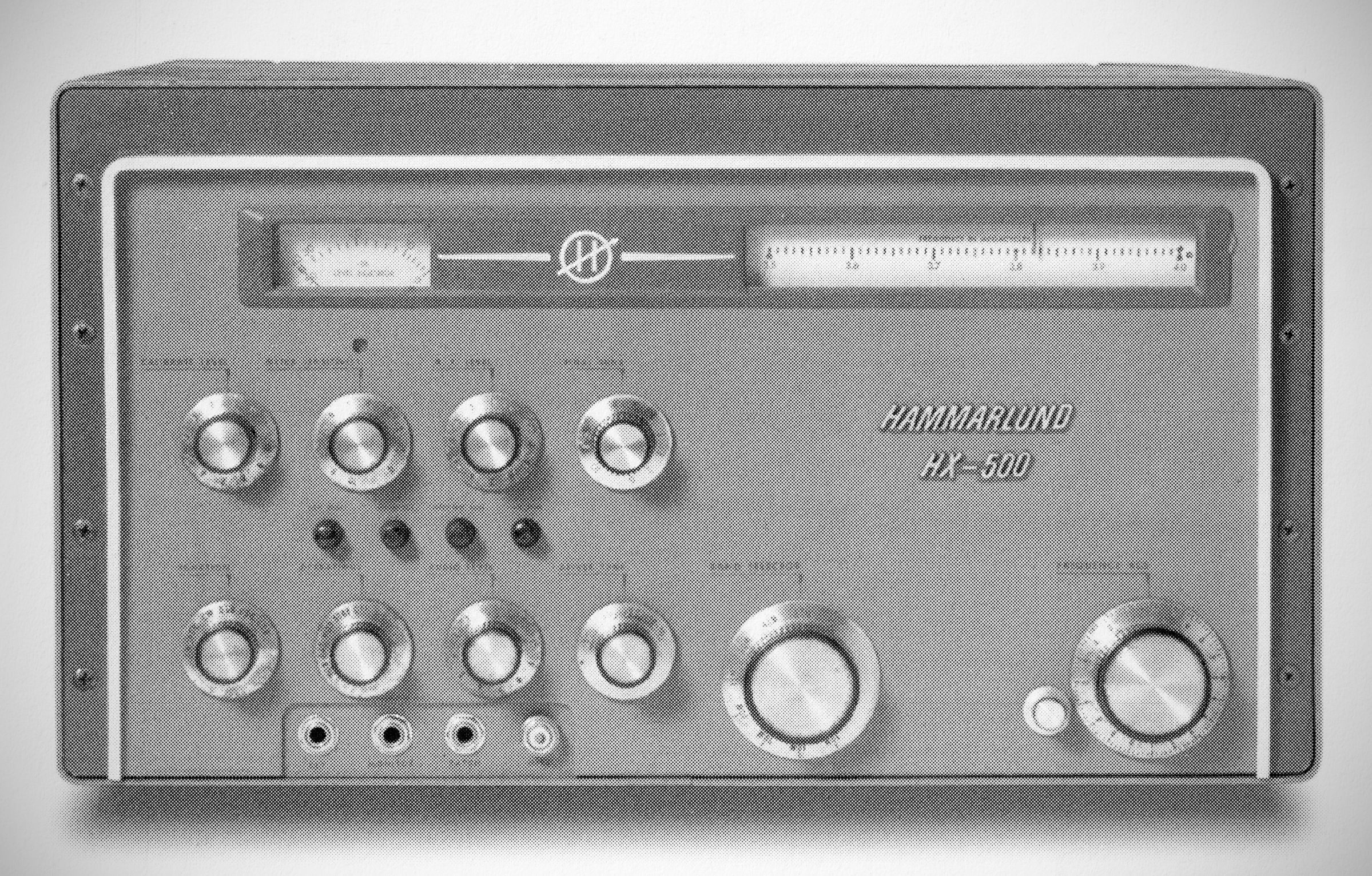

The Hammarlund HX-500 is a 100-watt AM/CW/SSB transmitter for amateur and commercial use on the 3.5, 7, 14, 21 and 28 to 30 MHz bands. It uses 21 vacuum tubes, 4 semiconductor diodes.
The VFO tuning mechanism is gear-driven to eliminate backlash. A dial drag/lock knob allows operators to adjust the tuning torque or lock the dial to a specific frequency.
– VFO Range: 500 kHz.
– Tuning Rate: 20 kHz per complete single rotation of the tuning knob.
– Dial Accuracy: Main slide-rule dial indicates down to 10 kHz increments; tuning knob skirt is calibrated to better than 200 Hz.
Features
– Separate dial scale for each band, or portion of 10 band.
– All crystals included for all amateur bands.
– Frequency readability to 200 Hz, or better.
– Stability after warm-up better than 100 Hz.
– Modes: USB, LSB, DSB, CW, FM, FSK for RTTY plus 40 Hz identification keyed shift.
– ALC adjustable to prevent overdrive.
– 50 ohm fixed pi output.
– Built-in antenna changeover with receiver antenna input connection.
– Adjustable RF level controls output power when employed with high power linear.
– TVI suppressed.
– Provision for metering final plate current.
– ALC and VOX.
Output power
– SSB: 70–100 watts PEP
– CW: 70–100 watts
– FSK: 70–100 watts
– FM: 70–100 watts power output.
– DSB / AM: 17–25 watts
Specifications
– Carrier Suppression: Better than -50 dB.
– Unwanted Sideband Suppression: Better than -50 dB.
– FSK Deviation: Adjustable up to 2 kHz (typically set to 850 Hz); features an automatic 40 Hz identification shift for CW ID.
– 3rd and 5th order distortion products down 30 db or better.
– Spurious frequencies down 50 db or better.
– Self-balancing diode balanced modulator.
– Overall audio response 300 to 2300 Hz.
– 60 kHz filter type SSB generator.

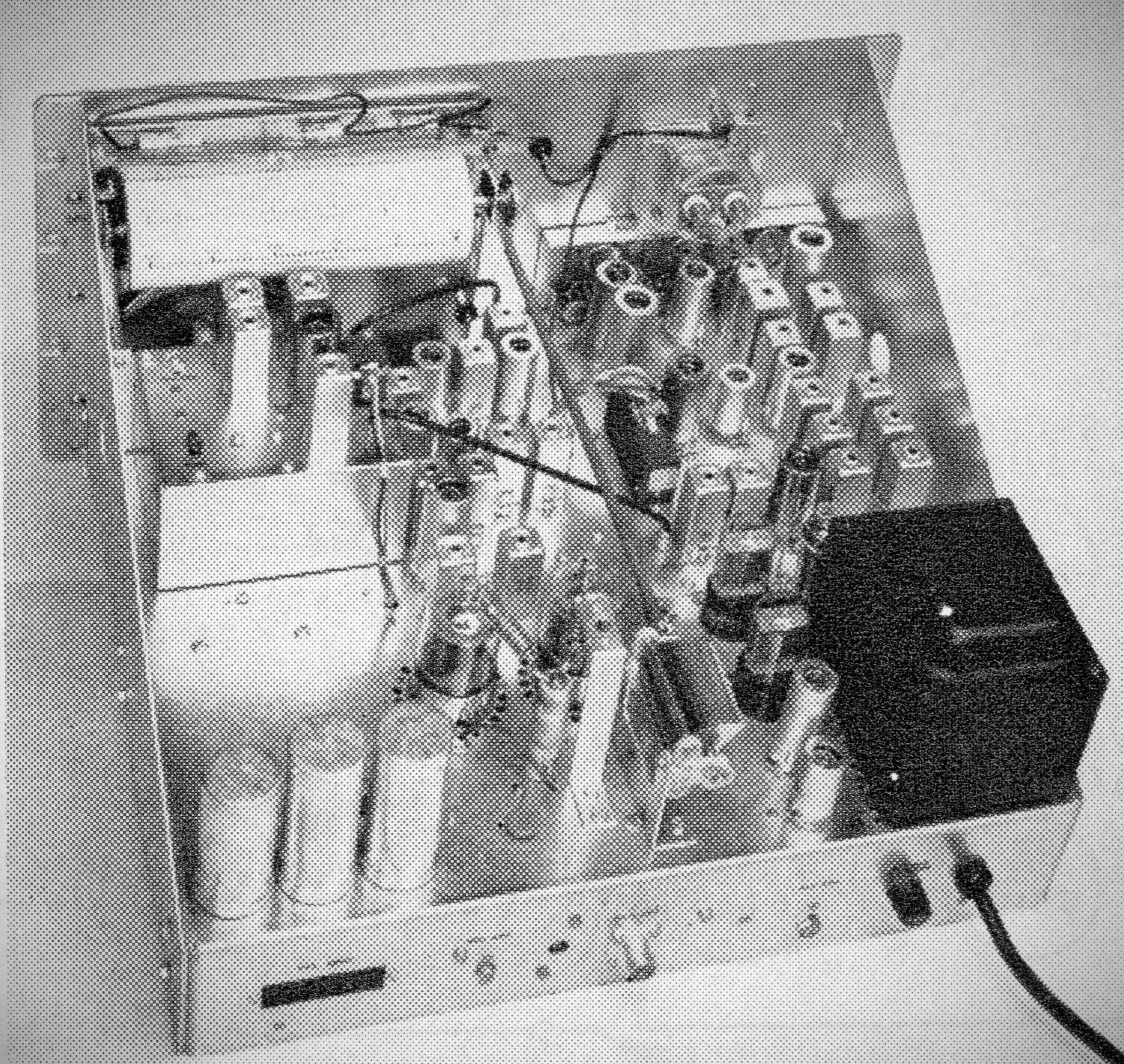

Uses a parallel pair of fan cooled 6146 beam power pentodes operating in Class AB1.
The output tank circuit matches a 52-ohm transmission line and is designed to suppress TVI.
Includes a built-in T/R antenna changeover relay with an external connection to disable the station receiver during transmission.

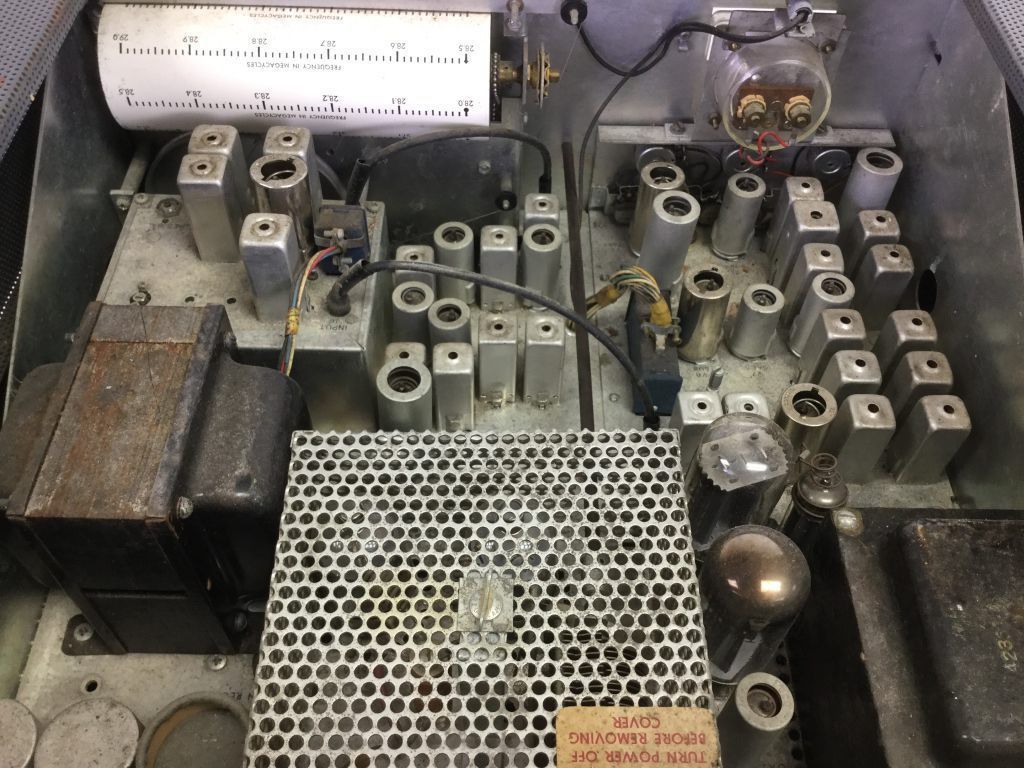

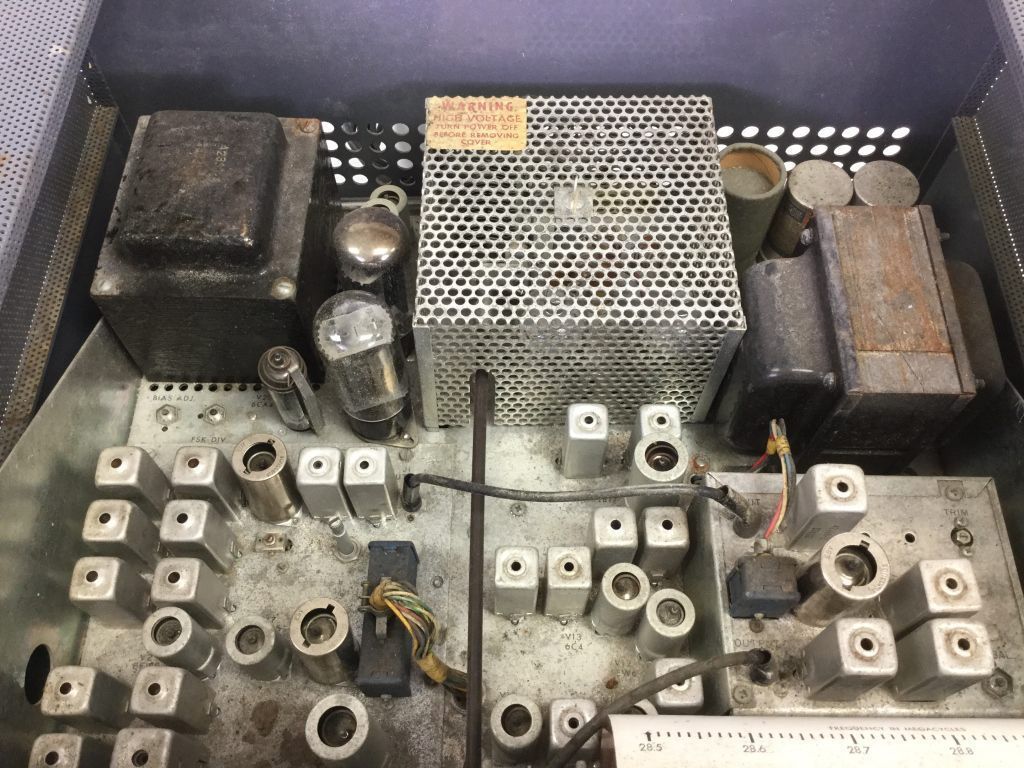

Tube LIneup
6AU6: 60 kHz Oscillator
6EW6: 60 kHz Amplifier
6U8: Crystal Oscillator - 1st Mixer
12BY7: Reactance Modulator
12AX7: 1st and 2nd Audio Amplifier
6CM7: 3rd Audio Amplifier / VOX Amplifier
6AL5: VOX Diode / Anti-Trip Diode
6U8: Anti-Trip Amplifier / Relay Amplifier
6U8: VFO / 2nd Mixer
(2) 6CB6: Bandpass Amplifier
6EW6: 3rd Mixer
6C4: H.F. Crystal Oscillator
12BY7: R.F. Amplifier - Driver
(2) 6146: Final R.F. Power Amplifier
6AL5: ALC Bias Rectifier
(2) 12AX4: High Voltage Rectifier Diode
6CA4/EZ81: Low Voltage Rectifier
0A2: Voltage Regulator
Power Requirements: 105–125 VAC, 50–60 Hz.
References
Review: QST, Oct 1960, p. 45.
