Note
QST, Dec 1947, p. 100.

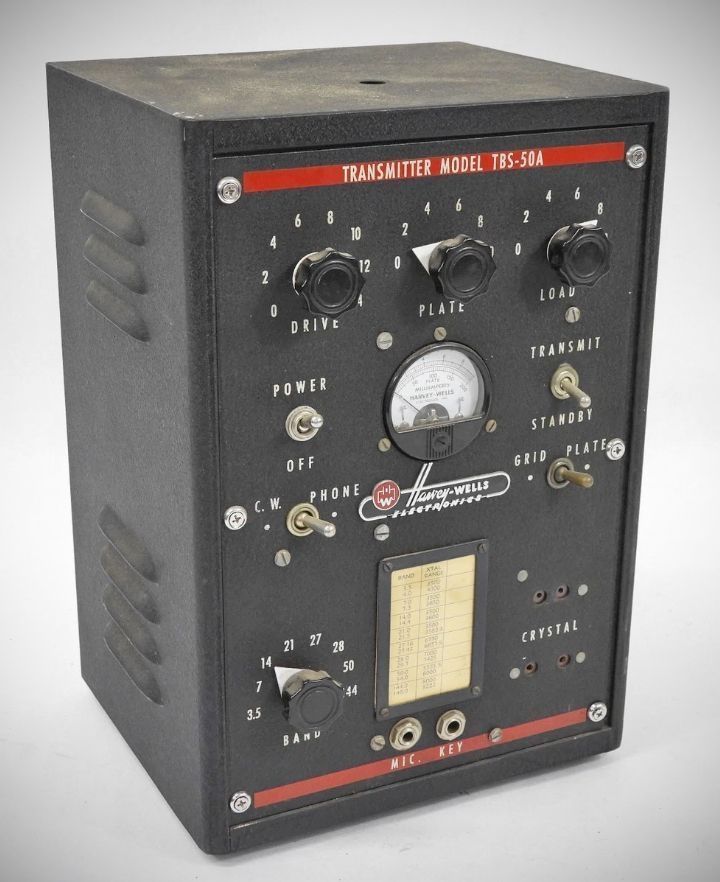

QST, Oct 1948, p. 86. (TBS-50A. TBS-50 and 50A sold concurrently.)
QST, Apr 1950, p. 99. "Junior"
QST, Nov 1950, page 82. ("Nearly 4000 in use around the world")
QST, Mar 1951, page 90. ("Nearly 5000 in use around the world")
QST, Jul 1950, p. 82. ("Deluxe" model")
Allied Radio catalog 1955 (copyright 1954), p. 193.

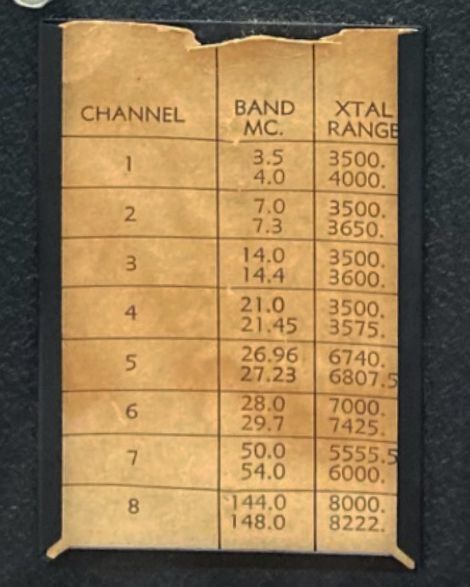

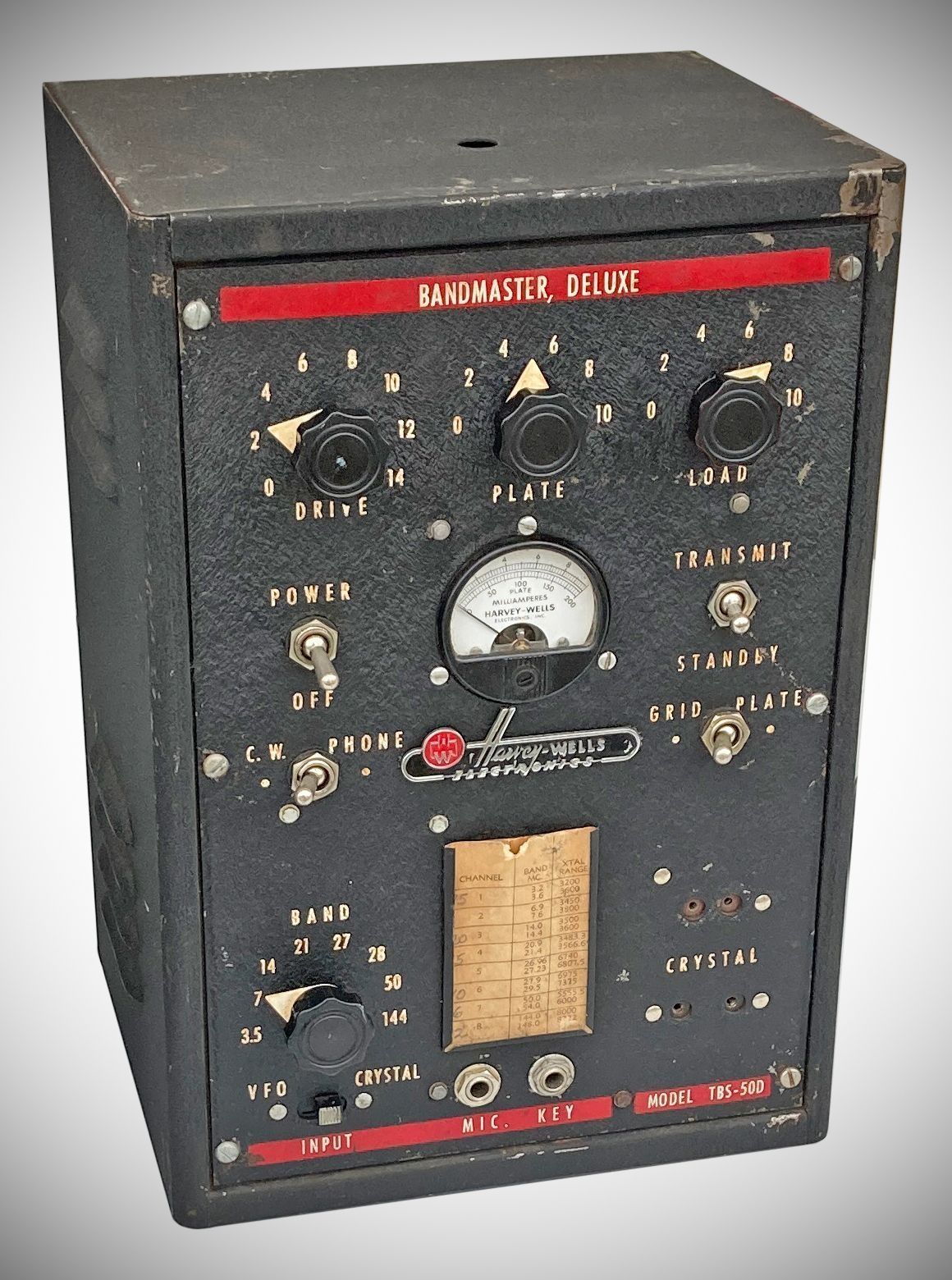

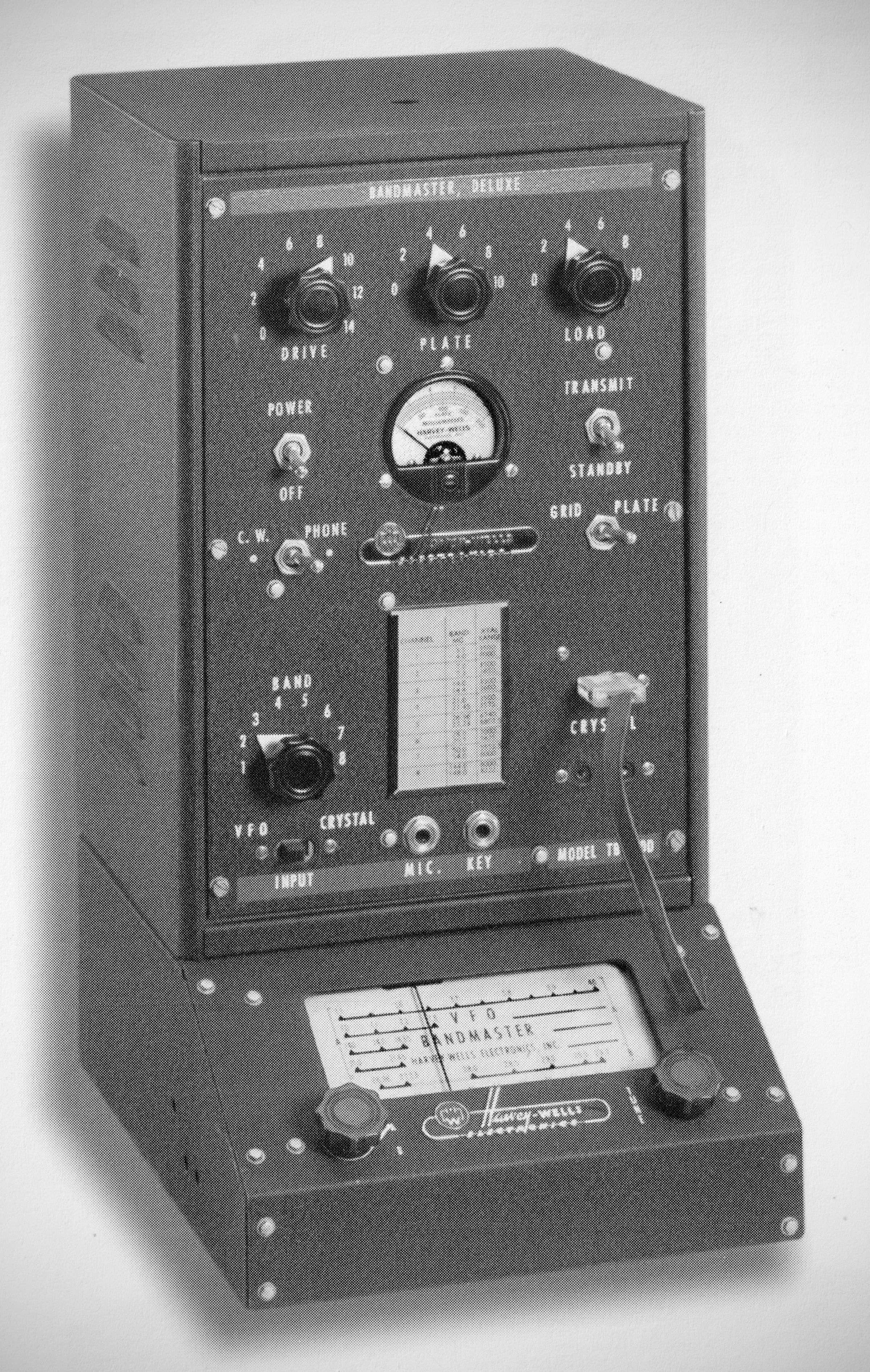

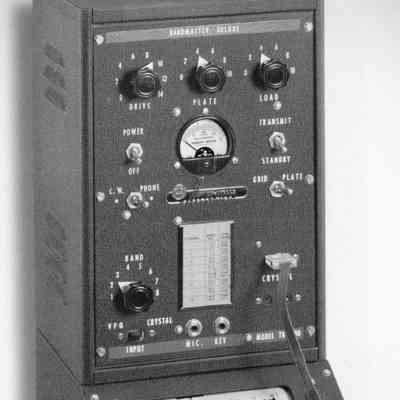

The TBS-50 Bandmaster Deluxe covered not only 80-10 meters but the 6 and 2 meter bands as well. Power supply options enabled the transmitter to be used in either a fixed-station or mobile setup.
The "B" ($87.50) and "C" ($117.50) versions, both released in 1950, were named "Bandmaster Junior" and "Bandmaster Senior" respectively.
The Senior version included a modulator, which was also sold separately and could be purchased to upgrade a Junior.
The "D" version ($137.50), also released in 1950, included everything in the "A," "B," and "C" versions and added crystal microphone amplifier (CMA-50, $22.00). The amp could be purchased separately to upgrade any of the other versions.

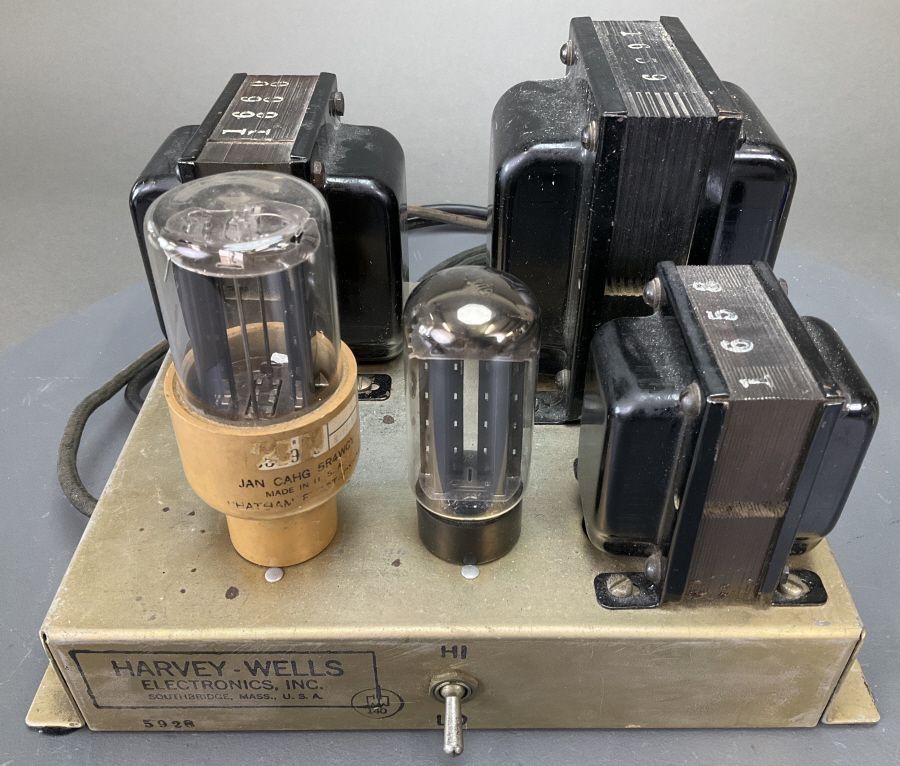

All versions require and external power supply. The APS-50 (120 VAC) or the VPS-50 (6 VDC) were designed specifically for the Bandmasters.
A dynamotor power supply (DPS-50) was also available ($87.50).
