The synthesizer may be plugged into the headphone or speaker jack of a receiver or other monaural audio signal source and provides stereo outputs for headphones, power amplifiers, or speakers.

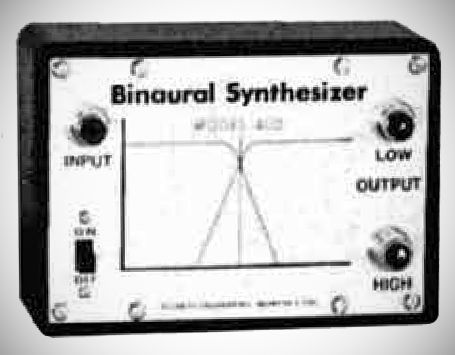

The model 400 Binaural Synthesizer is available as a complete unit as a partially assembled unit including an assembled and tested PC board or as a kit which includes a pre-drilled, plated, glass-epoxy PC board.
The model 400 provides a sharp 24 dB per octave channel separation, four poles in each channel, for a good stereo effect. The unit employs 741 integrated-circuit op amps rather than multiple units for simple, easy-to-find attachment points.
The PC board contains extra traces for resistor trimming, if desired. The cross-over frequency is 750 ±50 hertz, input impedance is 2000 ohms, and the unit may be powered from any supply that will provide negative or positive voltage between 4 and 15 volts DC. In operation, the synthesizer typically draws 5 to 10 mA.

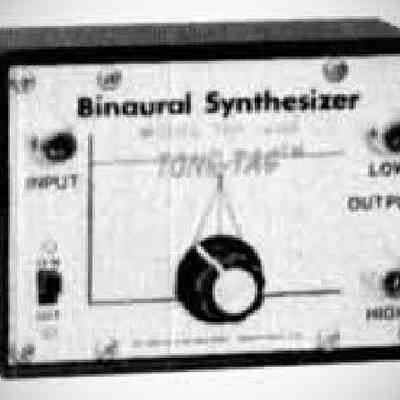

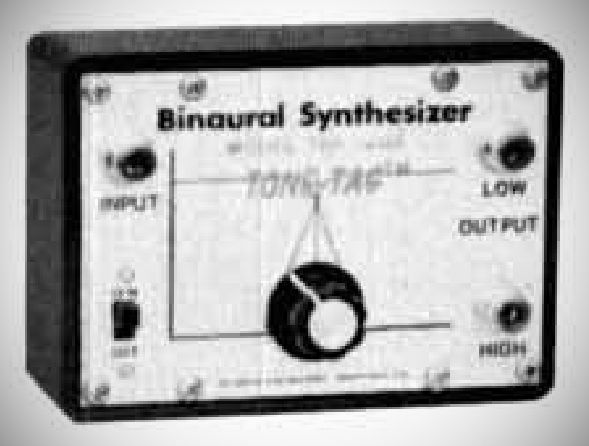

The model 700, introduced in July 1977, worked the same but included the Tone-Tag function first made available in the model 1100.
