Note
The 2000A was the original version, There was no plain 2000.
QST, Mar 1963, p. 166. (2000A)
QST, Jun 1964, p. 179. (2000B)
QST, Oct 1966, p. 176. ("B" in kit form)
QST, Sep 1967, p. 145. (2000C)
QST, Feb 1968, p. 140.
QST, Feb 1969, p. 124.

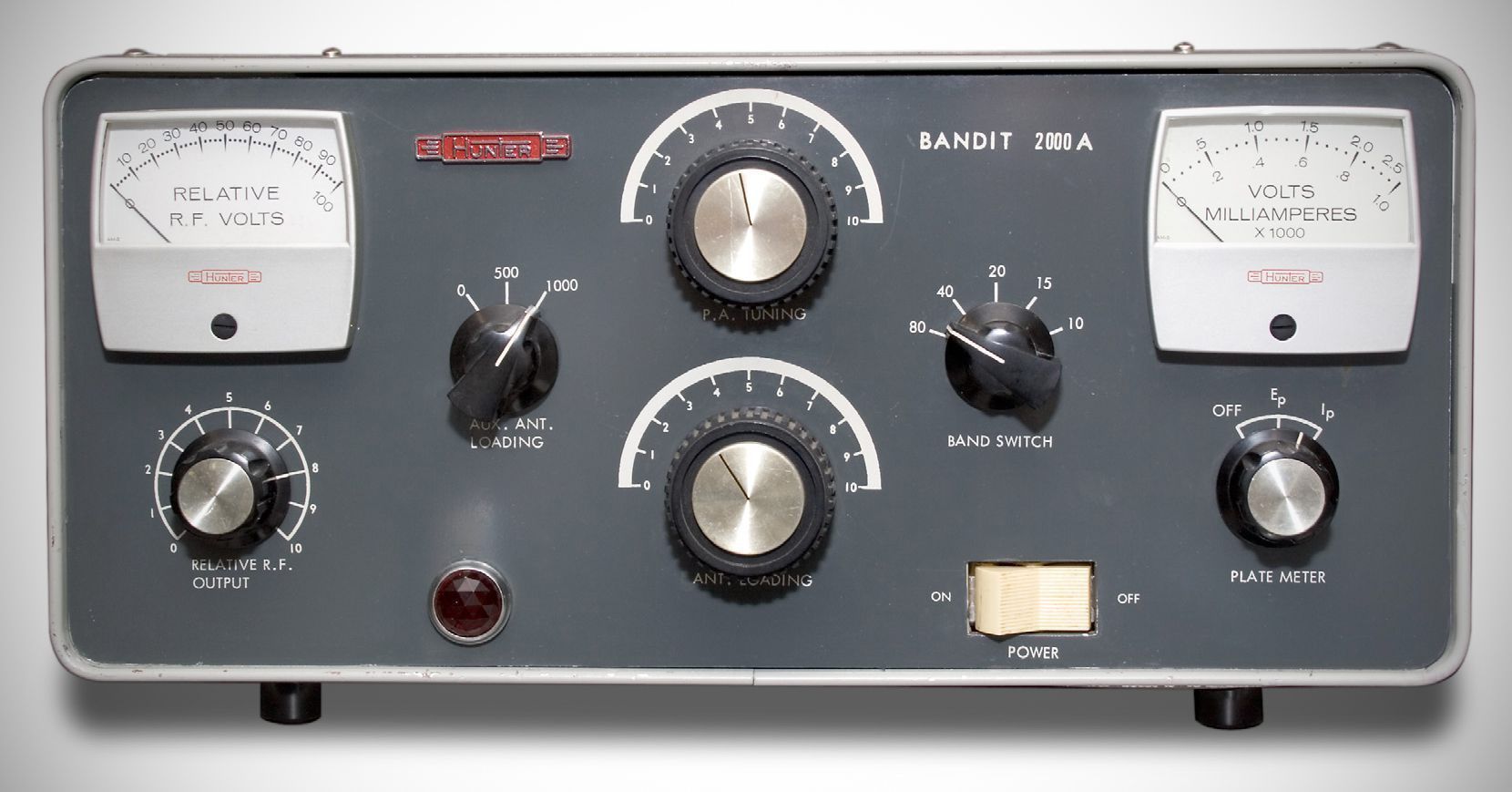

The Bandit 2000A used four 572A tubes in grounded grid. It covered 80–10 meters and required 100 watts drive for 2000 watts PEP input. The amp’s internal power supply operated from 115 or 230 VAC.

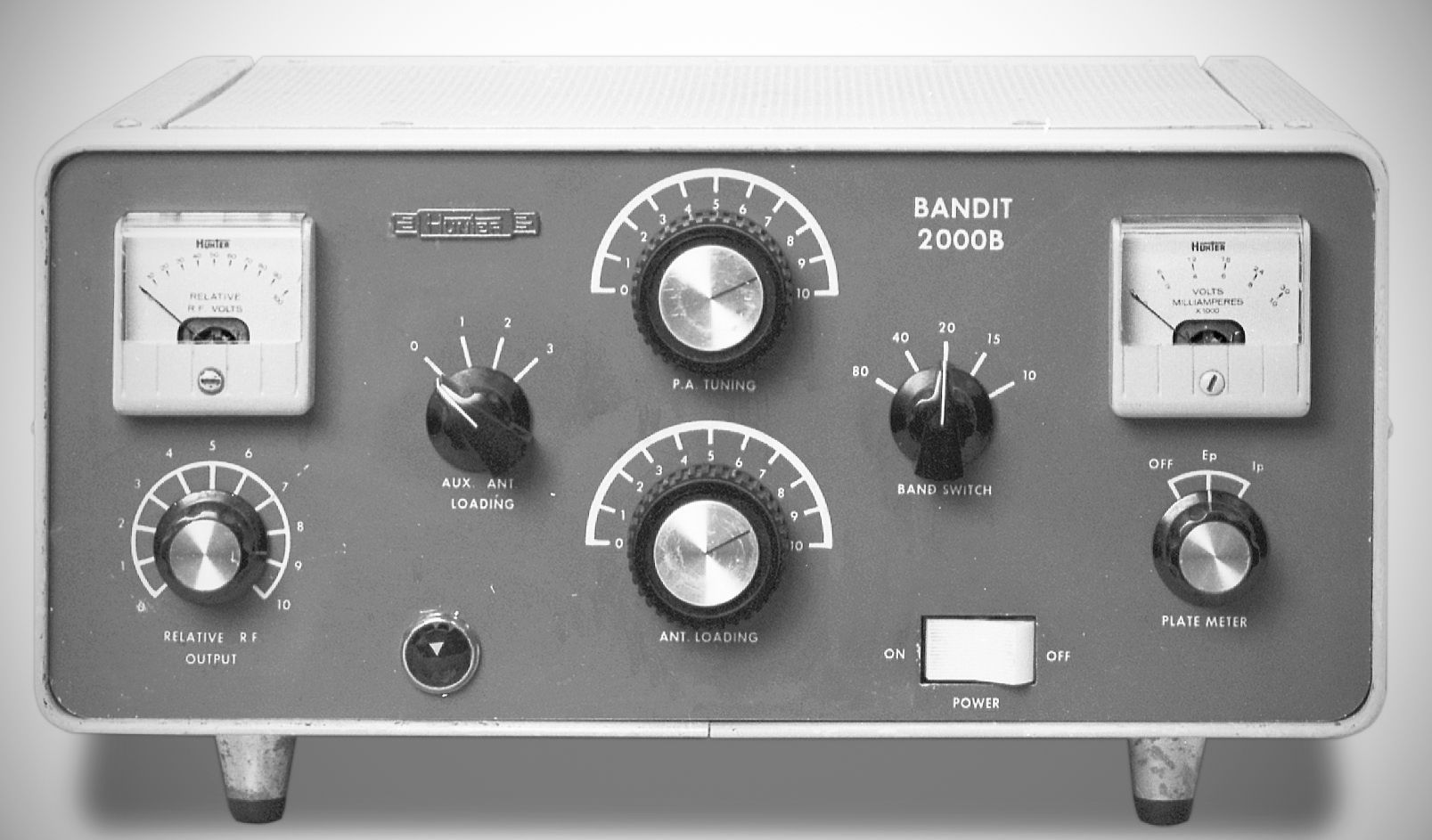

The Hunter Bandit 2000B switched to four 572B tubes, and made some changes or the power supply including the addition of a relay and a resistor to reduce idling current. The "B" model power ratings were the same as the "A" model.
The 2000C was a major redesign using a pair of 8163 / 3-400Z tubes, and attendant reworking of the power supply. The "C" model power ratings were the same as the "A" and "B" models.

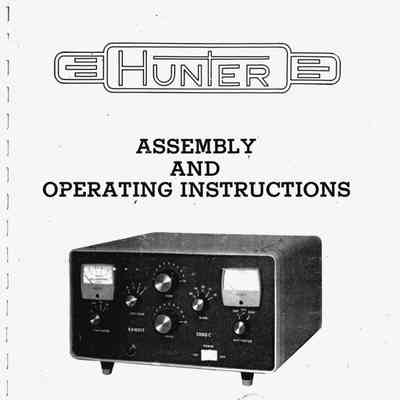

The 2000C manual was the only one to list full specifications, which may safely be assumed to be nominally the same for all versions.
Specifications (2000C)
– Maximum Power Input:
2,000 watts PEP SSB
1,000 watts CW, AM, RTTY
– Band Coverage: 80, 40, 20, 15, and 10 meters
– Duty Cycle: 50%
– Modulation: SSB, CW, RTTY, AM
– 3rd Order Distortion: –30 dB
– 5th Order Distortion: –50 dB
– Excitation Required: 100 watts
– Input Impedance: 50 to 72 ohms
– Output Impedance: 50 to 72 ohms
– Maximum VSWR Allowed: 2:1
Power Requirements:
115 VAC, 50–60 cps, at 20 amps
230 VAC, 50–60 cps, at 10 amps
