The Icom IC-7600 is a high-performance HF/50 MHz transceiver designed with a double-conversion superheterodyne system and dual 32-bit floating-point DSP units. It is the successor to the IC-756PROIII, incorporating technology derived from the flagship IC-7800 and IC-7700 models to achieve a +30dBm third-order intercept point (IP3) and a 104dB receiver dynamic range.
Key Features
– Dual DSP Architecture: Utilizes two separate 32-bit Texas Instruments DSP chips—one dedicated to the transmitter/receiver and the other to the high-resolution real-time spectrum scope.
– High-Resolution Spectrum Scope: Features a dedicated DSP for fast, accurate sweep speeds and high resolution, including center and fixed frequency modes.
– Built-in Digital Modes: Includes a built-in Baudot RTTY and PSK31 modulator/demodulator, allowing for operation by simply connecting a USB keyboard.

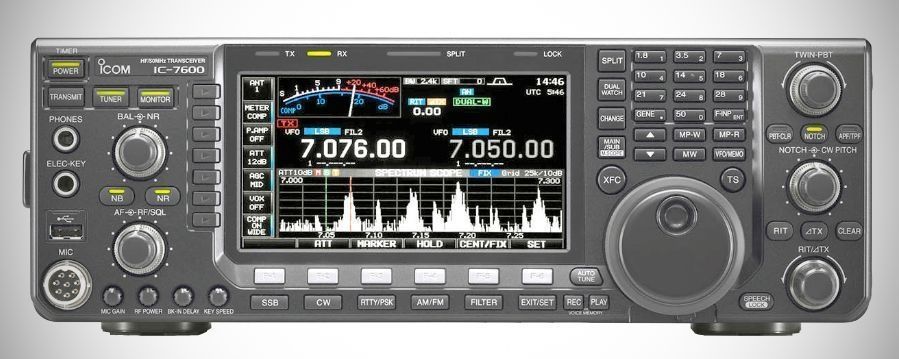

– Advanced Filtering: Three built-in first IF (roofing) filters (3 kHz, 6 kHz, and – Large Color Display: A 5.8-inch WQVGA TFT display provides an ultra-wide viewing angle and uses a long-life LED backlight.
– Digital Twin PBT: Allows electronic narrowing of the IF passband by moving the IF frequencies to eliminate interference.

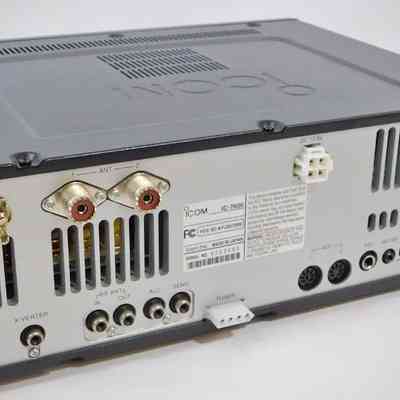

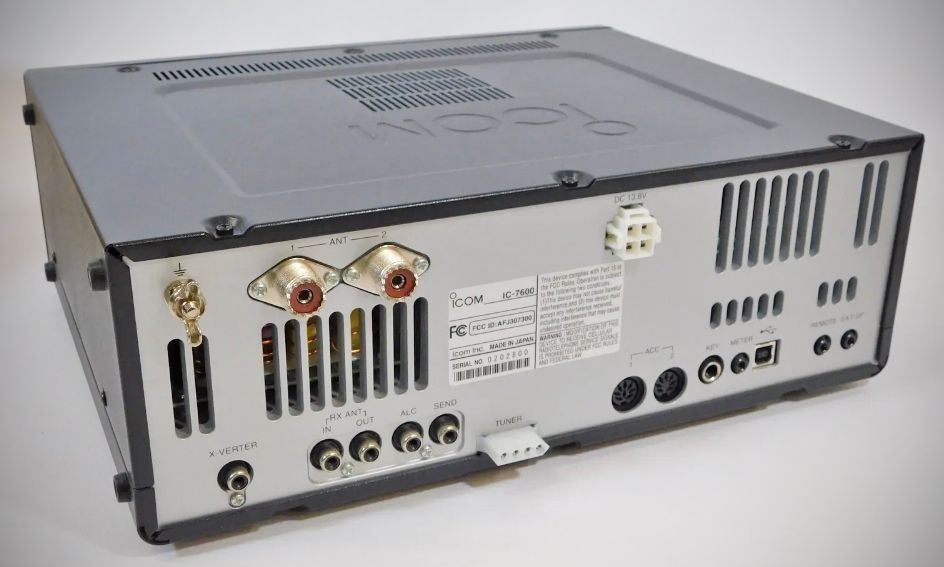

– USB Connectivity: Dual USB ports (front and rear) support PC control, digital audio, and external keyboard or flash drive connections.
– Dual AGC Loops: Managed by the DSP to prevent strong adjacent signals from "pumping" the AGC, ensuring maximum dynamic range.
Specifications
Frequency Coverage:
Rx: 0.030–60.000 MHz
Tx: 1.800–54.000 MHz (Amateur bands only)
– Operating Modes: USB, LSB, CW, RTTY, PSK31, AM, FM
– Memory Channels: 101 channels (99 regular, 2 scan edges)
– Antenna Impedance: 50 Ω (unbalanced)
Transmitter
Output Power:
SSB/CW/RTTY/PSK31/FM: 2–100 W
AM: 1–30 W
_ Modulation System
SSB: Digital PSN;
AM: Digital Low Power;
FM: Digital Phase
– Spurious Emissions: Less than -50 dB (HF); Less than -63 dB (50 MHz)
– Carrier Suppression: More than 40 dB
Receiver
– Receiver System: Double-conversion superheterodyne
– Sensitivity: (10dB S/N)
SSB/CW: 0.15 μV (1.8–29.99 MHz); 0.12 μV (50 MHz)
AM: 2.0 μV (1.8–29.99 MHz); 1.6 μV (50 MHz)
– Selectivity (Sharp)
SSB: > 2.4 kHz/–6 dB
CW: > 500 Hz/–6 dB
RTTY: > 350 Hz/–6 dB
– AF Output Power: > 2.0 W at 10% distortion with an 8 Ω load
– Antenna Tuner Matching Range:
HF: 16.7–150 Ω (unbalanced)
50 MHz: 20–125 Ω (unbalanced)
Power Supply: 13.8 V DC ±15% (negative ground)
Power Consumption
Tx (Max): 23 A
Rx (Max Audio): 3.5 A
Rx (Standby): 3.0 A
