Note

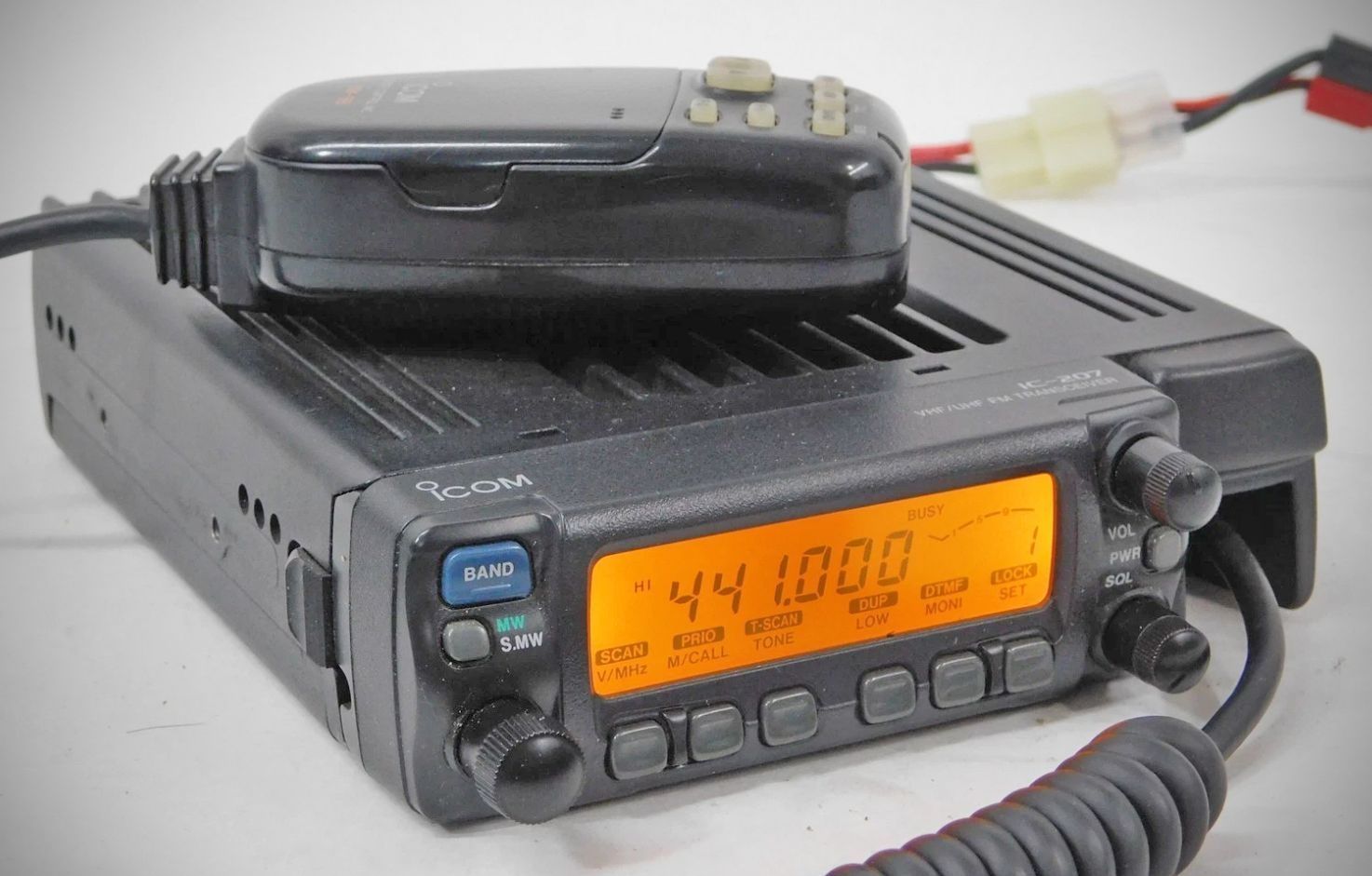

The Icom IC-207H is a compact VHF/UHF FM transceiver designed for mobile operation. It provides dual-band coverage for the 144 MHz and 430(440) MHz bands and features a detachable front panel for flexible installation in various vehicle locations. The unit is built to handle high-power transmission while maintaining a user-friendly interface with a clear function display and multi-purpose controls.
The model was phased out in the early 2000s as it was succeeded by newer models like the IC-208H.
Key Features
– Dual-Band Operation: Easily toggles between 144 MHz and 430(440) MHz amateur bands.
– Detachable Front Panel: The front panel can be removed and mounted separately from the main body for custom vehicle installations.
– Multiple Power Output Levels: Offers four selectable transmit power levels: Low (5 W), Mid-Low (10 W), Mid-High (20 W), and High (50 W on VHF; 35 W on UHF).
– Packet Radio Ready: Includes a dedicated 6-pin mini DIN data jack on the rear panel that supports both 1200 bps and 9600 bps packet operation.
– Advanced Scanning and Memory: Features various scan types (including tone scan) and multiple memory options such as scratch pad memories and call channels.
– Subaudible Tone Functions: Built-in subaudible tone encoder and decoder for repeater access, pocket beep, and tone squelch operations.
– Safety and Maintenance Tools: Includes a time-out timer (TOT), auto power-off function, and a cooling fan setting to protect the transceiver during extended use.
Specifications
– Antenna Impedance: 50 Ω (requires a dual-band antenna with a PL-259 connector).
– Audio Output Impedance: 4–8 Ω.
Power Supply Requirement: 13.8 V DC (±15%).
Currant drain (Tx):
VHF (144 MHz): 12.0 A
UHF (430/440 MHz): 11.0 A
Currant drain (Rx):
Maximum Audio: 1.0 A
Standby (Squelched): 0.8 A
Operating Temperature Range: −10∘C (+14∘F) to +60∘C (+140∘F).
Standard Accessories: Includes an HM-98 (or HM-96) microphone, DC power cable, mobile mounting bracket, and necessary mounting hardware.
