Note

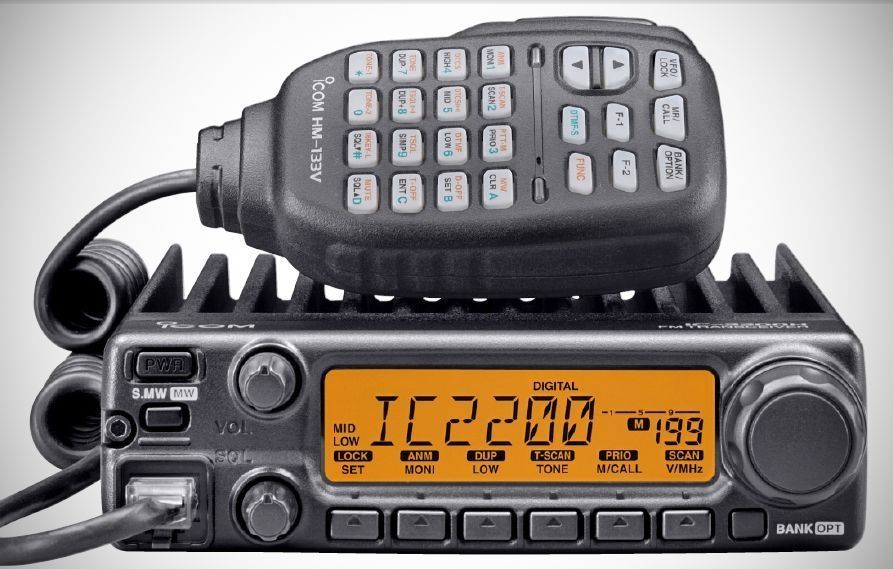

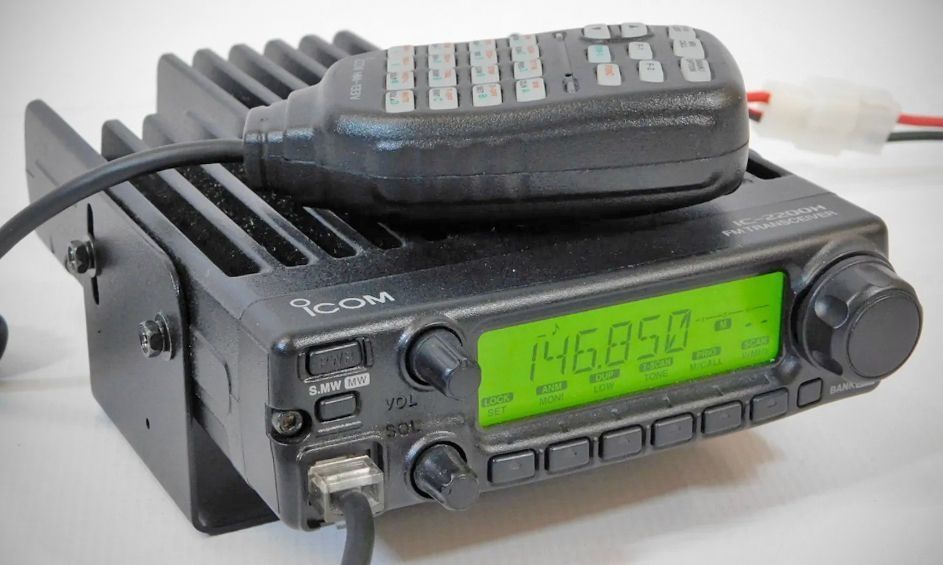

The IC-2200H is known for its "all heat sink" design, which allows it to provide a stable 65W of output power without the need for a cooling fan. It features a simple, clean front-panel layout with a large, selectable dual-color (amber or green) LCD. It was specifically designed to be "digital ready," allowing users to add D-STAR voice and data capabilities via an optional internal plug-in unit.
Features
– High Output Power: Delivers up to 65 W of transmit power.
– Dynamic Memory Management: Includes 207 memory channels, including 6 scan edges and 1 call channel. These can be organized into 10 banks (A to J) for easy access.
– Multiple Squelch Types: Standard tone squelch and DTCS squelch are included. It also features an S-meter squelch and a squelch attenuator to reduce interference.
– Digital Capabilities: Supports an optional UT-118 digital unit for digital voice and slow data communication, including GPS position data transmission when connected to a GPS receiver.
– Durable Design: Designed to meet high-quality standards and tested for durability in various environments.
– Remote Control Microphone: Supplied with the HM-133V microphone, allowing for full remote control of the transceiver's functions and direct frequency entry.
– Scan Functions: Offers various scanning modes, including full scan, programmed scan, and priority watch.
Specifications
General:
– Frequency Range: 144 MHz VHF band.
– Mode Selection: Supports AM and FM modes (digital mode requires optional unit).
– Operating Temperature Range: −10∘C to +60∘C (+14°F to +140°F).
– Frequency Stability: Built for stable operation across the temperature range.
Transmitter:
– Output Power: High (65 W), Mid-high (25 W), Mid-low (10 W), and Low (5 W) selectable levels.
– Modulation System: Variable reactance frequency modulation.
– Maximum Frequency Deviation: ±5.0 kHz (Wide) / ±2.5 kHz (Narrow).
Receiver:
– Receive system : Double-conversion superheterodyne
– Intermediate frequencies : 1st: 21.7 MHz, 2nd: 450 kHz
– Sensitivity (at 12 dB SINAD) : 0.14 μV typical
– Squelch sensitivity (threshold) : 0.1 μV typical
– Selectivity :
[Wide] More than ±6 kHz/6 db; Less than ±14 kHz/60 dB
[Narrow]‡ More than ±3 kHz/6 dB: Less than ±9 kHz/55 dB
– Audio Output: Clear audio output supported by an external speaker jack.
– Squelch System: Noise squelch, S-meter squelch, and tone/DTCS squelch.
– Ext. speaker connector : 3-conductor 3.5 (d) mm (1⁄8″)/8 Ω
– Ext. Data connector : 3-conductor 2.5 (d) mm (1⁄10″)
Power Supply Requirement: 13.8 V DC (±15%) with at least 15 A capacity.
