Note

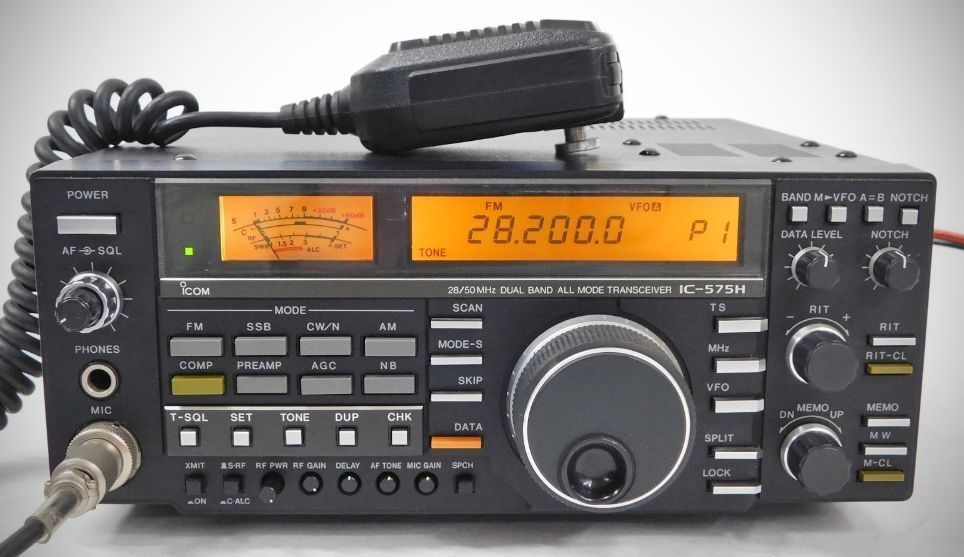

The IC-575 series consists of compact dual-banders that simplify installation for mobile and portable use by providing both 10-meter (28MHz) and 6-meter (50MHz) capabilities in a single unit. They support multiple operating modes, including SSB (USB/LSB), CW (Normal/Narrow), FM, and AM. The transceivers are built for high performance, featuring a high-sensitivity receiver and a CPU for advanced control.

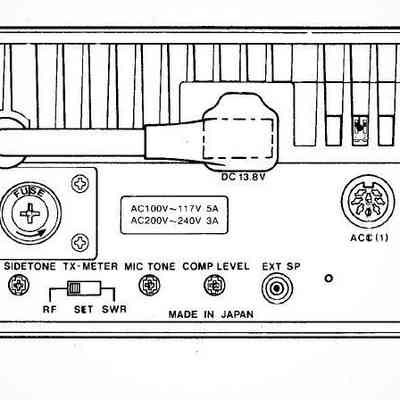

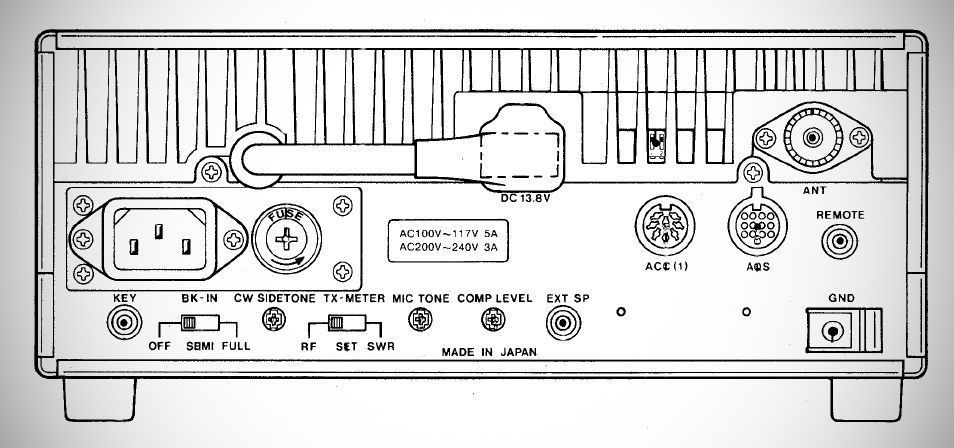

Note that the IC-575A includes a built-in AC power supply, while the IC-575H does not.
Features
– Direct Digital Synthesizer (DDS): Provides rapid lockup times and fast transmit/receive switching, making the units ideal for data modes like packet and AMTOR.
– Broad Frequency Coverage: In addition to the amateur bands, the receiver provides continuous coverage from 26MHz to 56MHz, allowing for public service broadcasting monitoring.
– Memory: Includes 99 programmable memory channels that store frequency, mode, subaudible tones, duplex direction, and offset information.
– Scanning: Offers four separate scanning functions: Memory Scan, Programmed Scan, Selected Mode Memory Scan, and Skip Scan.
– Receiver Performance: Incorporates a built-in RF preamplifier using high-grade J-FETs, a balanced-type mixer for high dynamic range, and a notch filter system to reduce single-tone noise.
– Full Break-in: Supports both semi and full break-in for CW operators.

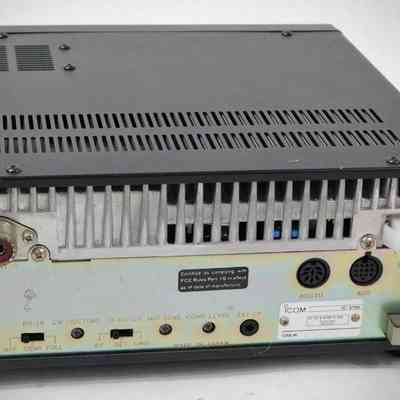

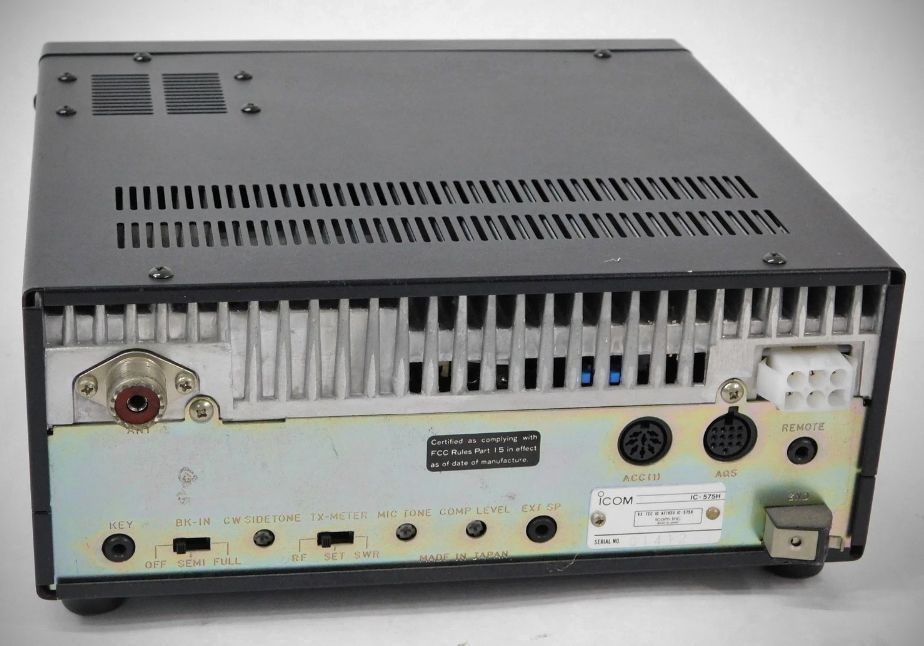

– Computer Interface: Features a serial port (CI-V) on the rear panel for full remote control of frequency and mode via a personal computer.
Specifications
– Frequency Range:
Transmit: 28MHz and 50MHz bands.
Receive (Continuous): 26MHz to 56MHz.
– Operating Modes: FM, SSB (USB/LSB), CW (Normal/Narrow), and AM.
– RF Output Power (IC-575A): 10W for SSB, CW, and FM; 4W AM
– RF Output Power (IC-575H): 100W for SSB, CW, and FM; 40W AM
– Output Transistors: 2SC2782 x 2 (Final stage).
– Receiver Sensitivity: Enhanced by a 10dB gain RF preamplifier.
– Memory Backup: Lithium battery backup with a life of up to five years.
– Display: Liquid Crystal Display (LCD) with soft orange illumination.
– Power: (IC-575A) 120VAC, 50/60 HZ, or 13.8 VDC (nominal)
– Power: (IC-575H) 13.8 VDC (nominal)
– Current drain: IC-575A
Transmitting: 5.0 A.
Receiving (Max Audio): 1.1 A.
– Current drain: IC-575H
Transmitting: 20.0 A.
Receiving (Max Audio): 1.5 A.
IC-575A: $1,129.00
IC-575H: $1,499.00
