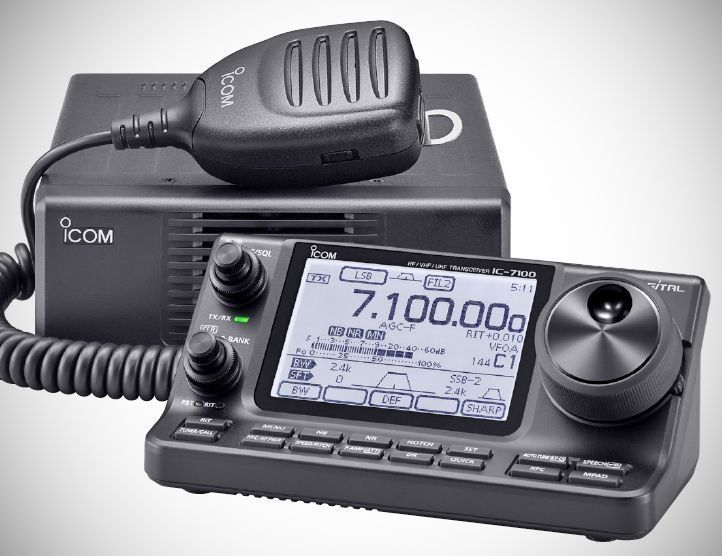

he Icom IC-7100 is an all-mode desktop and mobile transceiver that covers the HF, VHF, and UHF amateur bands. It is distinguished by its unique separate control head, which features a large, slanted resistive touch-screen display for intuitive operation, even while wearing gloves.
The IC-7100 integrates traditional analog performance with modern digital technology, specifically supporting D-STAR (Digital Smart Technology for Amateur Radio) for digital voice and data communication. Its core performance is driven by a high-performance 32-bit floating-point IF DSP, which provides features like digital IF filtering, twin passband tuning (PBT), and noise reduction across all bands.

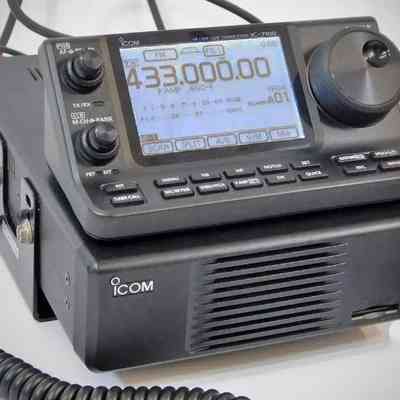

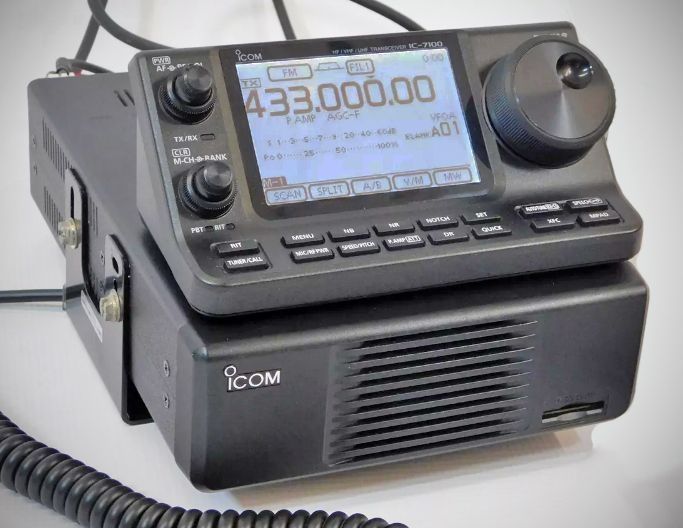

The radio's design consists of two main parts: a compact main RF unit and a remote-control head. The control head includes a built-in speaker and jacks for a microphone, CW key, and headphones. It also features a built-in SD card slot for saving personal settings, logging data, and recording voice communications.
Specifications
General
– Frequency Coverage (USA Version):
Receive: 0.030–199.999 MHz and 400.000–470.000 MHz.
Transmit: 1.800–1.999, 3.500–3.999, 5.255–5.405, 7.000–7.300, 10.100–10.150, 14.000–14.350, 18.068–18.168, 21.000–21.450, 24.890–24.990, 28.000–29.700, 50.000–54.000, 144.000–148.000, and 430.000–450.000 MHz.
– Modes: USB, LSB, CW, RTTY, AM, DV (D-STAR), FM, and WFM (receive only).
– Memory Channels: 505 total (495 regular, 4 call, 6 scan edges) plus 900 D-STAR repeater channels.

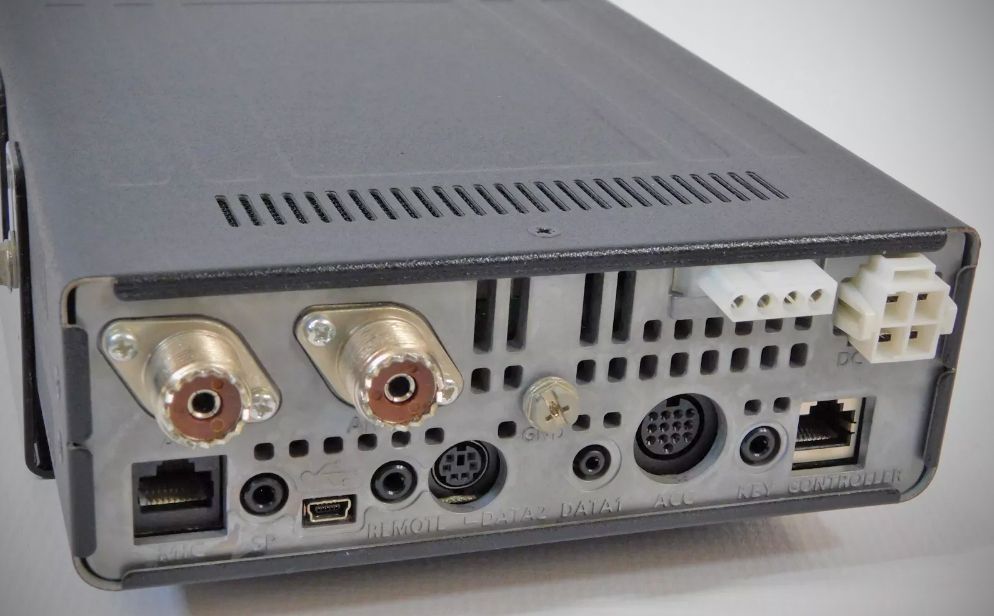

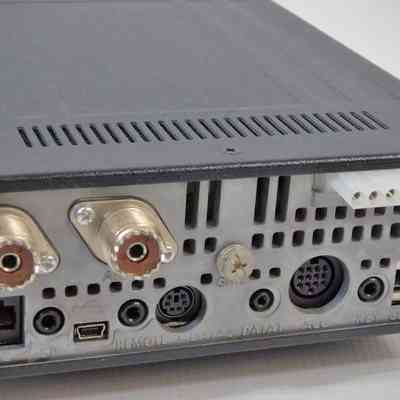

– Antenna Connectors: Two SO-239 (50Ω); one for HF/50MHz and one for VHF/UHF.
Transmitter
– Output Power:
SSB/CW/RTTY/FM/DV:
HF/50MHz: 2–100 W
144MHz: 2–50 W
430/440MHz: 2–35 W
AM: 1–30 W (HF/50MHz).
_ Modulation System:
Digital P.S.N. (SSB)
Digital Low Power (AM)
Digital Phase (FM)
GMSK Digital Phase (DV)
_ Spurious Emissions: Less than −50 dB (HF), −63 dB (50MHz), −60 dB (VHF/UHF).
Receiver
– Receiver System: Triple-conversion superheterodyne (SSB/CW/AM/FM/RTTY/DV); Double-conversion superheterodyne (WFM).
– Intermediate Frequencies (IF): 124.487 MHz, 455 kHz, 36 kHz (Standard modes).
– Sensitivity (Preamp ON):
SSB/CW (2.4kHz BW):
0.15 µV (1.8–29.9 MHz)
0.12 µV (50 MHz)
0.11 µV (VHF/UHF).
AM (6kHz BW): 2.0 µV (1.8–29.9 MHz), 1.0 µV (50/VHF/UHF).
FM (15kHz BW): 0.25 µV (50 MHz), 0.18 µV (VHF/UHF).
– Selectivity (Sharp filter):
SSB: More than 2.4 kHz/−6 dB; Less than 3.4 kHz/−40 dB.
CW: More than 500 Hz/−6 dB; Less than 700 Hz/−40 dB.
– Audio Output Power: More than 2.0 W (8Ω load at 10% distortion).
Power Requirement: 13.8 V DC ±15%.
Current Drain (at 13.8V DC):
Transmit: 22 A (HF/50MHz), 16 A (VHF/UHF).
Receive: 1.2 A (Max audio), 0.9 A (Standby).
