Note

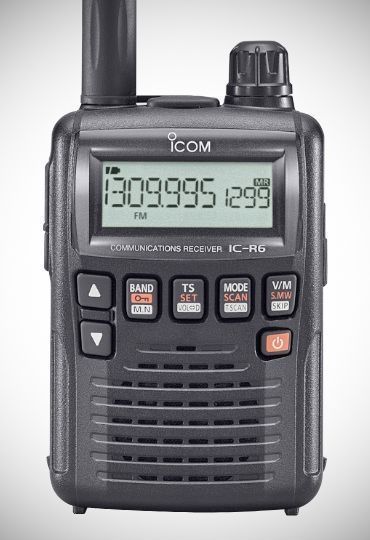

The Icom IC-R6, is a compact, handheld communications receiver. Known for its ultra-wideband coverage and exceptionally fast scanning speeds, it is a favorite for aviation enthusiasts, amateur radio monitors, and emergency kit setups. It is designed for AM/FM and WFM reception. It cannot receiver SSB or CW.
Features
– Ultra-Wideband Coverage: Receives a massive range of frequencies from 100 kHz to 1309.995 MHz, covering everything from AM/FM broadcasts and shortwave to aviation and utility communications.
– High-Speed Scanning: Features a "search machine" capability that scans up to 100 channels per second in VFO mode, allowing you to find active signals across a wide spectrum quickly.
– Massive Memory Capacity: Includes 1,300 regular memory channels, 50 scan edges, and 200 auto-write memories. Channels can be organized into 22 memory banks.
– Voice Squelch Control (VSC): A smart squelch that opens only when a modulated voice signal is detected, ignoring unmodulated noise, data bursts, or beacons.
– Superior Battery Life: Optimized for efficiency, providing up to 15 hours of continuous reception on a single charge of the supplied Ni-MH batteries.

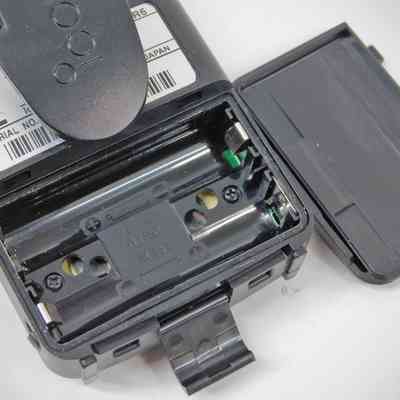

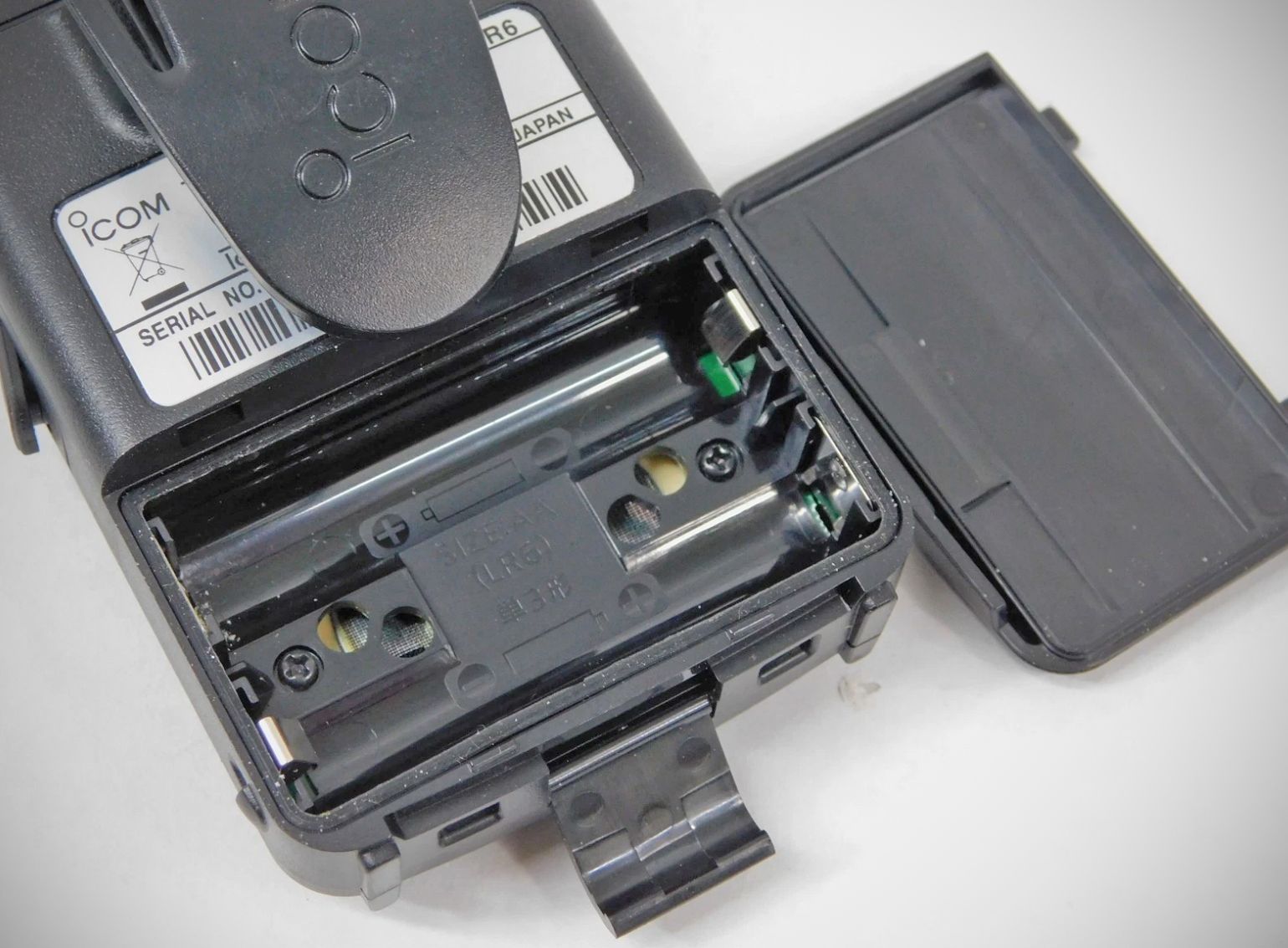

– Multiple Power Options: Can be powered by two AA alkaline batteries, rechargeable Ni-MH cells, or an external DC power source (via AC adapter or cigarette lighter cable).
– Built-in Antennas: Includes a ferrite bar antenna for AM broadcast reception and uses the earphone cord as an antenna for FM and aviation bands.
– Durability: Constructed to meet MIL-STD-810G standards for shock and vibration, with an IPX2 drip-resistant rating.
Specifications
– Frequency Range 0.100–1309.995 MHz (Cellular blocked in US versions)
– Modes: AM, FM, WFM
Memory Channels: 1,550 total (1,300 regular, 200 auto-write, 50 scan edges)
Frequency resolution : 5, 6.25, 8.33*, 9*, 10, 12.5, 15, 20,
25, 30, 50, 100, 125, 200 kHz
* Selectable depending on the operating frequency band.
Antenna Impedance: 50 Ω (SMA Connector)
Operating Temp.: -10°C to +60°C (+14°F to +140°F)
Reference frequency stability : ±1.0 ppm (+25°C)
Power supply requirement : 2 AA (R6) alkaline cells
2 AA (R6) Ni-MH cells
4.5 to 6.3 V DC (with AC adapter or CP-18A/E)
Current drain (backlight OFF at 3.0 V DC):
rated audio 130 mA typical
receive standby 65 mA typical
power save 30 mA typical
charging 140 mA typical
