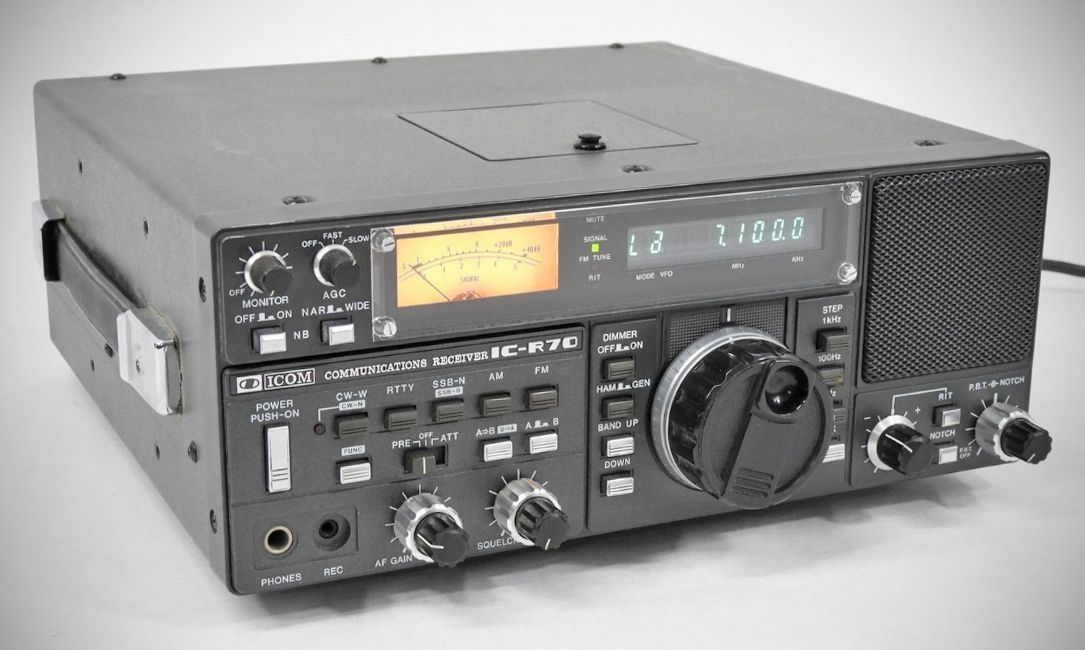

The ICOM IC-R70 is a high-performance communications receiver designed for both amateur radio and general shortwave listeners. It operates as a quadruple conversion superheterodyne system (triple conversion for FM) that utilizes an up-conversion system with a high-side IF and a microcomputer control system. This design allows for seamless reception across all amateur bands and general coverage from 100KHz to 30MHz.
Features
– General Coverage Capability:100KHz to 30MHz, divided into thirty 1MHz segments.
– Dual Digital VFO: Features a 10Hz step digital PLL synthesizer with two separate VFOs that can be used independently on any band.
– Advanced Tuning Options: Offers three selectable tuning resolutions (10Hz, 100Hz, and 1KHz) via tuning rate select switches.
– Pass-Band Tuning (PBT): Includes a built-in PBT system that allows continuous adjustment of the IF pass-band to eliminate nearby signal interference.
– High-Level Components: Uses a wide-band push-pull RF amplifier with low-noise junction FETs and a high-level Double Balanced Mixer for wider dynamic range and better spurious response rejection.
– Flexible Interference Rejection**: Equipped with a notch filter, a noise blanker with selectable timing (Normal/Wide), and an adjustable RIT (Receiver Incremental Tuning) of ±800Hz.
– Operational Convenience: Includes a 6-digit 100Hz frequency readout, a multi-function S-meter, and a memory switch to retain frequencies when the main power is off.
Specifications
– Frequency Coverage: 100 kHz–30.0MHz; includes all Ham bands from 1.8 MHz to 30 MHz.
– Modes: SSB (USB, LSB), CW, RTTY, AM, and FM (with optional unit).
– Receiving System: Quadruple conversion superheterodyne (Triple for FM).
– Intermediate Frequencies: 1st: 70.4515MHz; 2nd: 9.0115MHz; 3rd: 455KHz; 4th: 9.0115MHz.
– Sensitivity (Preamp ON):
SSB/CW/RTTY: < 0.15 uV (0.1–1.6 MHz: 1.0 uV) for 10dB S+N/N
AM: < 0.5 uV (0.1–1.6 MHz: 3 uV)
FM: < 0.3 uV for 12dB SINAD.
– Selectivity
SSB/CW/RTTY: 2.3KHz at –6dB;
CW-N/RTTY-N: 500Hz at –6dB;
AM: 6KHz at –6dB.
– Frequency Stability: < 250Hz (1–60 mins after switch-on); < 50Hz after 1 hour.
– Audio Output: More than 2 Watts into 8 ohms.

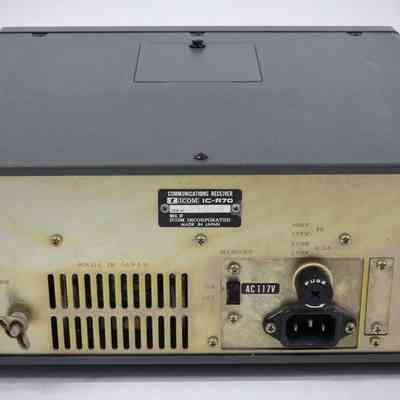

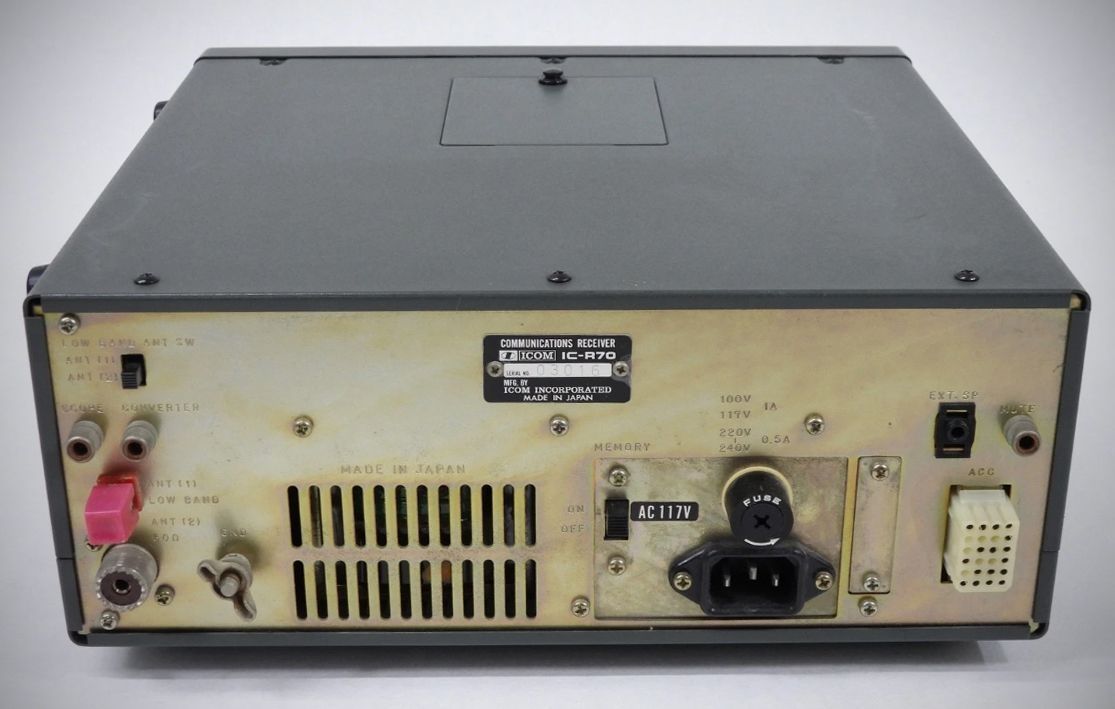

– Antenna Impedance: 50 ohms unbalanced (Single wire usable for 0.1–1.6MHz).
– Power Requirements: 117V or 235V AC ±10% (50–60Hz); 30VA.
|
