Note

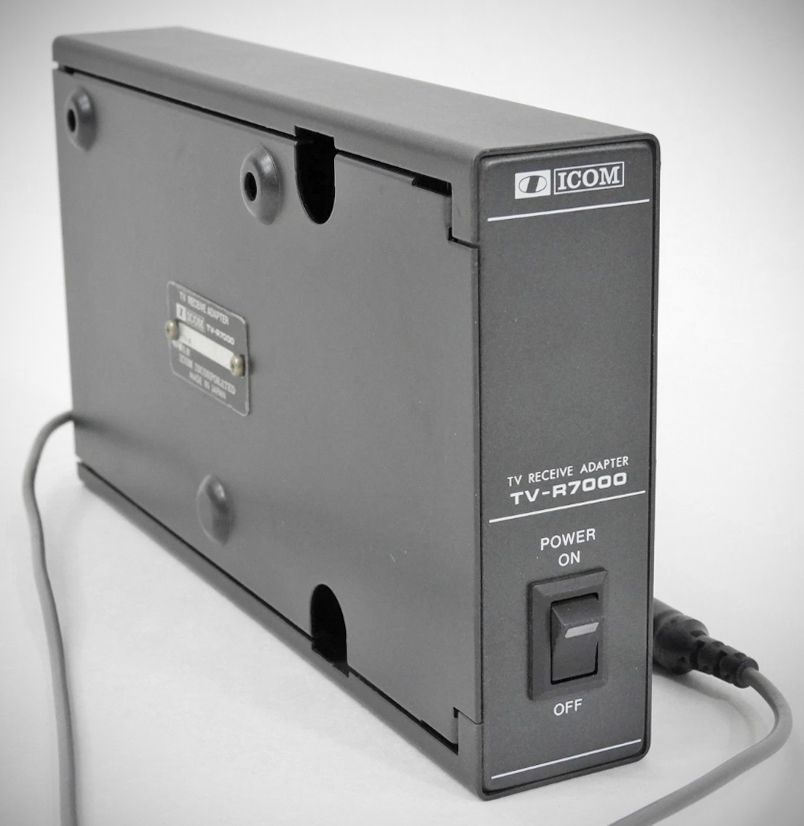

The Icom TV-R7000 TV receive adapter attaches to the side of the IC-R7000. With the addition of a composite video monitor (or regular TV with audio and video input jacks), the TV-R7000 can display video signals from your IC-R7000. This would include NTSC broadcast TV stations as well as any other TV signals including amateur fast-scan TV, video links, sports feeds, etc. Note: It is note compatible with modern digital TV.
Specifications
– Video carrier input frequency: 15.2MHz (U.S.A.), 16.2MHz (EUR./AUS.)
– Audio carrier input frequency: 10.7MHz
– Audio intermediate frequency: 4.5MHz (U.S.A.), 5.5MHz (EUR./AUS.)
– Video output level: 1Vp-p (75Ω)
– Audio output level: 0.3Vrms with 47kΩ load
Power supply requirements: 9V negative ground
Current drain: 80mA approx. (When no signal is received)
Dimensions: 35(35)mm(W) x 110(110)mm(H) x 200(214)mm(D) (Bracketed values include projections)
Weight: 620g
