Note
QST, Aug 1966, p. 7.
Specification s:

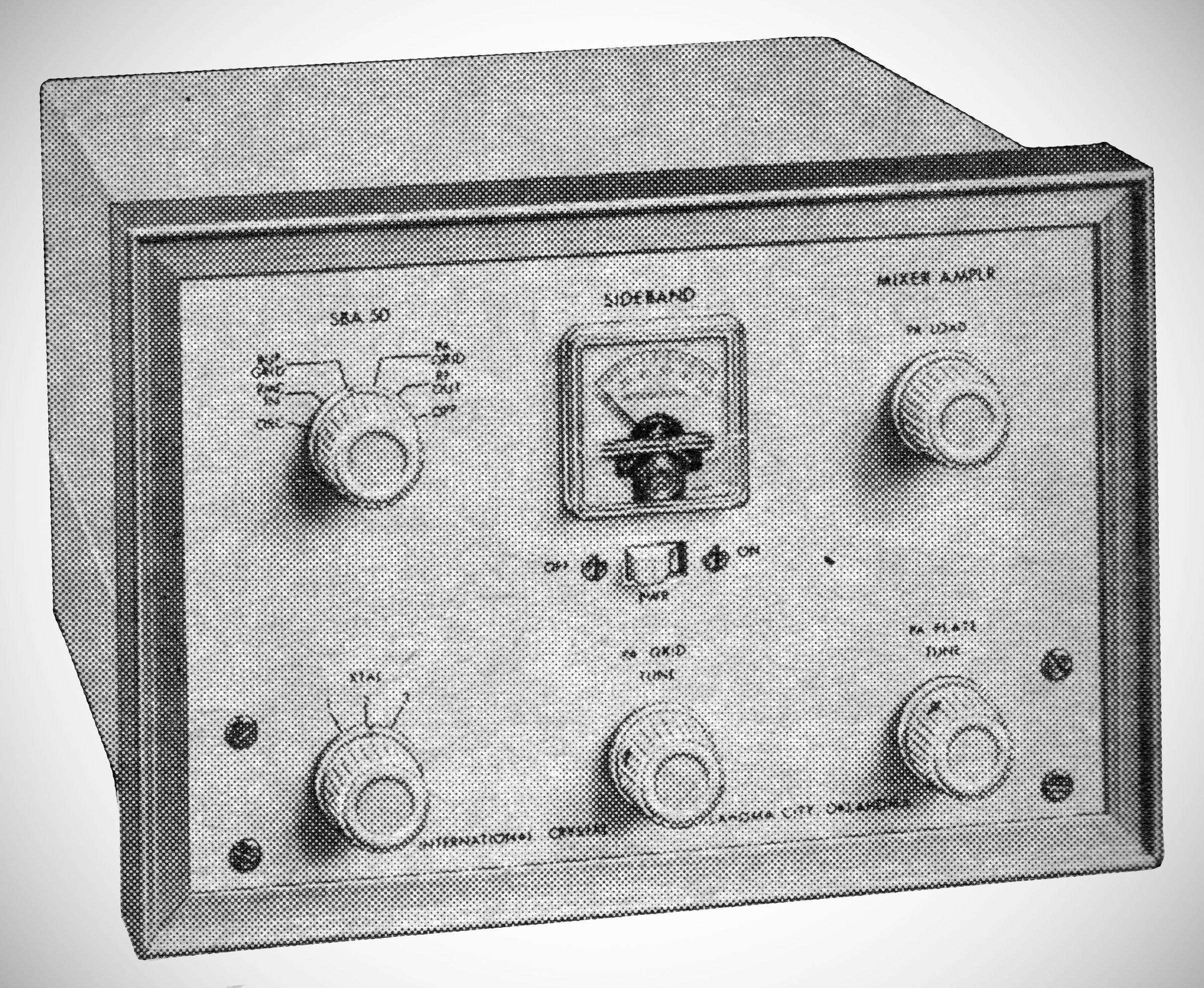

– Mixer-Amplifier: 50-54mc
Tubes:
– 6U8A Oscillator-Mixer
– 12BY7A Amplifier
– 6360 Linear power amplifier
– Drive: Requires 9mc sideband signal from SBX-9
– Output: SSB single tone 10 watts
– Crystals: Three positions, uses 3rd overtone 41-45mc range. Crystal frequency = final frequency -9mc
Accessory socket provided for connecting keying circuit to SBX-9. Comes with three crystals. Specify frequency when ordering. For operation on 117 vac 60 cycle power.
References
CQ, Nov 1966, p. 112.

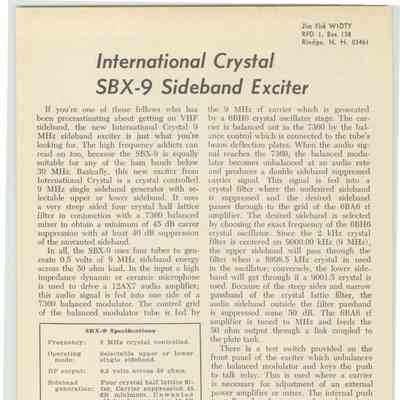

Review. 73, Feb 1967, p. 100.
