Note
This device is attributed to ITC, FDK, and KLM.

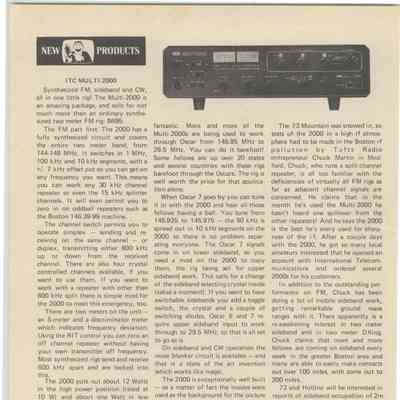

73, Dec 1974, p. 78. (ITC)
QST, Oct 1975, p. 123 (now KLM)
73, Oct 1975, p. 118. (still attributed to ITC)
73, Nov-Dec 1975, p. 73. (KLM)
QST, Jan 1976, p. 117. (KLM)
73, Apr 1976, back cover. (2000A)
QST, Jan 1977, p. 148. (2000A)
The "A" version added LSB.
Feastures
– PLL synthesizer covers 144-148 MHz in 10 kHz steps
– Separate VXO and RIT for full between-channel tuning
– Simplex or ±600 kHz offset for repeater operation
– Three selectable priority channels
– Multi-mode operation (CW/SSB/NBFM/WBFM)
– Built-in AC and DC power supplies, noise-blanker squelch and rf gain control
– Selectable 1W or 10W output
– Separate S-/power and frequency deviation meters
– Built-in test (call) tone and touch-tone provision
– Excellent sensitivity (.3 µV for 12 dB SINAD)
– "Superior" immunity to crossmodulation and intermodulation
Specifications
Receiver Section:
– Sensitivity: FM: 0.3uV for 12 dB SINAD, SSB: 1.0uV for 20 dB Quieting, 0.25uV for 10 dB S - N/N.
– Noise Figure less than 3 dB.
– Intermodulation: Third-order intermodulation products reduced more than 70 dB below one of two RF test signals within the RF passband.
– Crossmodulation: Better than 80 dB.
– Selectivity: FM: 15 kHz at -6 dB, Shape Factor 2.5:1 (6/60 dB), Ultimate rejection greater than 90 dB; SSB: 2.4 kHz at -6 dB, Shape Factor 2:1 (6/60 dB), Ultimate rejection greater than 95 dB.
– Spurious Signals: Reduced more than 70 dB.
– IF Rejection: Greater than 60 dB.
Transmitter Section:
– Power Output: FM: Low power 1.5 Watts (Adjustable 0–10 W), High power 10 Watts (Typically 15 W); SSB: 15 Watts PEP Output.
– Carrier Suppression: Greater than 50 dB.
– Unwanted Sideband Suppression: Greater than 50 dB at 1 kHz.
General:
– Continuous tuning in 10 kHz bands. Stability better than 50 Hz after 5 minute warmup.
– Separate VXO and RIT for independent transmitter and receiver tuning. Built-in AC/DC Power Supply, Noise Blanker, IDC. Built-in Test Tone, provision for PL or Touch-Tone.
