Note
Ham Radio, Aug 1968, p. 95.
Ham Radio, Nov 1968, p. 55. (a few details)
Ham Radio, Apr 1969, p. 90.
Ham Radio, Nov 1970, p. 82.
Ham Radio, Feb 1971, p. 90.
Ham Radio, Apr 1971, p. 67. (deluxe version)

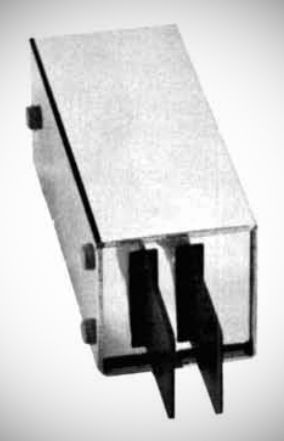

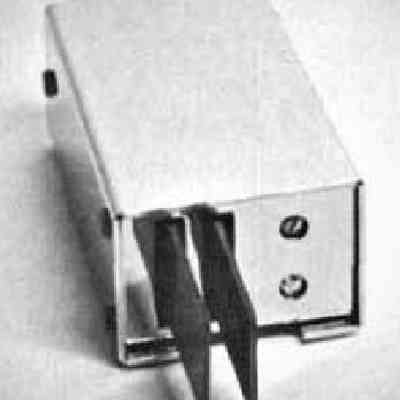

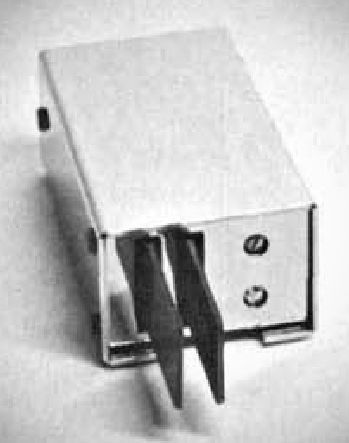

This switching mechanism is completely enclosed and combines the twin lever for electronic keys with a straight hand key in a pivotless two-paddle design. With this key, CW operators have an instant choice of automatic, semi-automatic, or straight hand keying in one compact unit–by turning the unit on its side, it may be used as a straight key. Although the Permaflex key was designed specifically to key the low currents associated with integrated-circuit keyers, it will handle transmitter currents up to 8 amps.
The contacts are gold-diffused pure silver for protection from corrosion and are adjustable from zero to 0.06 inches. Paddle weight is adjustable from 5 to 50 grams. The paddles are made of rugged fiberglass epoxy with gold-plated copper conductors to ensure a long-term, low resistance, anti-corrosion keyer.
The cabinet is 16-guage chrome-plated steel, with an inner chassis that can be quickly removed for contact gap and tension adjustment. Tho low-mass paddle design and durometer rubber feet permit accurate high-speed keying with a minimum of "walking."
In April, 1971, the company announced a new wider and heavier version of the Permeflex. Included with the new deluxe key is an internal bracket and blank printed circuit board to permit construction of a built-in electronic keyer or monitor.
The pre-punched 1/4" holes on the front panel will accommodate sub-miniature switches and potentiometers.
References

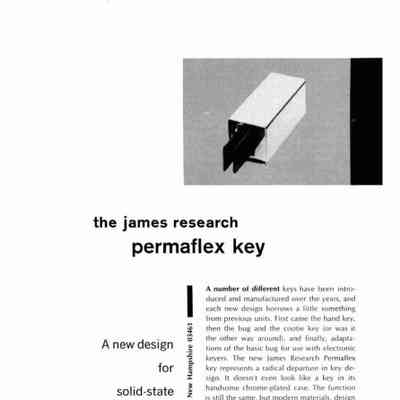

Brief description. Ham Radio, Aug 1968, p. 83.

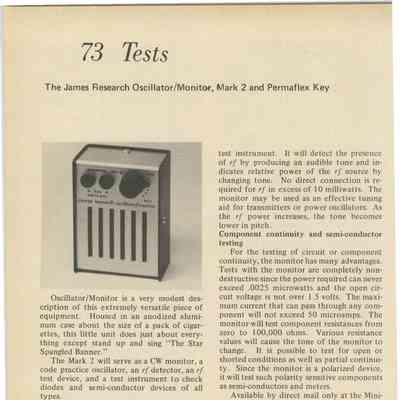

Review. Ham Radio, Dec 1968, p. 73.
