Johnson 6N2 Thunderbolt

Object/Artifact

-

Radio Alpha

Image: Joe Veras, K9OCO

Image: Joe Veras, K9OCO

Name/Title

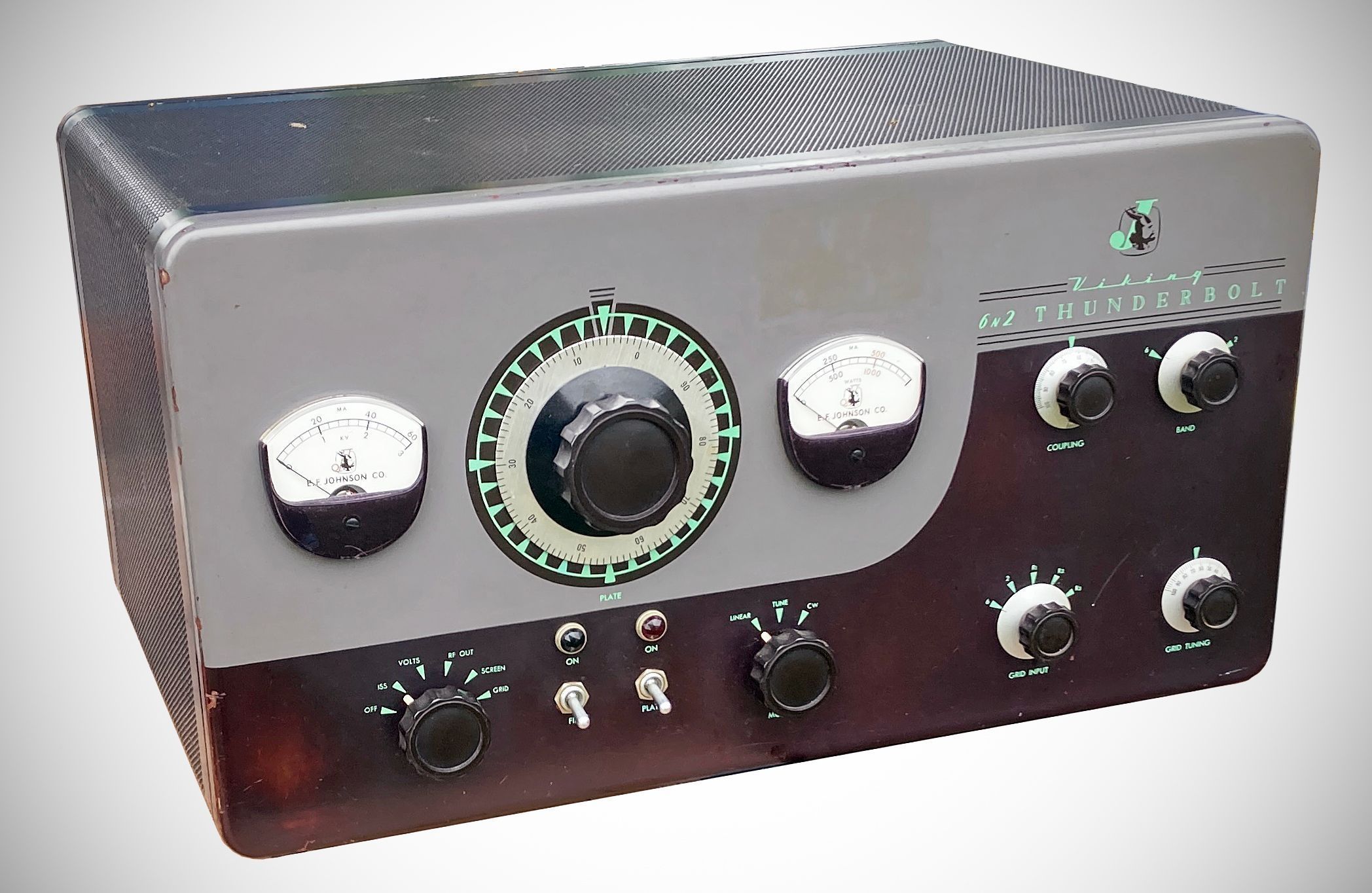

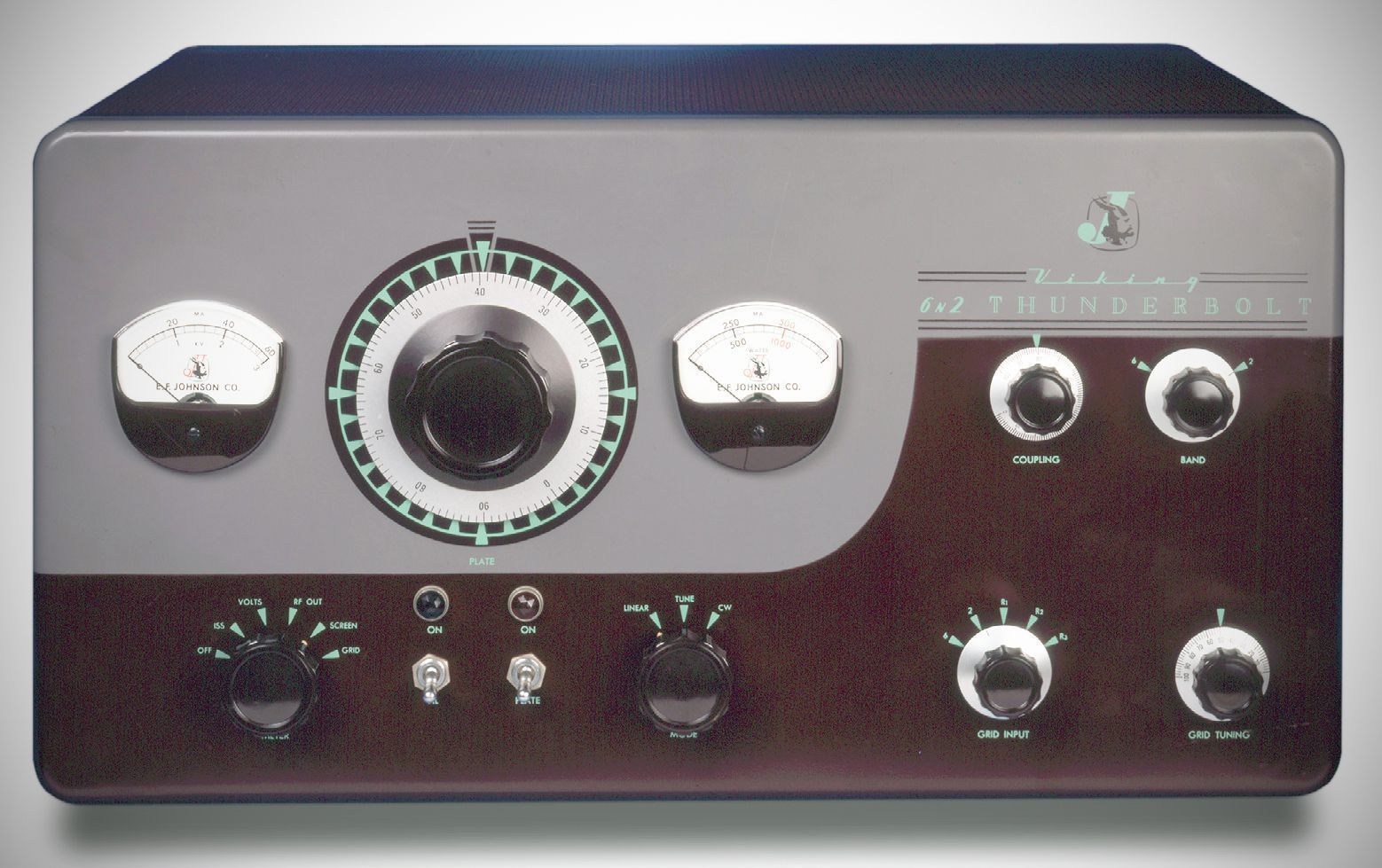

Johnson "6N2 Thunderbolt"

Description

1200 Watt PEP VHF Linear Amplifier

Category

Amplifier, HF, Kit

Made/Created

Manufacturer

E. F. Johnson

Date made

1959 - 1963

Valuations

Value

$524.50

Notes

Kit form

General Notes

Note

Kit or wired. QST, Sep 1959, p. 103. Allied Radio catalog 1961 (copyright 1960), p. 390. QST, Aug 1963, p. 88. Johnson’s 6 and 2 meter high-power amplifier was rated at 1200 watts PEP sideband and 700 watts AM in Class AB1. It ran 1000 watts CW input in Class C. The 6N2 Thunderbolt used a pair of 7034 tetrodes. Drive requirements were 5 watts in Class AB1 and 6 watts for Class C.
