Note
Electronics World, May 1968, p. 88.
Features

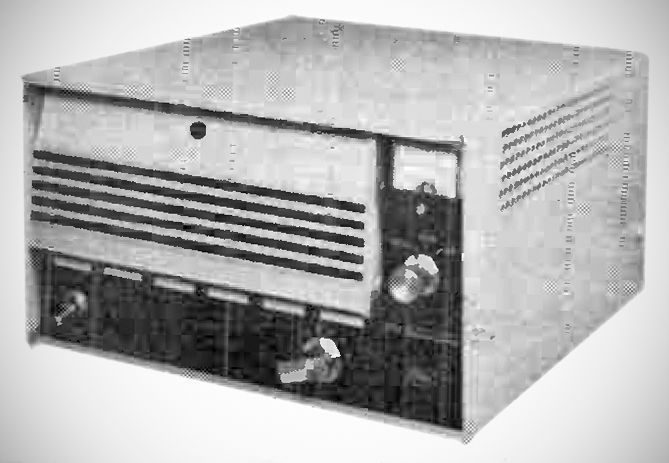

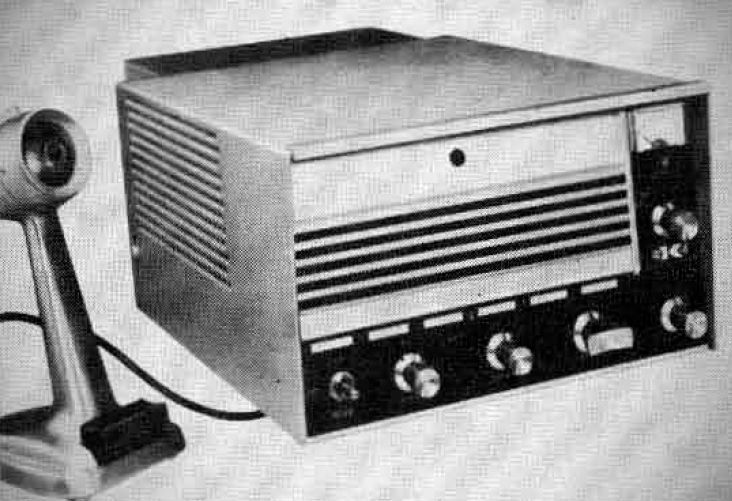

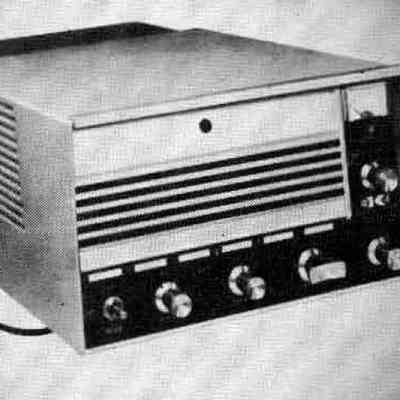

– Transistorized transmitter for fixed-frequency operation across three bands (40, 80, and 160 meters).
– Modes: Single Sideband (SSB), compatible AM, and CW.
– Uses solid-state circuitry throughout, except in the high-level stages.
Specifications
– Power Output: 90–100 watts PEP (depending on the operating frequency and antenna used).
– Audio Frequency Response: Extends from 450 Hz to 2600 Hz (down only 2.5 dB at 500 Hz and 2400 Hz relative to 1000 Hz).
– Carrier Suppression: 46 dB or more in SSB mode.
– Frequency Tolerance: +–1 ppm per week.
– Frequency Stability: Better than +–5 Hz at room temperature when operating at 12.5 MHz.
Power Source: Operates from 115 V or 230 V AC (50–60 Hz).
References
Brief description. Electronics World, May 1968, p. 88.
