Note
QST, Apr 1979, p. 6.
QST, Aug 1979, p. 180. (technical information)
QST, Jan 1980 p. 115.

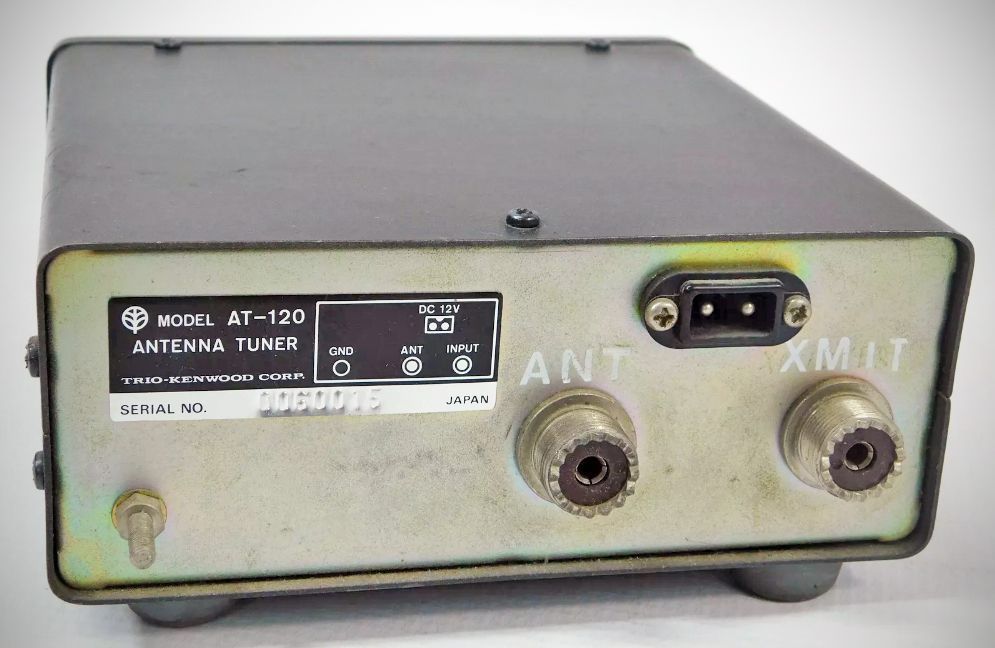

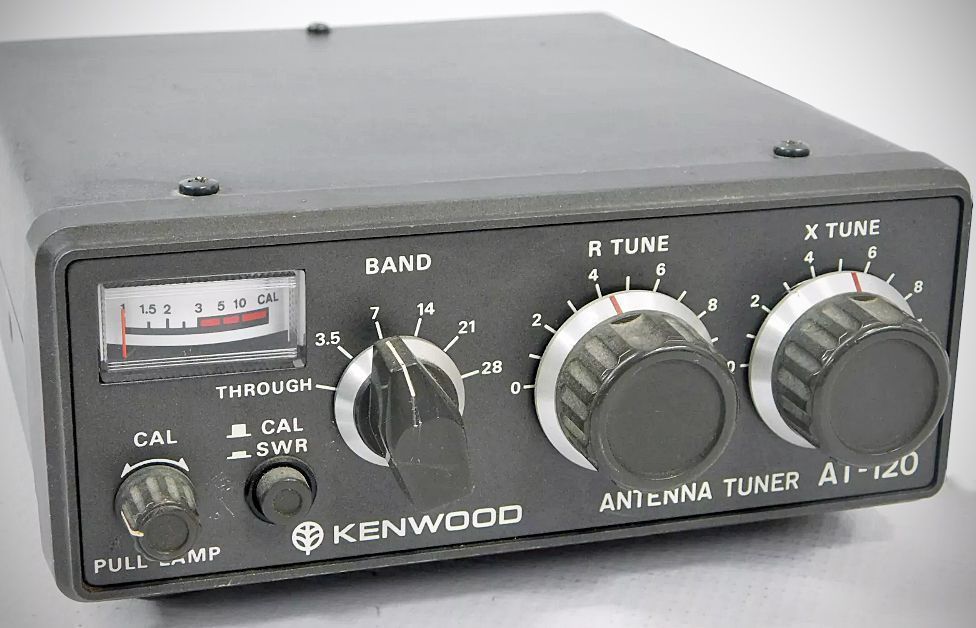

Matching tuner for the TS-120S.
Specifications
– Frequency range: 5 amateur bands from 3.5 to 29.7 MHz
– Input impedance: 50Ω
– Output impedance: 20 to 300Ω, unbalanced.
– Through power: 150 W max. (3.5 MHz band, 120 W)
– Insertion loss: Less than 0.5 dB at optimum match.
– Measurable SWR range: 1.0:1 to 10:1
Min. power required: 2 W
Dimensions: 152 (6) W x 60 (2-3/8) H x 159 (6-1/4) D mm (inch)
Weight: 1.6 kg (3.5 lbs) approx.
