Note

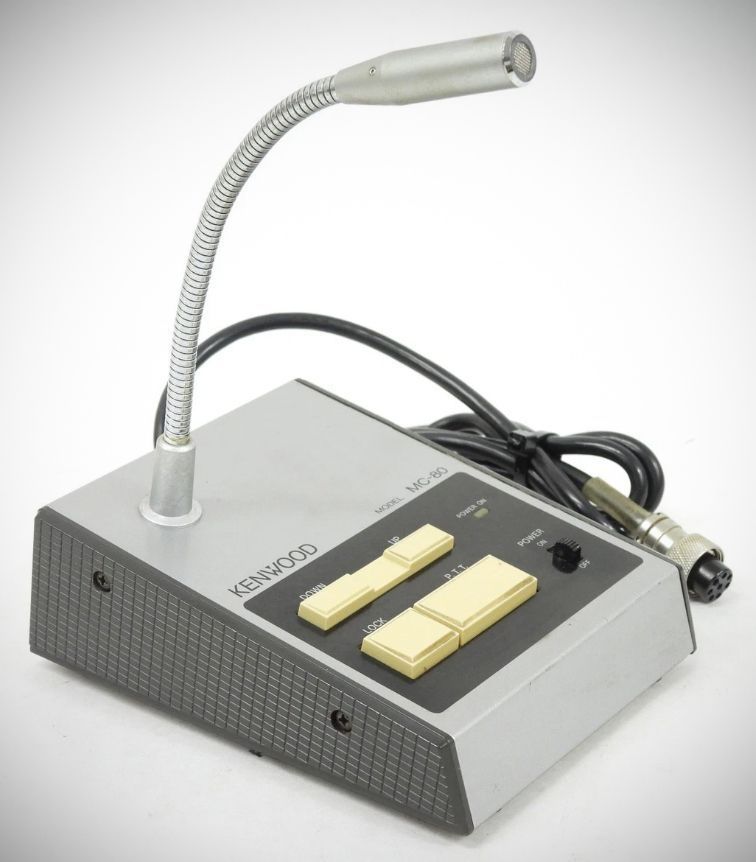

The Kenwood MC-80 is a desktop electret condenser microphone designed for use with Kenwood amateur radio transceivers, known for its clear audio quality and built-in preamplifier. It features an 8-pin connector and is compatible with a range of classic Kenwood models.
Features and Specifications
Microphone Type: Omnidirectional electret condenser
Built-in Preamplifier

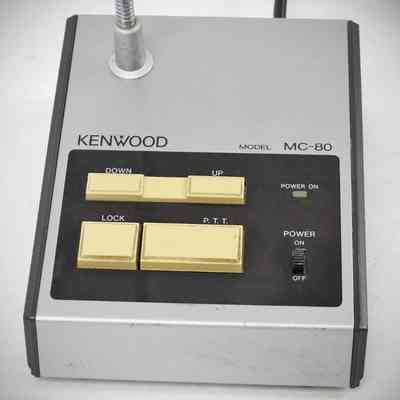

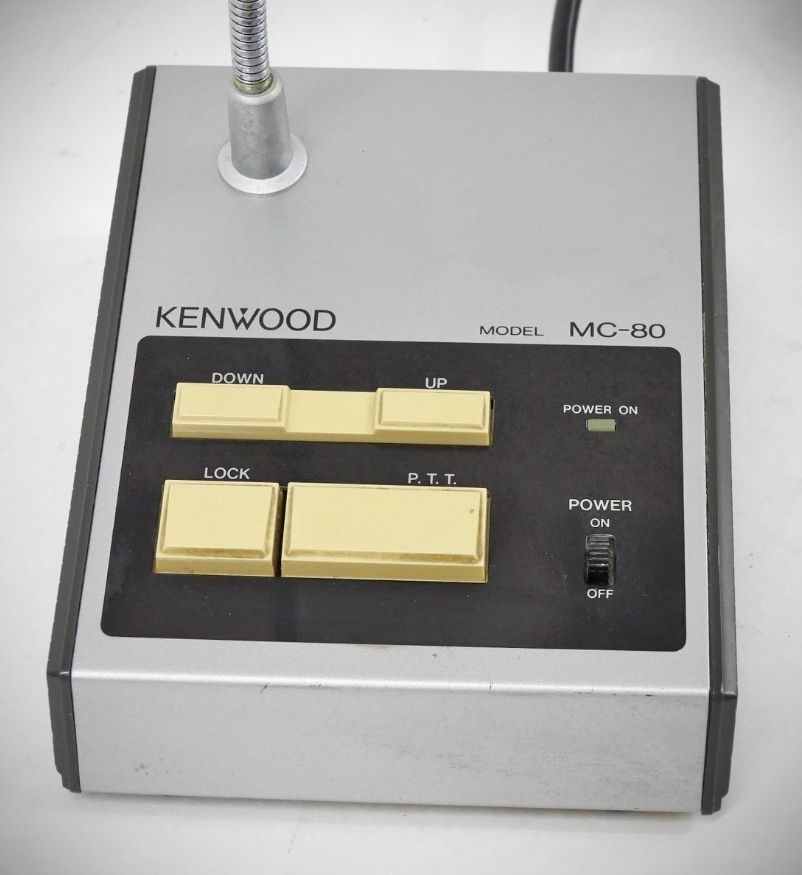

Controls: Includes Push-To-Talk (PTT) and PTT lock switches. It also has UP/DOWN tuning switches for frequency control on compatible transceivers.
Connectivity: Terminates to a standard 8-pin plug
Power Supply: Requires power for the preamp. It can be powered directly from compatible radios or via four "AA" batteries
Impedance: The microphone impedance is approximately 700 ohms.
Frequency Response: 200 Hz to 7 kHz.
Compatible Transceivers
The MC-80 is designed for many classic Kenwood HF transceivers. Compatible models include: TS-440, TS-450, TS-930, TS-940, TS-680, TS-780
