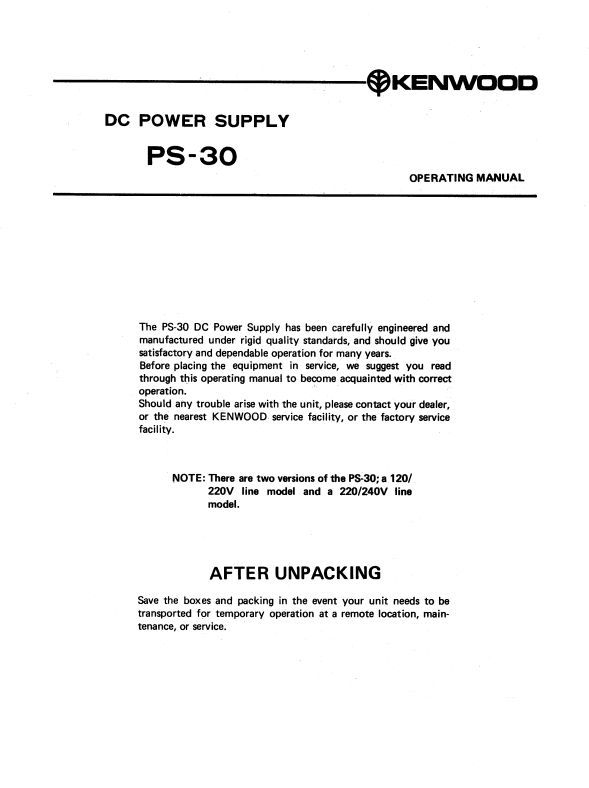

Power Supply for TS-120S and TS-180S
Specifications
– Input voltage: 120/220/240 VAC ± 10%, 50/60 Hz
– Output voltage: 13.8 VDC (standard voltage)
– Output current: 20 A (50% duty cycle)
– Continuous load current: 15 A max. (including external output terminal)
– Output voltage fluctuation:
Within ±0.7 V at AC 120V, 220V, 240V ±10% at 15 A load.
Within ±0.7 V between 2-15 A load.
No-load output voltage: Less than 16 V at 120/220/240 VAC)
– Ripple voltage: Less than 20 mV (rms) at 13.8 V, output current 15 A.
– Power consumption: Approx. 470 W (at 120/220/240 VAC, 13.8 VDC, 20 A)
