Kenwood TM-2530A, TM-2550A, TM-2570A

Object/Artifact

-

Radio Alpha

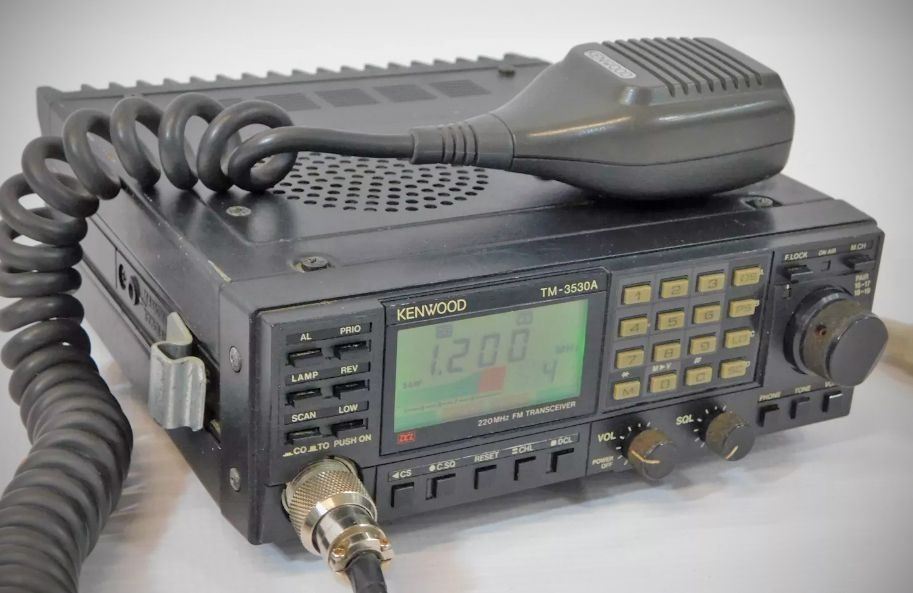

TM-3530 shown, is visually identical to the 2500 series. Image: hamandhifi.com

TM-3530 shown, is visually identical to the 2500 series. Image: hamandhifi.com

Name/Title

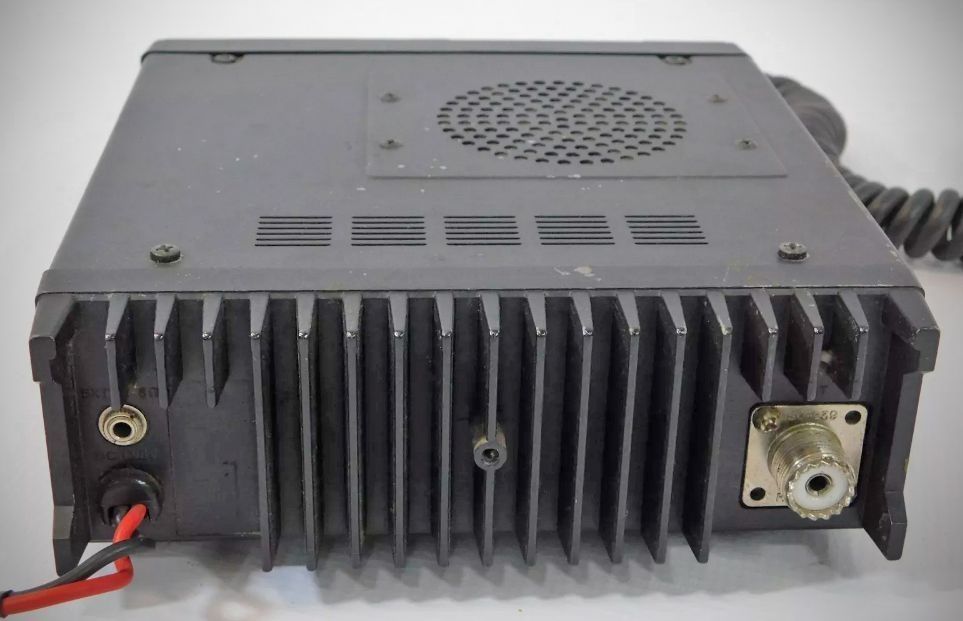

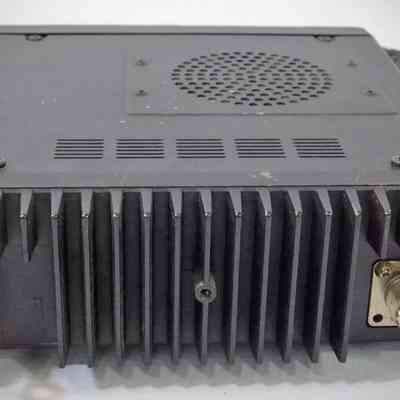

Kenwood TM-2530A, TM-2550A, TM-2570A

Description

20/40/60 Watt 2 Meter Mobile Transceivers

Category

Transceiver, VHF FM

Made/Created

Manufacturer

Kenwood

Date made

1986

Dimensions

Height

2-3/8 in

Width

7-1/16 in

Depth

7-11/16 in

Weight

4 lb

General Notes

Note

The Kenwood TM-2530, 2550, and 2570 transceivers are identical in function except for RF power output. They are also visually identical to the TM-3530 220 MHz model. They feature an ergonomic panel layout with a large, easy-to-read LCD display and backlit keys for simplified operation. The units utilizes a dual microprocessor system to provide a versatile range of functions, including a memory capacity for 23 channels. One notable feature is the automatic autopatch transmission, which allows users to store up to 15 telephone numbers in memory for automatic dialing. Additionally, the transceivers are compatible with the optional DCL (Digital Channel Link) system for automatic open channel searches and digital squelch, as well as the VS-1 voice synthesizer for audible frequency announcements. Options include: TU-7: Internal Tone Unit (required for repeaters) VS-1: Voice Synthesizer unit CD-10: Call Sign Display unit MU-1: Modem Unit (for DCL operations) Specifications – Frequency Range: 220 to 225 MHz – Mode: FM – Operating Temperature: -20°C to +50°C (-4°F to +122°F) – Antenna Impedance: 50 ohms – RF Output: TM-2530A: adjustable up to 20 watts TM-2550A: adjustable up to 40 watts TM-2570A: adjustable up to 60 watts – Modulation: Reactance – Frequency Stability: Less than ±15 PPM – Max. Frequency Deviation: ±5 kHz – Spurious Radiation: Less than -60 dB – Audio Distortion: Less than 3% (300 Hz to 3000 Hz at 60% mod.) – Receiver Circuitry: Double conversion superheterodyne – Intermediate Frequency: 1st: 20.935 MHz; 2nd: 455 kHz – Sensitivity (12 dB SINAD): Less than 0.25 µV – Sensitivity (S+N/N): More than 50 dB at 1 mV input – Selectivity (-6 dB): More than 12 kHz – Selectivity (-60 dB): Less than 24 kHz – Spurious Response: Better than 70 dB (except fd-IF/2) – Squelch Sensitivity: Less than 0.125 µV (threshold) – Audio Output: More than 1.5 W (8 ohms load, 5% distortion) – DCL System Code / Modulation: NRZ equal-length / MSK modulation Transmission Speed: 1200 bits/second, ±200 PPM Power Requirement 12 to 16 VDC (13.8 VDC reference) Current drain: TM-2530A: (Tx) 6.5 amps, (Rx) 0.6 amps TM-2550A: (Tx) 9.6 amps, (Rx) 0.6 amps TM-2570A: (Tx) 16 amps, (Rx) 0.6 amps
