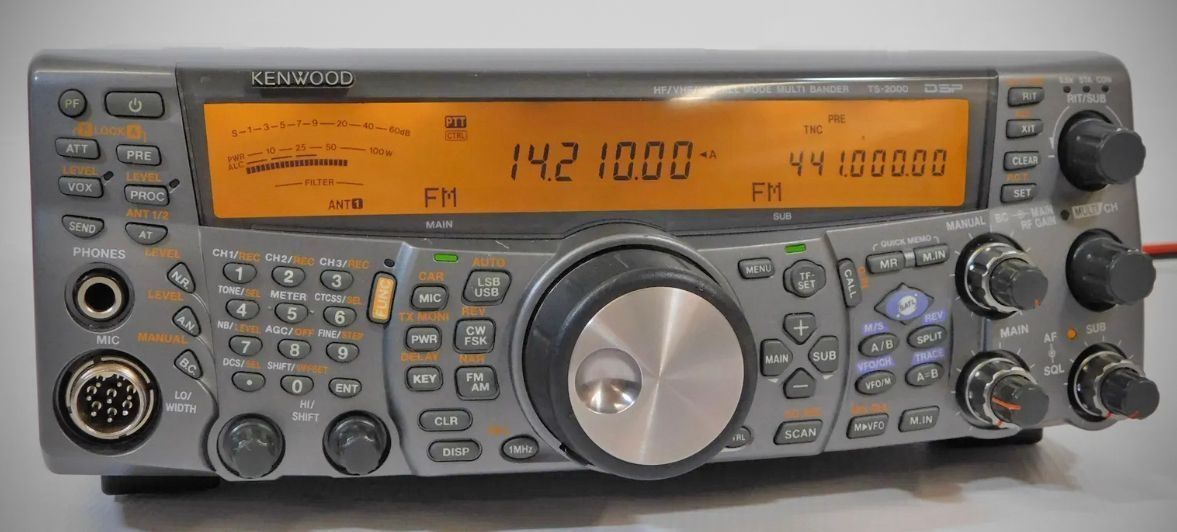

The Kenwood TS-2000 is a versatile, all-mode multiband transceiver, sometimes referred to as a "shack-in-a-box" due to its extensive frequency coverage and feature set within a single unit. It was designed to provide a comprehensive solution for HF, VHF, and UHF operations, making it popular for base station, mobile, and satellite use.
The TS-2000 had an exceptionally long production run of approximately 18 years. Kenwood officially discontinued the series in late 2018, with retailers clearing out the final "factory fresh" stock through early 2019.
Frequency Coverage and Power
The TS-2000 provides comprehensive coverage across the following amateur bands:
– HF/50 MHz: 100 watts output.
– 144 MHz (2m): 100 watts output.
– 430/440 MHz (70cm): 50 watts output.
– 1.2 GHz (23cm): 10 watts output (standard on the TS-2000X model or available as an optional UT-20 module).
Key Technical Features
– Dual Receivers: The radio features a main receiver and a sub-receiver. The main receiver covers all supported bands and modes, while the sub-receiver is typically used for FM or AM reception on the VHF/UHF bands, allowing for simultaneous monitoring.
– IF Digital Signal Processing (DSP): It was one of the earlier transceivers to implement DSP at the Intermediate Frequency (IF) stage for the main receiver. This allows for adjustable filter slopes, noise reduction, and an auto-notch filter.
– Satellite Operation: The TS-2000 is highly regarded for satellite work. It supports full-duplex operation, Doppler frequency tracking, and has 10 dedicated satellite memory channels.
– Built-in TNC: It includes a built-in 1200/9600 bps Terminal Node Controller (TNC) for packet radio and DX Cluster monitoring.

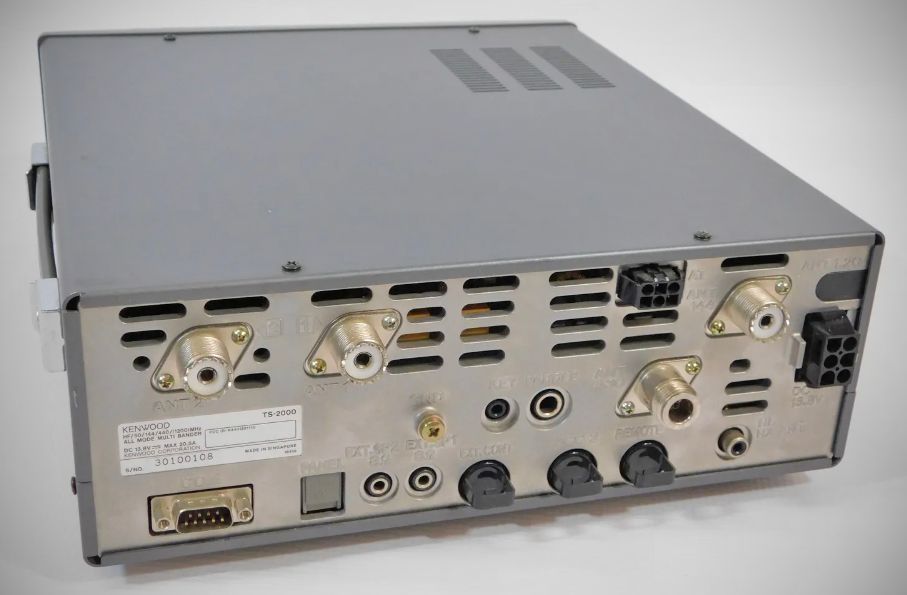

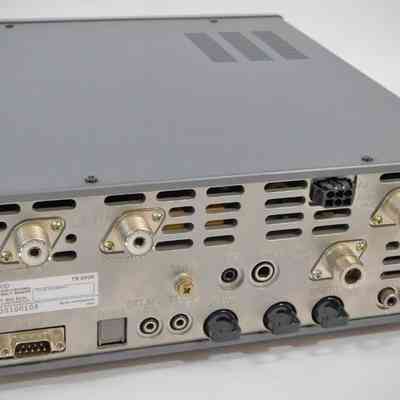

– Antenna Management: The unit features a built-in automatic antenna tuner for HF and 6-meter bands, along with multiple antenna ports for the various frequency ranges.
Variants
– TS-2000: The standard model.
– TS-2000X: The same as the standard model but with the 1.2 GHz module factory-installed.
– TS-B2000: A "silver box" version designed for remote control via a PC or the optional RC-2000 mobile head, lacking a traditional front-panel display and controls.
General Specifications
– Modes of Operation: SSB, CW, AM, FM, FSK, and Packet.
– Memory Channels: 300 channels available for storage.
– Antenna Tuner Range: 16.7 Ω to 150 Ω for the 160-meter through 6-meter bands.
– Operating Temperature: -10 °C to +50 °C (14 °F to 122 °F).
– Frequency Stability: Main band stability is ± 0.5 ppm.
Transmitter
– RF Output Power (SSB, CW, FSK, FM):
160m to 2m Bands: 100 Watts (Max), 5 Watts (Min).
70cm Band: 50 Watts (Max), 5 Watts (Min).
23cm Band (TS-2000X/Optional): 10 Watts (Max), 1 Watt (Min).
– RF Output Power (AM):
160m to 2m Bands: 25 Watts (Max), 5 Watts (Min).
70cm Band: 12.5 Watts (Max), 5 Watts (Min).
23cm Band (TS-2000X/Optional): 2.5 Watts (Max), 1 Watt (Min).
– Modulation:
SSB: Balanced modulation.
FM: Reactance modulation.
AM: Low-level modulation.
– Spurious Emissions:
HF (1.8 to 28 MHz): -50 dB or less.
VHF/UHF (50 to 430 MHz): -60 dB or less.
1.2 GHz: -50 dB or less.
– Carrier Suppression (SSB): 50 dB or more.
– Unwanted Sideband Suppression: 50 dB or more (at 1.0 kHz modulation).
– Maximum Frequency Deviation (FM):
Wide: ± 5.0 kHz.
Narrow: ± 2.5 kHz.
– Microphone Impedance: 600 Ω.
Receiver
– Circuitry:
Main (SSB, CW, AM, FSK): Quadruple superheterodyne.
Main (FM): Triple superheterodyne.
Sub (AM, FM): Double superheterodyne.
– Sensitivity (Main Band SSB/CW/FSK at 10dB S/N):
1.7 to 30 MHz: Less than 0.2 μV.
50/144/430 MHz: Less than 0.16 to 0.11 μV depending on the band.
– Selectivity (Main Band SSB): More than 2.2 kHz at -6 dB; less than 4.4 kHz at -60 dB.
– Intermediate Frequencies (Main Band):
1st IF: 69.085 MHz or 75.925 MHz.
2nd IF: 10.695 MHz.
3rd IF: 455 kHz.
4th IF: 12.0 kHz.
– Audio Output: More than 1.5 Watts into 8 Ω with 10% distortion
Supply Voltage: DC 13.8V ± 15%.
Current Drain:
Transmit (Max): 20.5 A.
Receive (No signal): 2.6 A.
Accessories
Optional Accessories
– Power Supply: PS-60 Regulated DC Power Supply (22.5 A)
– MC-43S Hand Microphone
– MC-52DM Multi-function DTMF Microphone
– MC-60A Deluxe Desktop Microphone
– MC-90 Deluxe Desktop Microphone
– SP-23 External Speaker
– KES-3S External Speaker
– HS-5 Deluxe Headphones
– HS-6 Small Headphones
Internal Accessory Units:
– UT-20 1.2 GHz All Mode Unit (for the TS-2000/TS-B2000)
– VS-3 Voice Synthesizer Unit
