Note
QST, Apr 1979, p. 6.
QST, Nov 1981, p. 122.
QST, Jan 1982, p, 6.

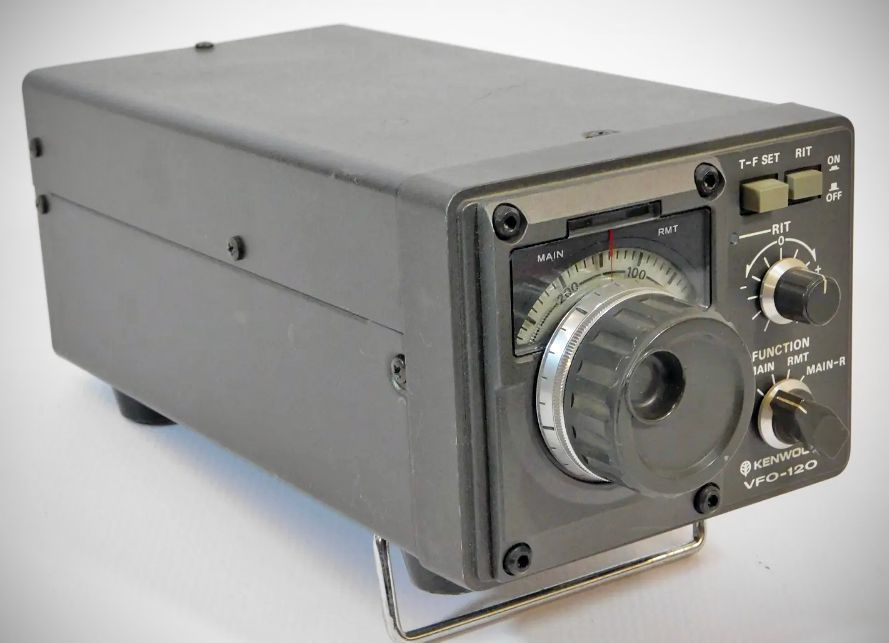

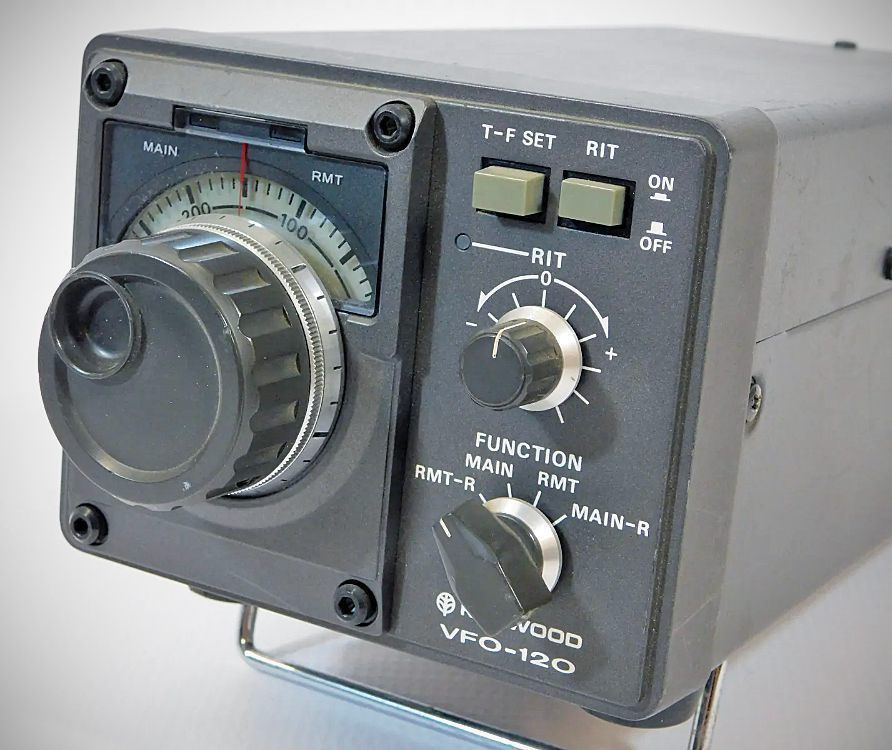

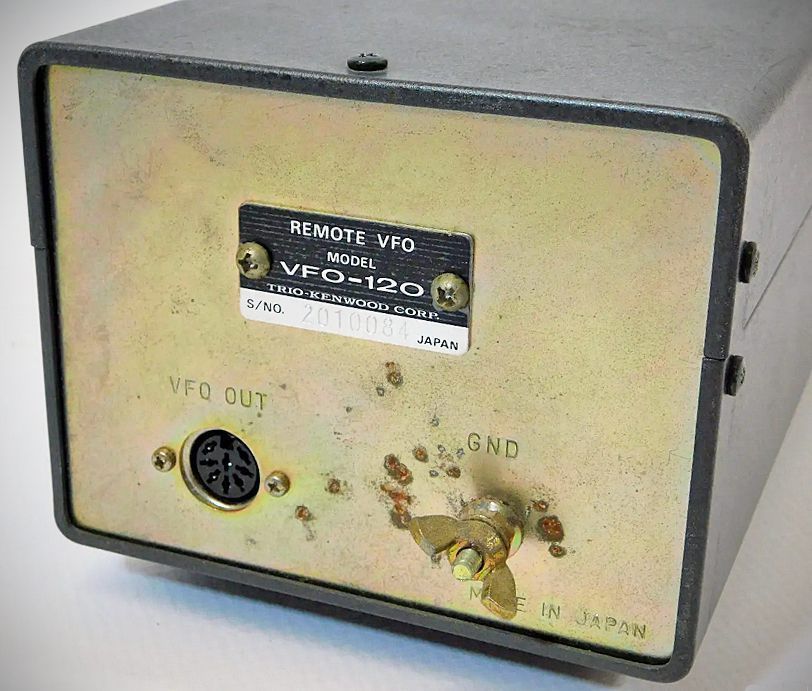

The campion VFO for the Kenwood TS-120S(V).
Specifications
– Oscillator frequency: 5.50~6.00 MHz
– Oscillator circuit: Clapp
– Output voltage: 0.2 V $\pm$1 dB (across 470-ohm load)
– Frequency stability: Within 100 Hz per 30 minutes after 3 minute warm-up (at room temperature).
– Solid-state complement:
FET: 2
Transistor: 2
Diode: 6
– Power source: From TS-120
