10 Watt 23 Channel 2 Meter (440 MHz) FM Transceiver with Scan
Category
Transceiver, VHF FM
Made/Created
Manufacturer
Fukuyama Denki Kogyo, Kyokuto Denshi Kaisha Ltd
Date made
1976 - 1976
Dimensions
Height
2-3/16 in
Width
6-3/8 in
Depth
9 in
Weight
4-1/2 lb
Valuations
Value
$325.00
General Notes
Note
QST, Apr 1976, p. 85.
QST, Nov 1976, p. 149. (good photo)

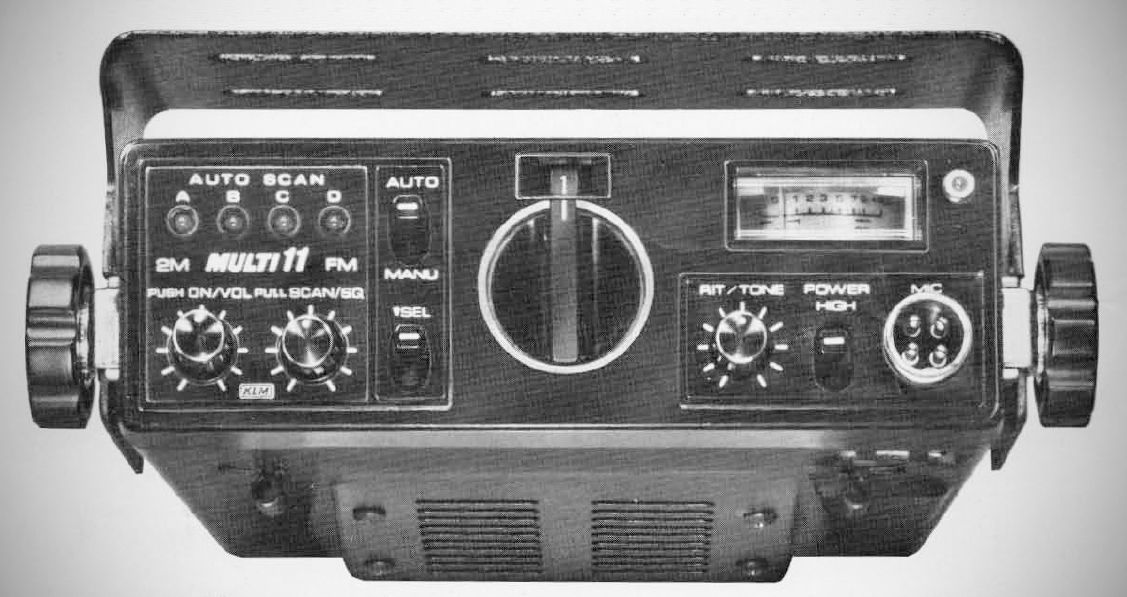

Multi-11, 2 meters, $325.00

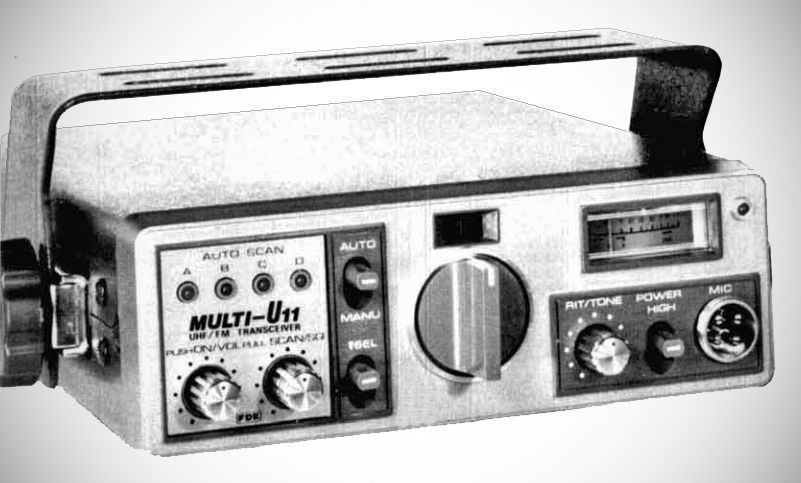

Multi-U11, 440 MHz, $379.00

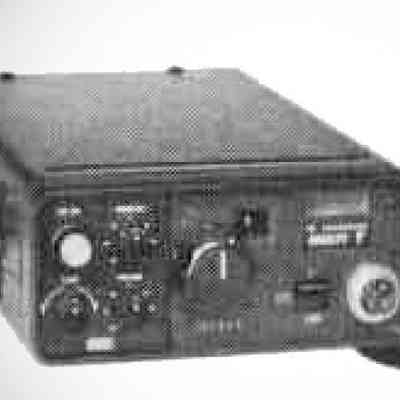

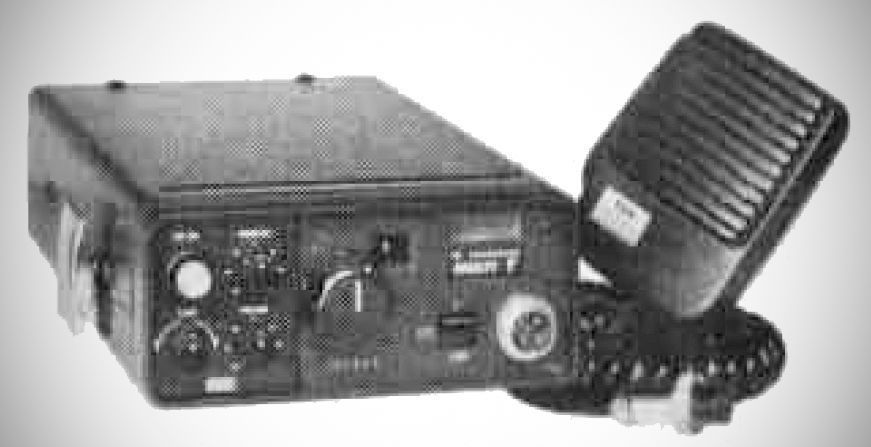

Multi-7, 2 meters without scan, $239
These all solid-state, double-conversion NBFM transceivers feature a 2-way 4-channel scan function alongside 23 manually switchable crystal-controlled channels. The 4-channel scanning feature scans both receive and transmit simultaneously. A transmit control crystal selected for simplex or repeater duplex switches with each electronically scanned position, allowing continuous, monitoring of favorite repeaters or stations. A manual toggle switch allows immediate break-in on any scanned channel.
Multi-11 covers 144–146 MHz or 146–148 MHz
Multi-U-11 covers 420–450 MHz (any 4 MHz segment)
Multi-7 covers 2 meters, but without scan fucntion
Features
– Double conversion superheterodyne receiver
– Two-stage crystal filter for selectivity
– Two RF stages featuring dual-gate MOSFETs
– Fractional microvolt sensitivity
– Sensitive squelch with 0.5 uV threshold
– Receiver Incremental Tuning (RIT) range of ±5 kHz
– Transmitter & Audio: NBFM (Narrowband FM)
– 10 Watts RF output power (switchable to 1 Watt low power)
– Protective circuit for the final output transistor
– Built-in tone oscillator with switch for testing or control
– Metering & Controls: Multi-function meter indicating Power Output and "S" units, switchable to FM discriminator center tuning.
– External VFO or synthesized input
Power Requirements: 13.5 VDC negative ground.
