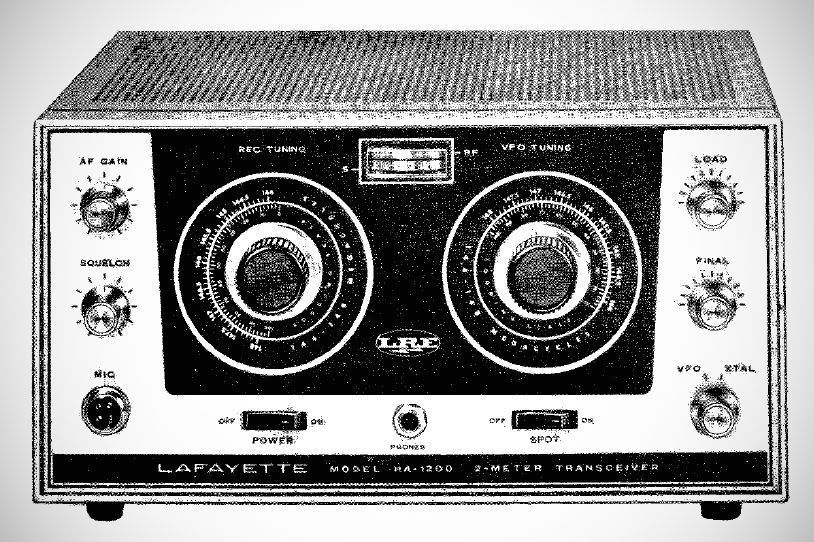

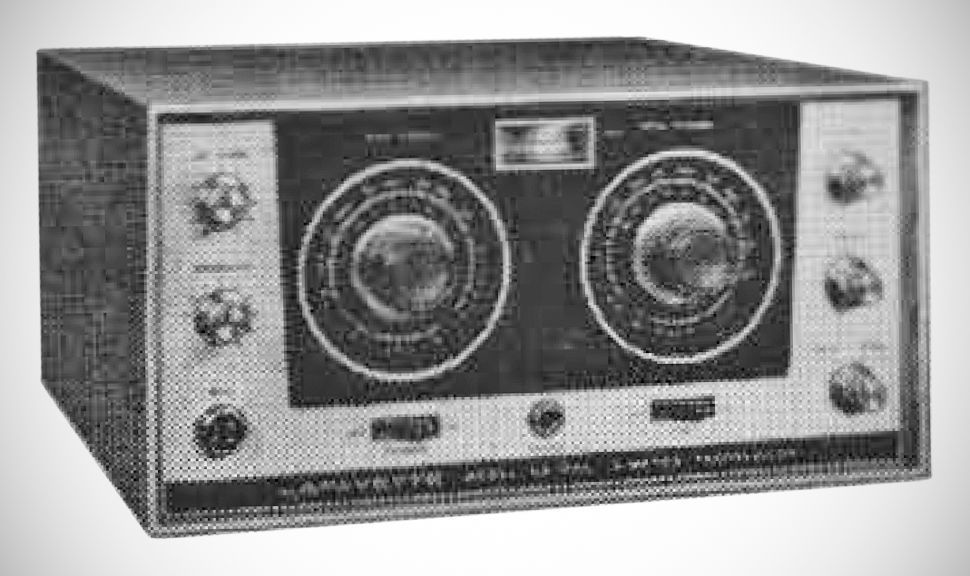

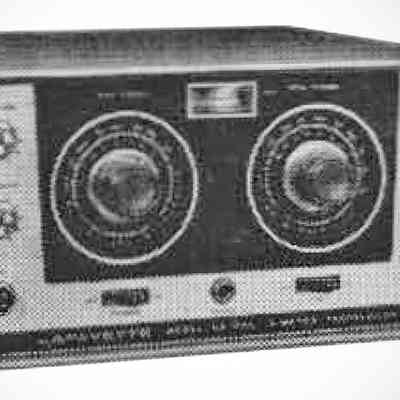

The Lafayette Model HA-1200 is a compact, self-contained transceiver designed for the 2-meter band. The universal power supply makes the unit ideally suitable for operation as a 12 volt DC mobile unit or fixed station operation from a 117 volt, 50/60 cycle AC power source.
Requires an external 8 ohm speakers.
Features
– Built-in solid-state universal regulated power supply. Operates from 117 volts AC or 12 volts DC.
– Crystal-controlled or VFO transmitter operation.
– Audio squelch control.
– Spot switch.
– S-meter/Relative power indicator.
– 6CW4 Low-Noise neutralized RF amplifier.
– Crystal-controlled triple conversion IF system.
Specifications
– Sensitivity: Less than 1 microvolt for 10 db S/N ratio.
– Selectivity: 30 db down at 10 KHx.
– Squelch Selectivity: 1 to 300 microvolts.
– Input Impedance: 50 to 100 ohms (coaxial connector)
– Output Impedance: 8 ohms.
– Tuning Range: 144 to 148 MHz.
– IF Frequencies: 1st: 44 to 45 MHz; 2nd: 10.7 MHz; 3rd: 455 KHx.
– Audio Output: 3 watts.
– Power Input: 25 watts.
– Crystal Frequencies: 8.0 to 8.222 MHz.
– Microphone: High impedance with "push-to-talk" switch.
– Output Impedance: 50 to 100 ohms (coaxial connector).
– Mode: AM
Tube Lineup (17 total)
– 6CW4 RF Amplifier
– 6BL8 1st Mixer
– 6BL8 Osc/Osc Buffer
– 6CB6 2nd Mixer/1st I.F.
– 6BA6 2nd I.F.
– 6BE6 3rd Mixer
– 6BA6 3rd I.F.
– 12AV6 Speech Amplifier
– 12AX7 AF Amplifier/Phase Inverter
– (2) 6AQ5 Audio Power Amplifier/Modulators
– 6AQ8 VFO/Buffer/Xtal Osc
– 6AU6 24 MHz Tripler
– 12BY7A 72 MHz Tripler
– 12BY7A 144 MHz Doubler
– 6360 Final PA
– 0A2 Voltage Regulator
– Q1–Q4 2SB449 | DC Power Supply Transistors
Diodes
– 1S72 Osc Tripler
– 1N60 Detector
– 1S72 Noise Limiter
– FR-1M Squelch
– 1N60 Meter RF Detector
– (2) FR-1K Rectifier
– FR-1M Relay Rectifier
Power Requirements:
117 VAC, 50/60 Hz, 1.5 amps (maximum).
12 VDC, 10 amps (maximum).
