Note
The AT-1000pro replaced the original AT-1000 in 2008. Beyond the obvious cosmetic changes, the biggest changes are the addition of 6 meters, a two-position antenna switch, and 2000 memories.
SPECIFICATIONS
– Continuous frequency coverage 1.8 to 54 MHz (Including MARS, CAP, etc).
– Transmit Power Rating, 1.8 to 30 MHz:
– Single Side Band: 1000 watts
– CW: 750 Watts
– Digital (RTTY/Packet/PSK31, etc): 500 Watts
– Transmit Power Rating, 50-54 MHz: 250 watts, all modes.
– Minimum power required for tuning: 5 Watts
– Maximum power while tuning: 125W
– Built-in relay protection will prevent relay operation when:
– Greater than 200 watts input power under any load.
– Greater than 150 watts input power when load is 3:1 SWR or greater.

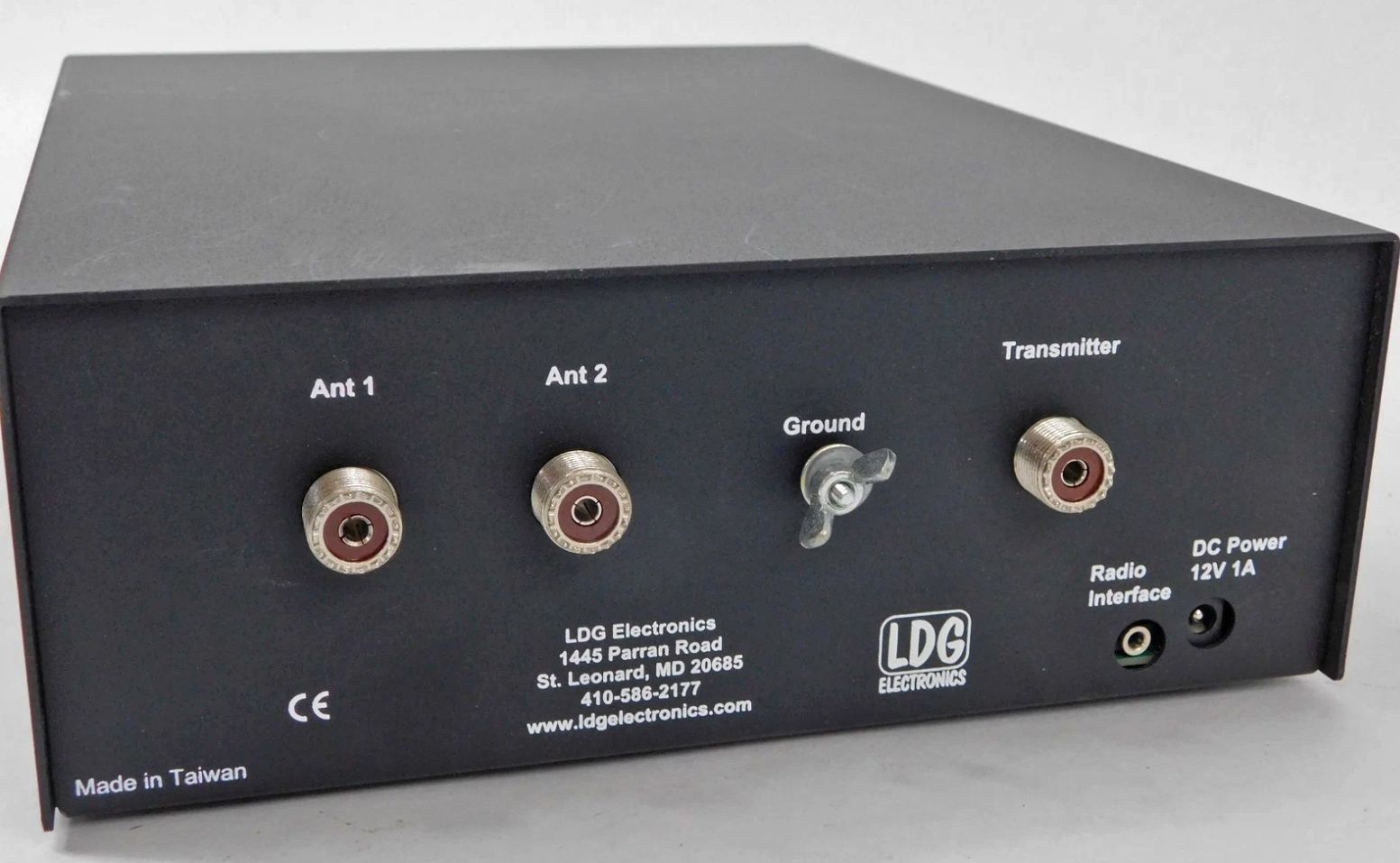

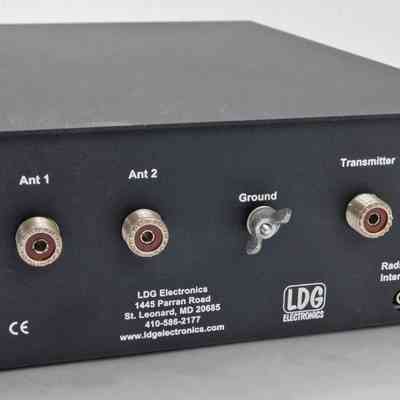

– Built-in two position antenna switch.

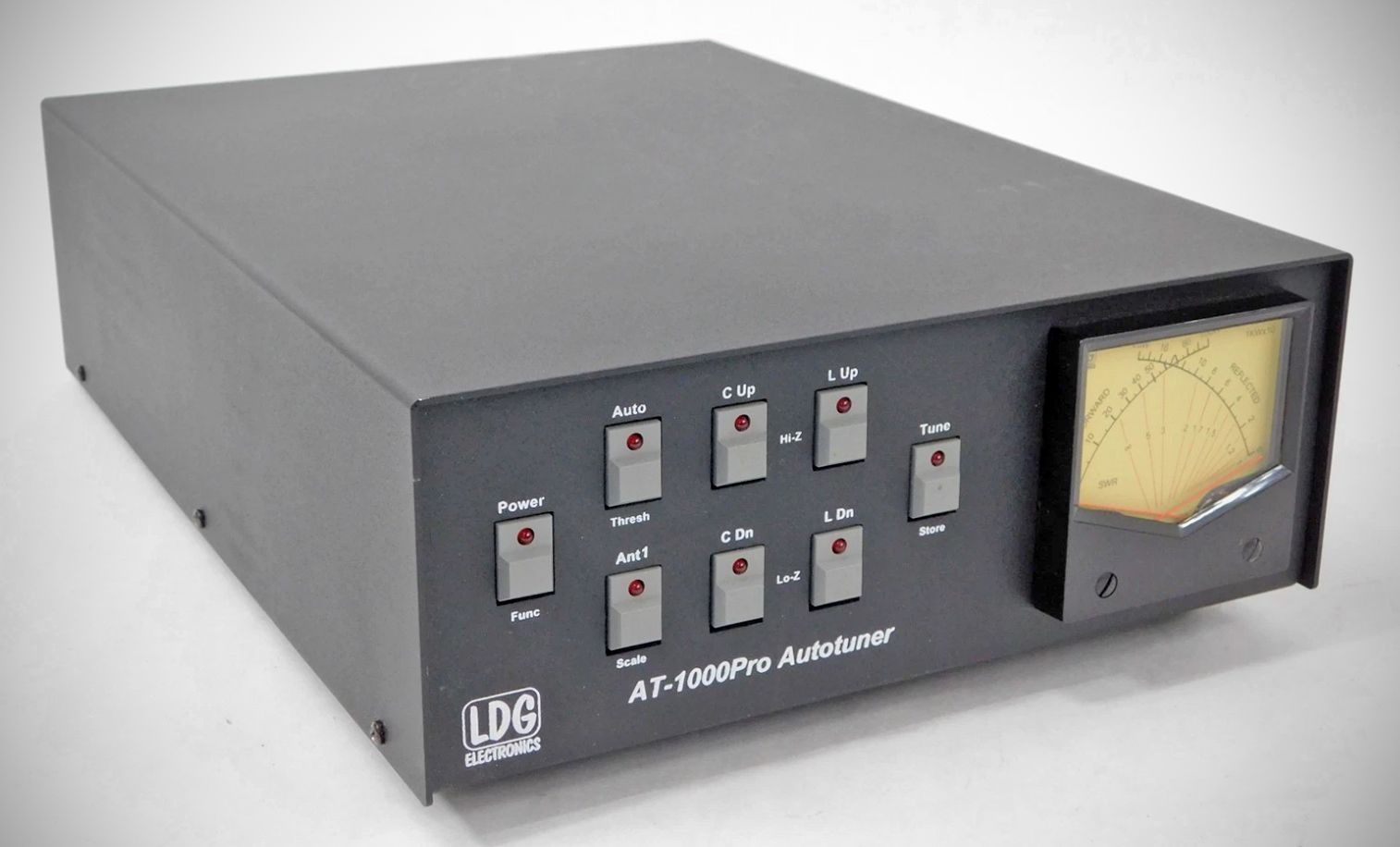

– 3” cross-needle illuminated Power/SWR meter with dual power scales, 0-100 and 0-1000
watts. Selectable Peak and Average power display.
– 2000 memories per antenna port for instantaneous band changing.
– Microprocessor-controlled Switched L tuning network.
– Fine tune controls for manually adjusting capacitance and inductance.
– Time required for tuning: 200 ms for memory recall; 10 seconds average full tune; 30
seconds maximum full tune time.
– Built-in frequency sensor allows instant recall of previously-tuned frequencies.
– Tunes 6 to 1000 ohm loads (About 10:1 SWR), or 16 to 150 ohm loads on 6M (3:1 SWR)
– For Dipoles, Verticals, Vees, Beams or any Coax Fed Antenna.
– Includes 6 foot DC power cable, Icom interface cable, and 300 W rated coax cable to use to
connect your exciter to the tuner. (DON’T use this cable to connect the amplifier to the tuner!)
Microprocessor: 68HC11
Power Requirements: 11 to 15 VDC, 1.0A
• Dimensions: 9.5”W x 13”L x 3.5”H.
• Weight: 5.2 pounds
