Note
The AT-1000proII replaced the AT-1000pro in 2012. Changes included the replacement of the cross-needle meter with an LED bar graph display, and improved tuning time.
SPECIFICATIONS
– Transmit Power Rating, 1.8 to 30 MHz:
– Single Side Band: 1000 watts
– CW: 750 Watts
– Digital (RTTY/Packet/PSK31, etc): 500 Watts
– Transmit Power Rating, 50-54 MHz: 250 watts, all modes.

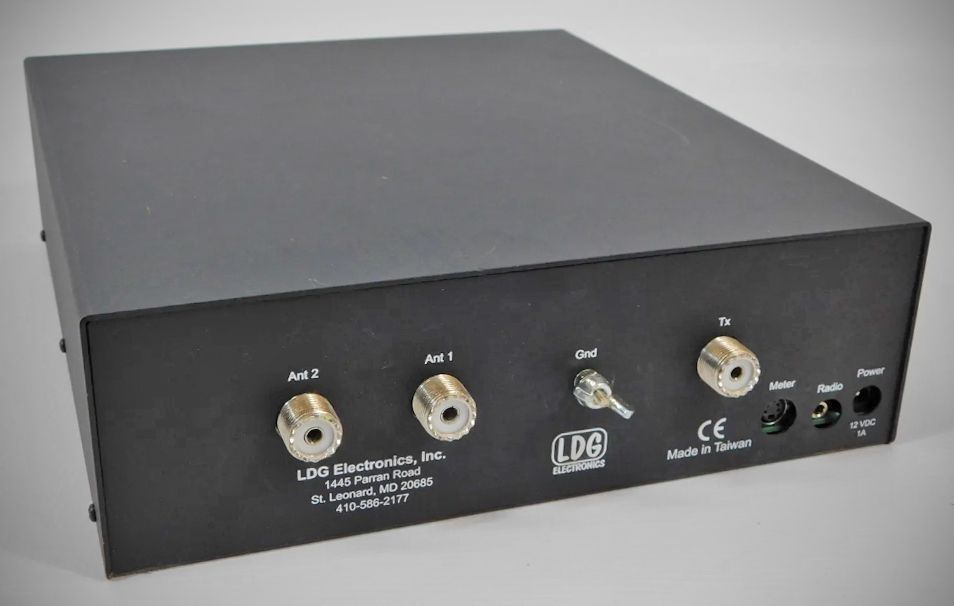

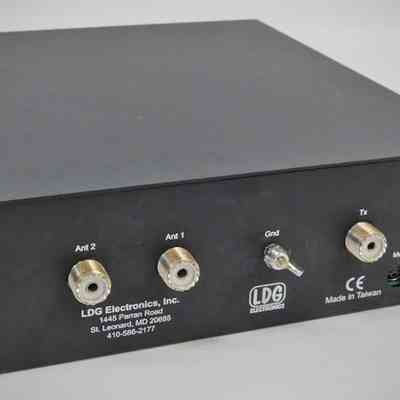

– Silver-teflon SO-239 connectors.
– Built-in 2-port antenna switch, with 2,000 memories each.
– Tuning time 0.2 to 15 seconds full tune, 0.2 seconds memory tune.
– 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
– Tunes 6 to 1,000 ohm loads (16 to 150 on 6m), 6 to 4,000 ohms with optional 4:1 balun.

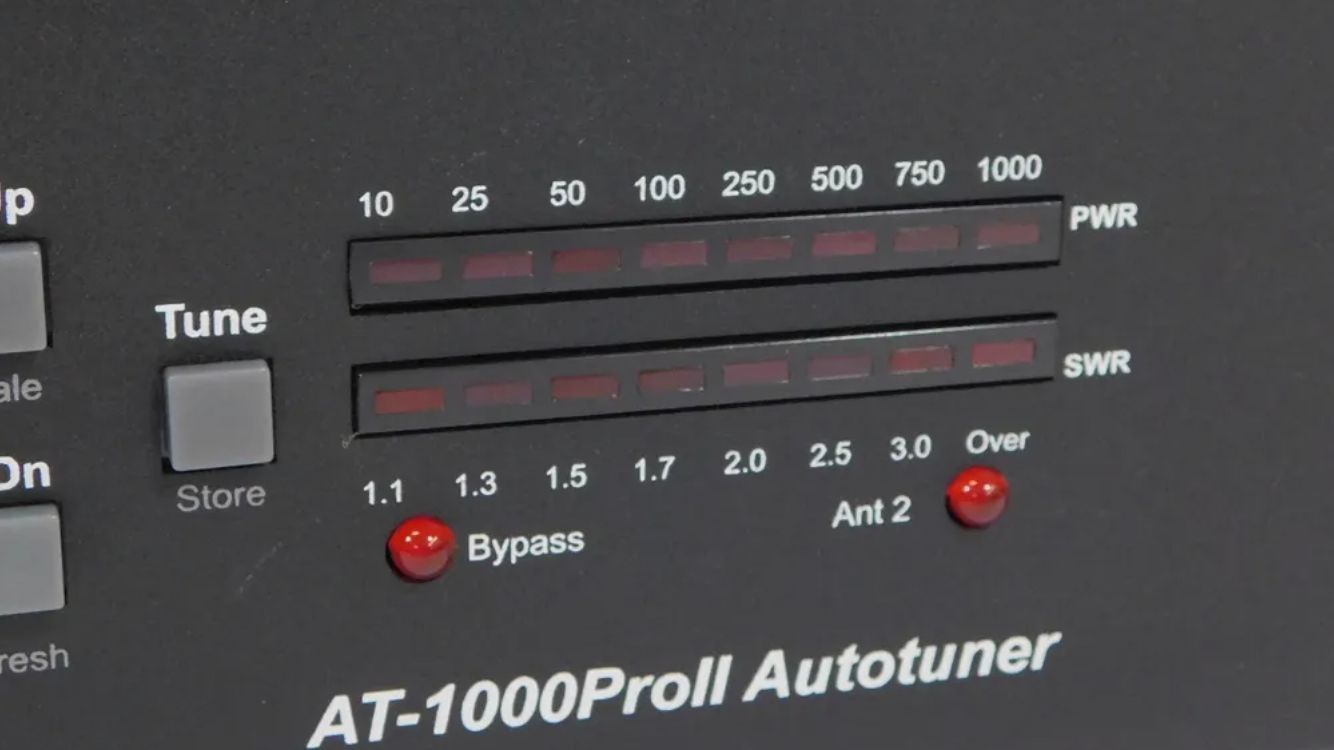

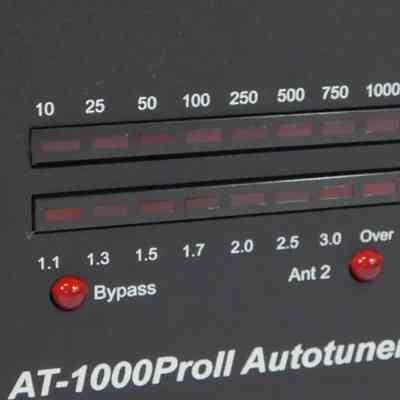

– LED bargraph displays power level, SWR, and status.
– Antenna Indicator LED shows the currently selected antenna.
– Bypass LED shows when tuner is in pass-thru.
– User-selectable operating parameters: Auto/Semi, 1kW/100W watt scale, and more.
– Optional radio interfaces for ICOM, Yaesu, and Alinco radios available.
– Optional large-display external analog panel meter.
Microprocessor: 68HC11
Power requirements: 11 to 16 VDC @ 1A max.
