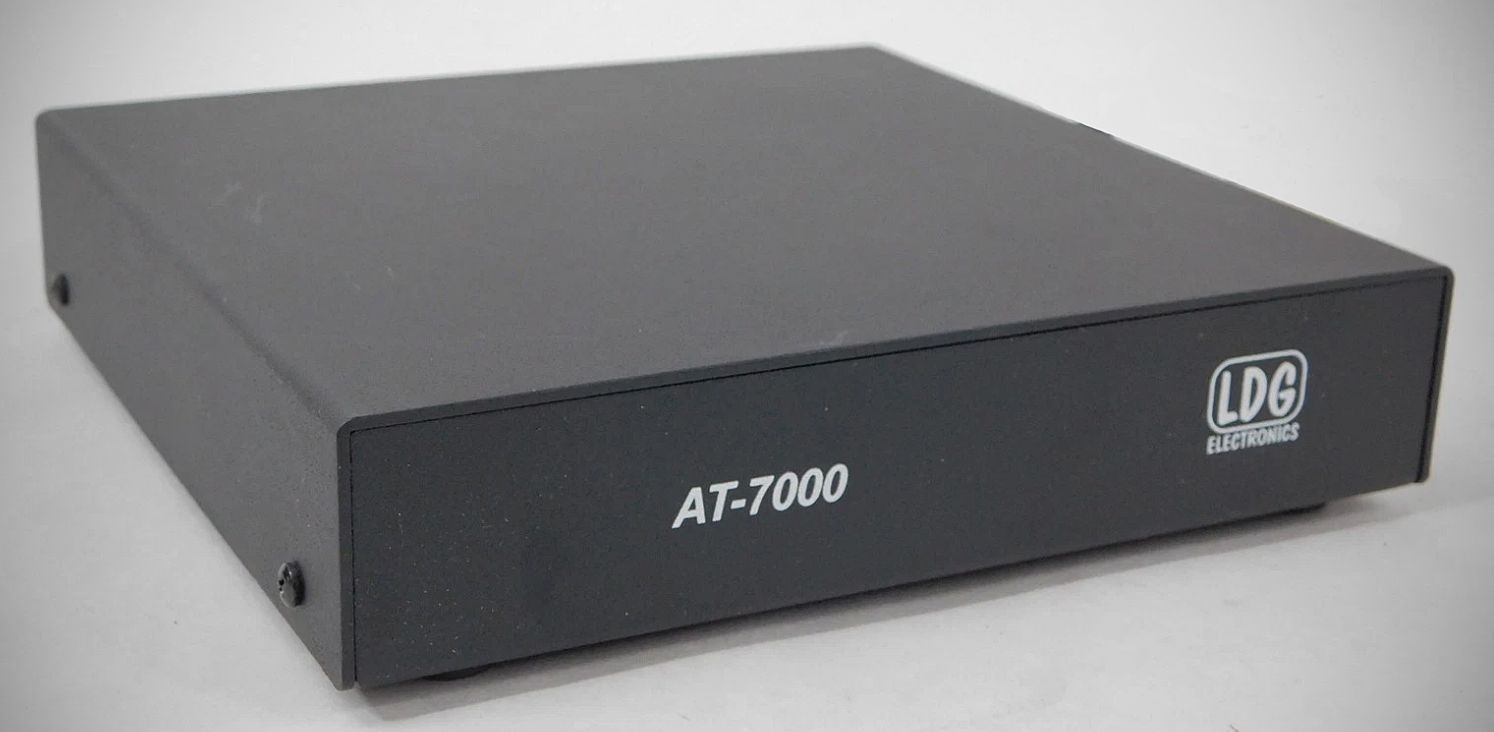

The AT-7000 provides automatic antenna tuning for your Icom IC-7000 (and some other Icom radios that are AH-3 or AH-4 compatible) across the entire HF range plus 6 meters. It will tune dipoles, verticals, Yagis or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners you may have considered. The AT-7000 uses little power while tuning, and with its latching relays, uses essentially no power in standby.
Note: 125 watts is the absolute maximum rating. The unit will be damaged if power exceeds 125 watts.
Specifications
– 0.1 to 125 watts SSB and CW peak power, 100 watts digital
– 2000 memories for instantaneous frequency or band changing
– Tuning time: 0.5 to 6 seconds full tune, < 0.1 second memory tune
– Built in frequency counter for memory operation
– Frequency coverage: 1.8 to 54.0 MHz.
– Tunes 4 to 800 ohm loads (16 to 150 ohms on 6M), 16 to 3200 ohms with optional 4:1 Balun (LDG RBA-4:1)
– For Dipoles, Verticals, Vs, Beams or and Coax Fed Antenna
– Optional external Balun allows tuning of random length, long wire or ladder line fed antennas
– Dedicated interface to the IC-7000 transceiver (and some other Icom radios)
• Power requirements: 11 to 16 volts DC at 250 mA max during tuning, < 8mA idle, provided by the Icom transceiver
