Features
– DC Input – Single Tone - 500 Watts
– Bandwidth – 3 db attenuation in excess of 300 kHz on all bands
– Input – Untuned 50 Ohms Passive grid with built-in swamping
– Output – Adjustable Pi to a 50 Ohm unbalanced line
– Power Output – Single tone test ratings - A driving signal with an average power of 25 watts will produce from 315 to 350 watts of average power to a 50 Ohm resistive load, depending on frequency
– Efficiency – The LSA-3 may be tuned up to an average input power of approximately 500 watts indicating an efficiency in excess of 60%
All transfer relays are included for TR or independent operation of the exciter.
A separate solid state power supply for either mobile or fixed station is a companion feature:
AC-LSA-3/115 for 115V. AC Input
DC-LSA-3/12 for 12 V. DC Input
Votages required:
800 V at 650 mA Plate
270 V at 100 mA Screen
0-90 V Negative Bias
12.6 V Filament
TUBE COMPLIMENT
(4) 7984 compactron pentodes each with a 35 watt plate dissipation
---

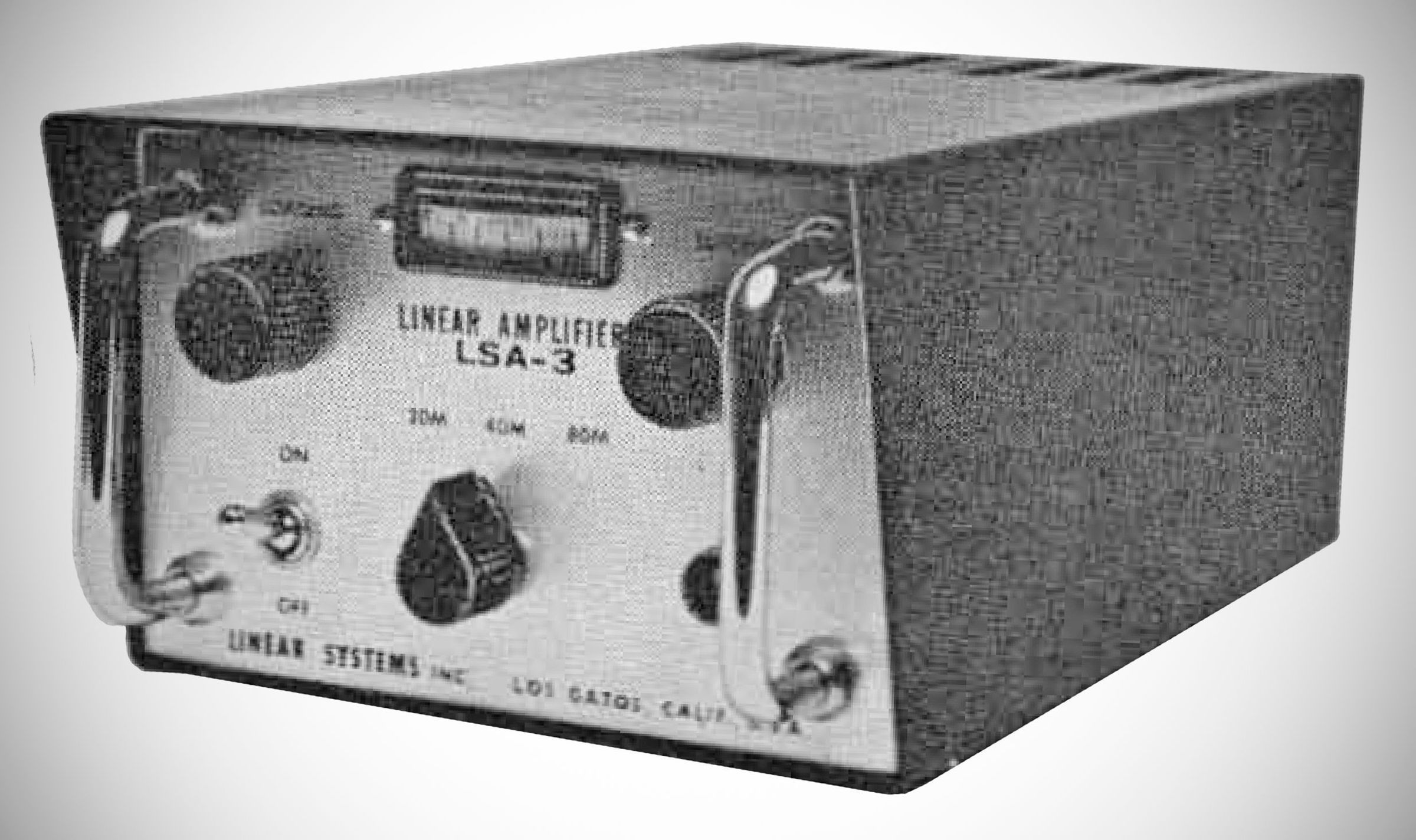

### LSA-3 BROADBAND LINEAR AMPLIFIER
from LINEAR SYSTEMS / ADCOM
3 BANDS: 80 - 40 - 20 meters
| Item | Price |
| --- | --- |
| With AC or DC Power Supply | $249.50<br> |
| LSA-3 Linear Amplifier without Supply | $150.00<br> |
---
Order now from your favorite dealer
LINEAR SYSTEMS INC.
605 UNIVERSITY AVENUE
LOS GATOS, CALIFORNIA
