QST, Mar 1954, p. 120.
QST, Nov 1954, p. 110. (6 meter version, same as 2 meter version)
QST, Jan 1956, p. 153.
QST, Sep 1960, p. 134.

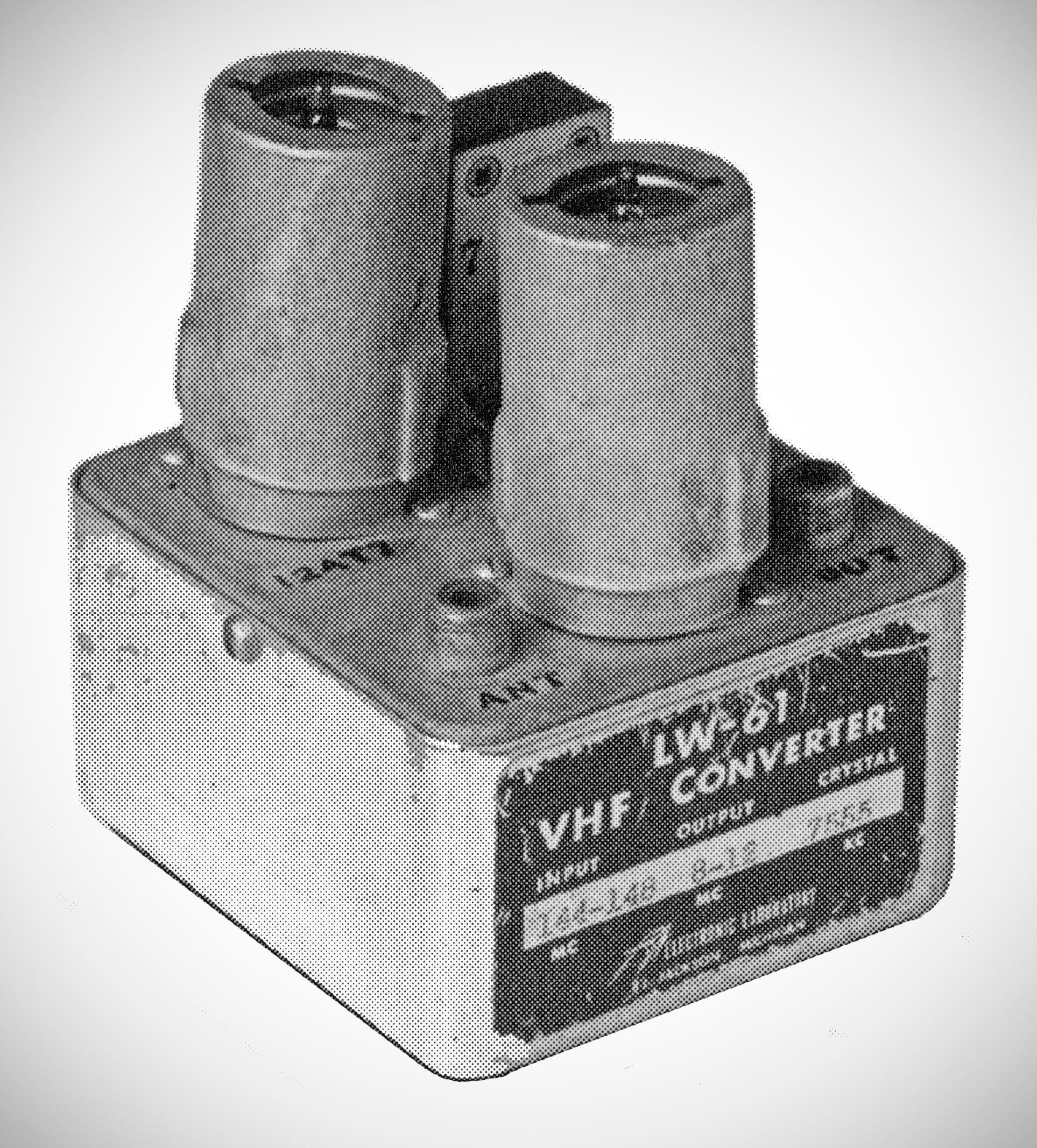

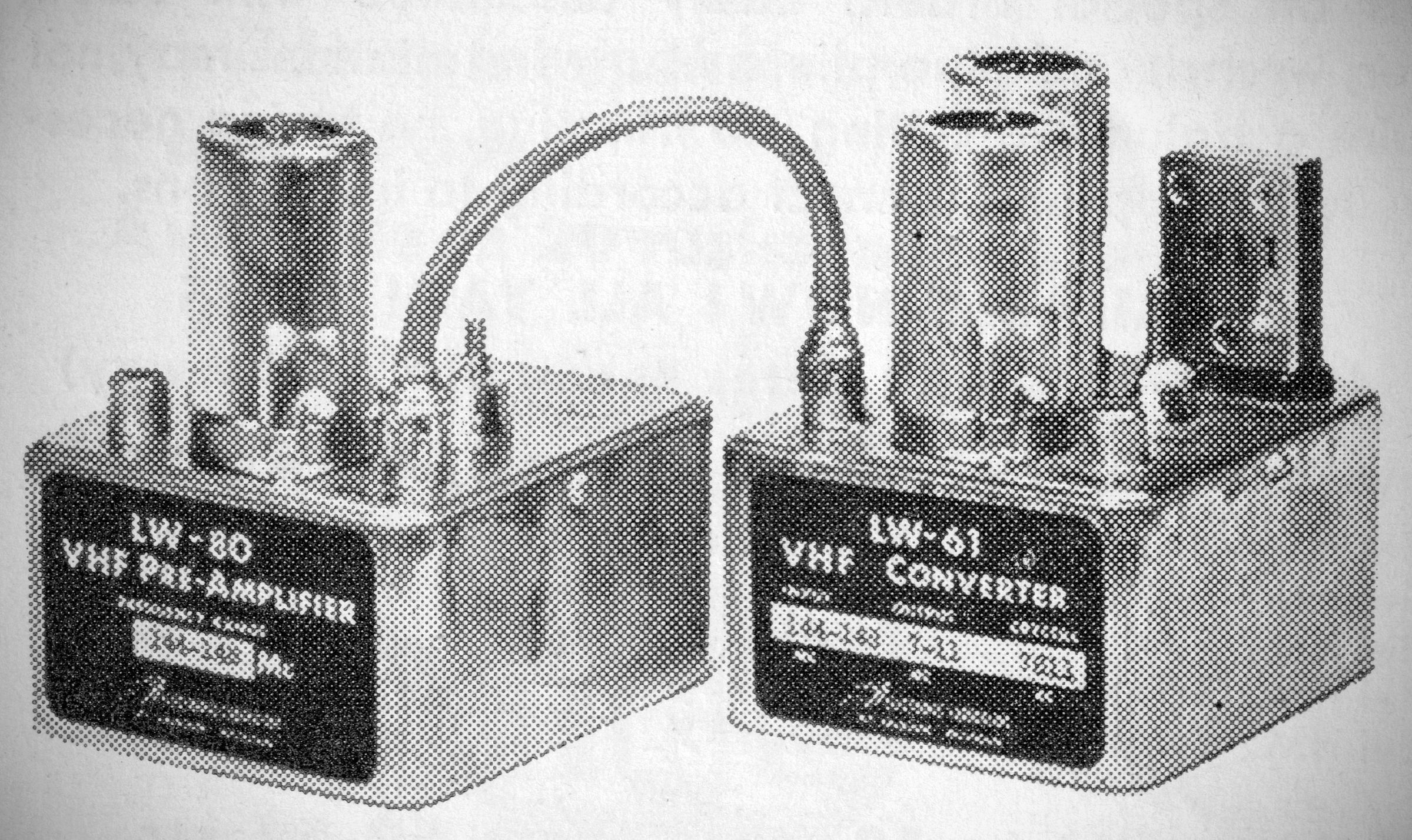

Electronic Laboratory of Jackson, Michigan made a line of 6 and 2 meter gear in the 1950s and early '60s .The LW-61 two meter converter was available with a variety of 4 MHz wide IF output ranges in the HF spectrum. A broadcast-band output could be used for mobile installations. The LW-61 was also made for 6 meters.

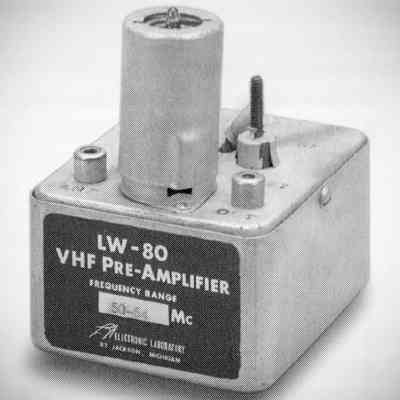

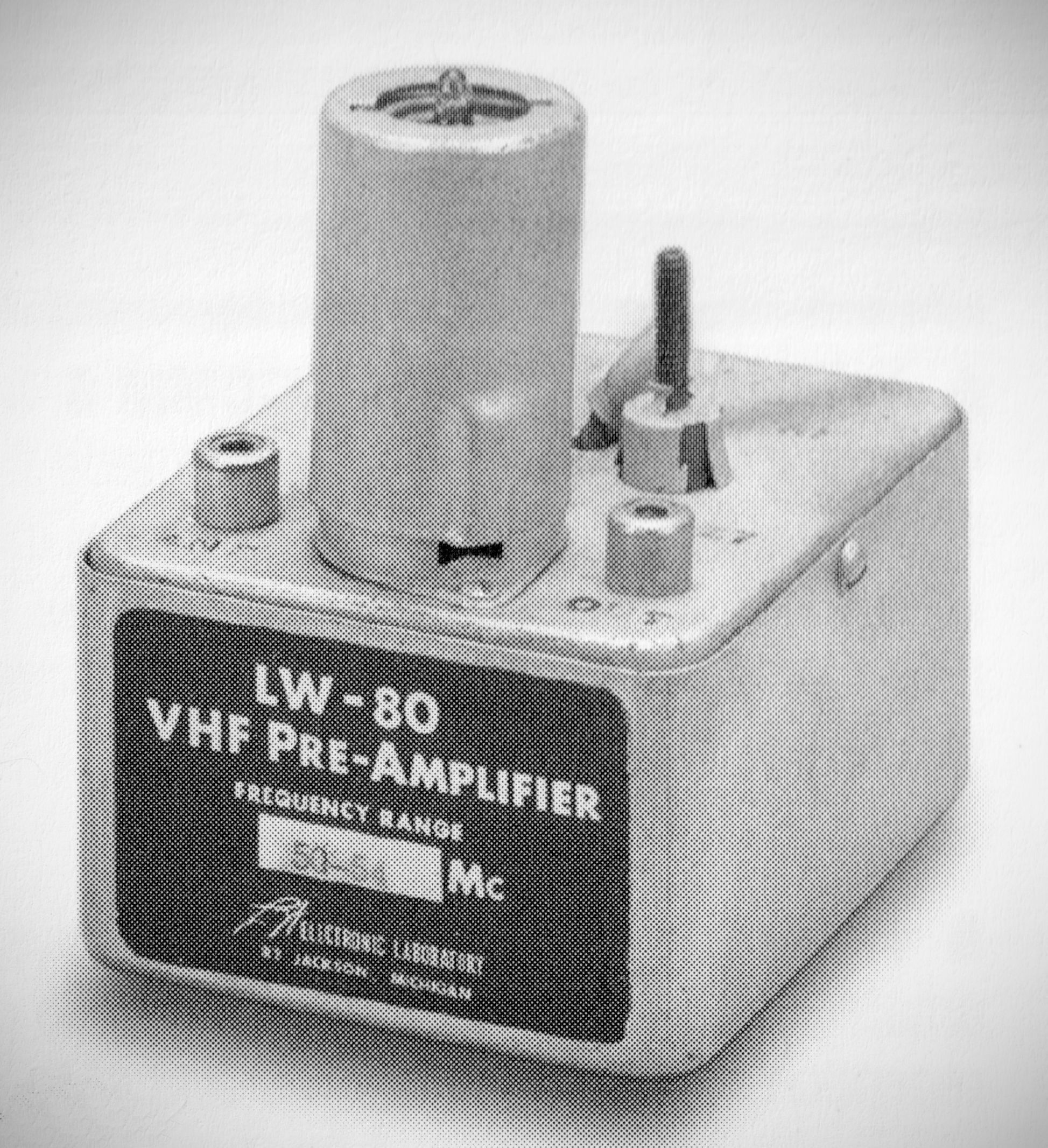

The LW-80 cascade VHF pre-amplifier had 20 dB gain and a 5 dB noise figure. The pre-amp in the photo is for 6 meters. The LW-80 was also made for 2 meters.
LW-61 Features
– 0.6-1.6, 7-11 or 14-18 MHz outputs available
– Other IF outputs on special order
– Grounded grid RF stage for Low Noise
– Broadband output
– For fixed or mobile use
– Use with any BCB or communications receiver
– Coax input and output plugs provided
– Requires only 5 ma B+ and 6 VDC
– 12 VDC available on special order
