Note
QST, Dec 1952, p. 123.

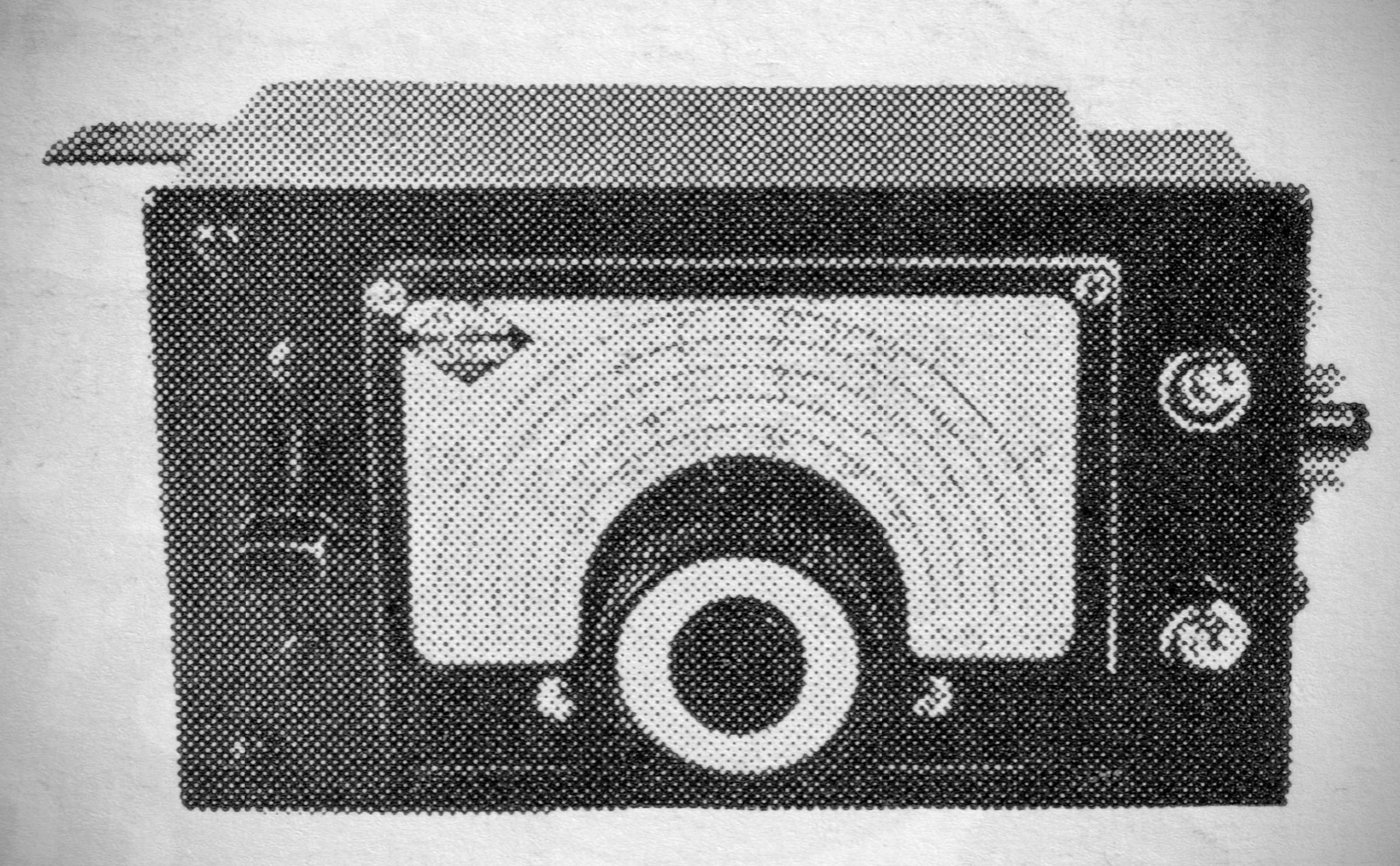

Plugs directly into the octal socket provided in the MT-52.
– Frequency Coverage: Provides RF output on 80, 75, and 40 meters.
– Calibration: Dial calibration is provided for the 80, 75, 40, 20, 15, 11 and 10 meter Amateur bands.
– Circuitry: Uses 6J6 triode to drive the 6AG7 in the model MT-52 transmitter.
– Operation: Unit is easily changed from VFO to crystal operation by a single switch.
– Indicators: 6-volt pilot light indicator.
Tube Complement: 1-6J6, 0B2.
Power Requirements: 0.45 amperes 6 volts DC or AC and 30 ma @ 300 volts DC.
