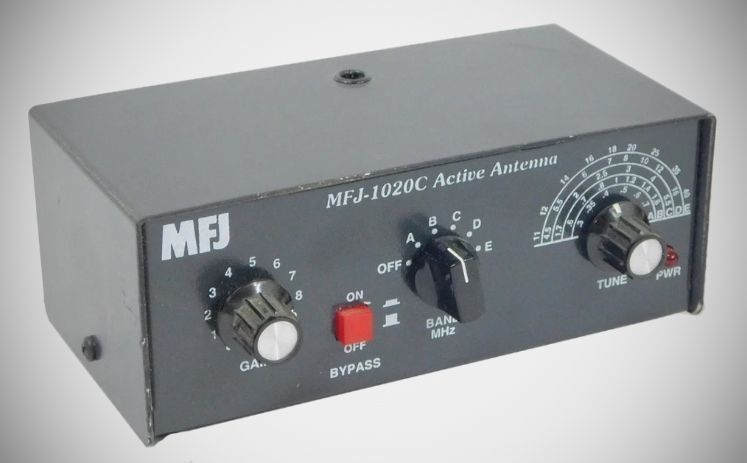

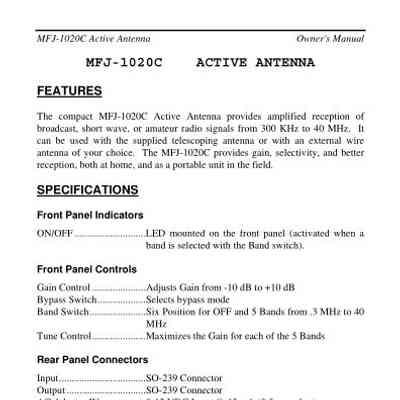

The compact MFJ-1020C Active Antenna provides amplified reception of broadcast, short wave, or amateur radio signals from 300 kHz to 40 MHz. It can be used with a supplied telescoping antenna or with an external wire antenna of your choice. The MFJ-1020C provides gain, selectivity, and better reception, both at home, and as a portable unit in the field.
Gain Control: Adjusts gain from -10 dB to +10 dB
Bypass Switch: Selects bypass mode
Band Switch: Six position for OFF and 5 bands from 0.3 MHz to 40
MHz
Tune Control: Maximizes the gain for each of the 5 Bands
Frequency Coverage: 300 KHz to 40 MHz

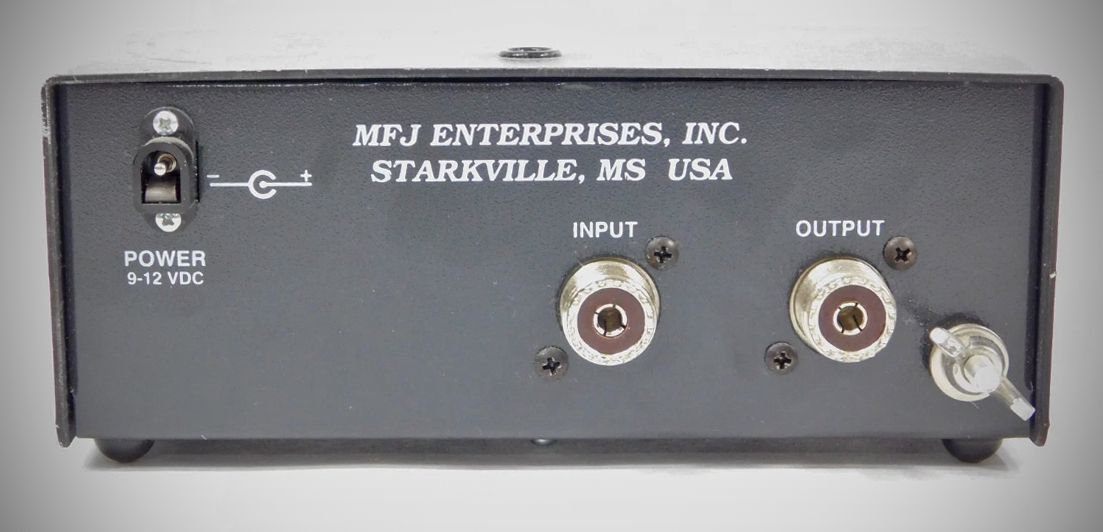

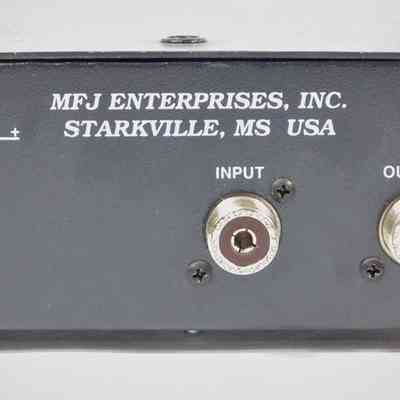

Antenna: 20" Telescoping Antenna - mounted through hole in the top (connected to input SO-239 connector). An external wire antenna plugged into the SO-239 input requires the removal of the telescoping antenna.
