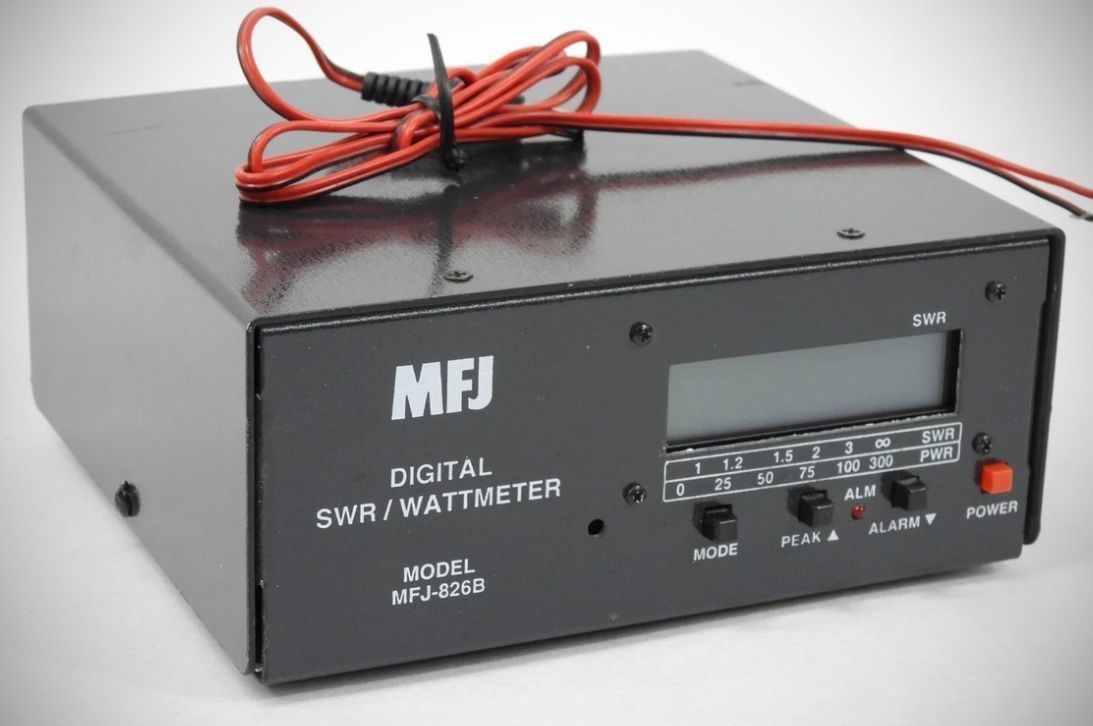

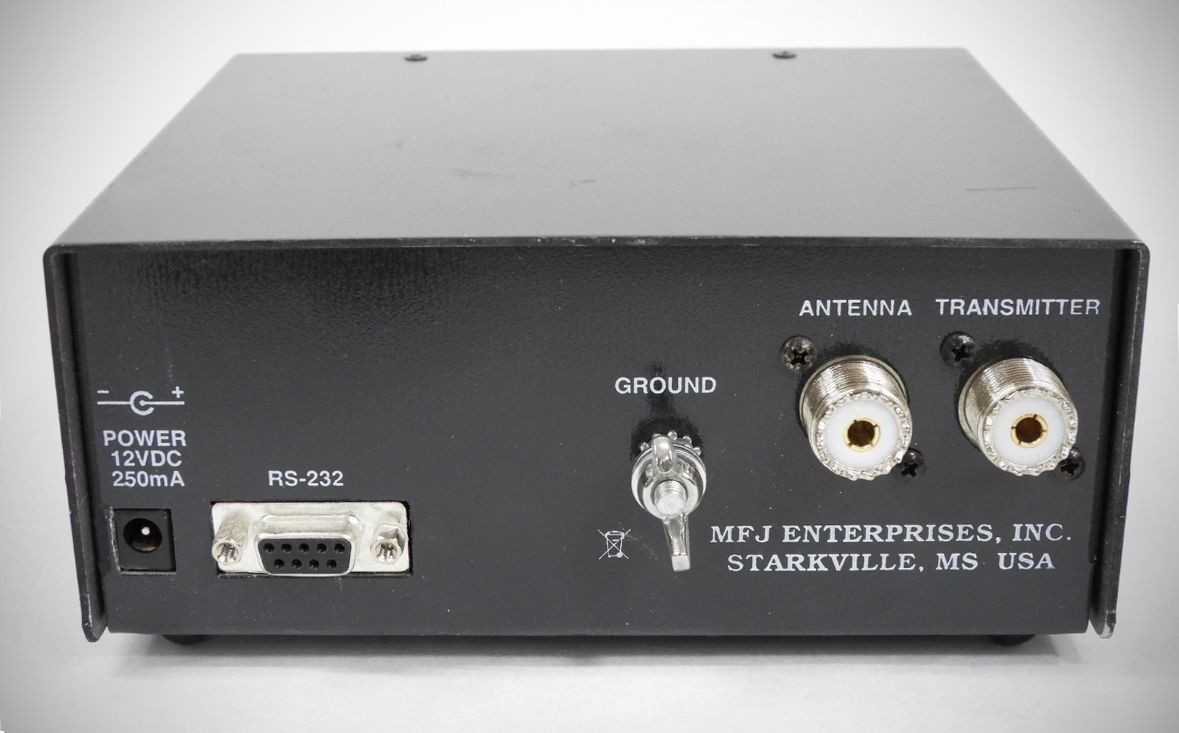

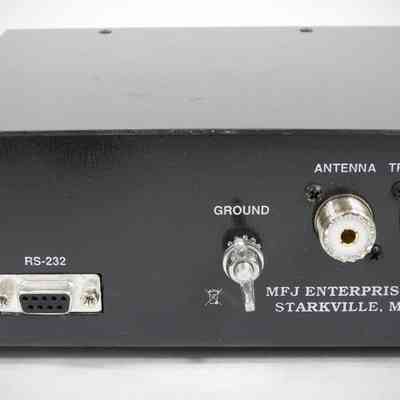

The MFJ-826B digital SWR/Wattmeter/Frequency Counter measures up to 1500 watts. It has three high-resolution ranges with accuracy in each range from 1.8 to 54 MHz. True peak or average forward and reflected watts, SWR and frequency can be simultaneously displayed. There are also auto-ranging bar meter modes to display forward and reflected power, SWR and power twin bar meters, or SWR only bar meter; SWR and forward power are also displayed numerically. PeakHold™ feature freezes the highest forward power displayed bar segment for one, two or three seconds.
These digital-analog displays make it visually easy to tune antenna tuners, amplifiers and transmitters. There are three high-resolution forward/reflected power ranges that are automatically selected: a QRP range (25 watts full scale), a mid-range (250 watts full scale) and a high-range (1500 watts full scale). TrueActive peak reading circuit gives true peak or average power on all modes. Built-in frequency counter gives any transmitter digital frequency readout in continuous carrier mode. The MFJ-826B enters a "sleep" mode when idle and when no transmit signal is present, turning off the microprocessor clock to avoid the generation of spurious signals.
Features
* Power range of 25, 250 or 1500 watts.
* 1.8 to 54 MHz continuous frequency coverage.
* Adjustable alarm SWR from 1.5 to 3.0.
* Multifunction backlit LCD display with contrast control.
* Numeric readings for frequency, SWR, forward and reflected power.
* Bar meters for SWR, forward and reflected power with auto-ranging.
* Peak or average power mode.
* Built-in frequency counter.
* Built-in bootloader for field upgradeable firmware.

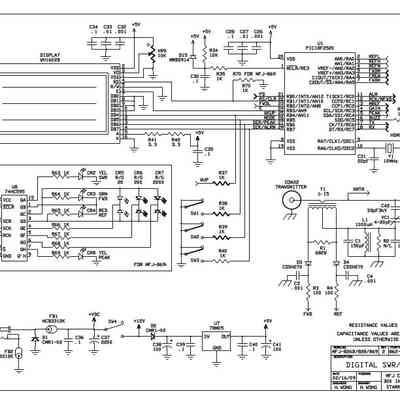

Specifications
RF power range: 25, 250 or 1500 watts
Frequency range:1.8 to 54 MHz continuous coverage
Frequency counter accuracy: ±1 kHz
A/D conversion resolution: 10-bit
Forward power resolution: 0.1 for < 100 watts; 1 for watts
Reflected power resolution: 0.1 for < 10 watts; 1 for watts
SWR display resolution: 0.01 for < 10:1; 0.1 for
Power bar meters resolution: 60 segments
SWR bar meter resolution: 56 segments
Display: 2 line x 16 charactor backlit LCD
Power supply requirement: 12-15 volts DC
Current consumption: 50 mA or less
