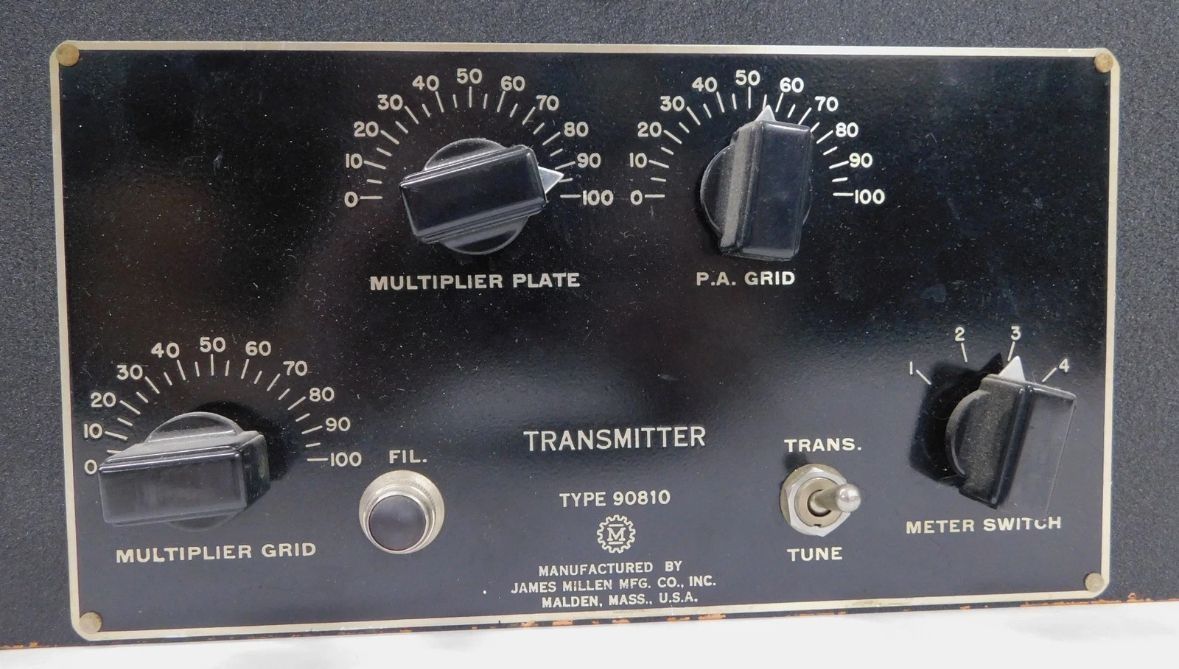

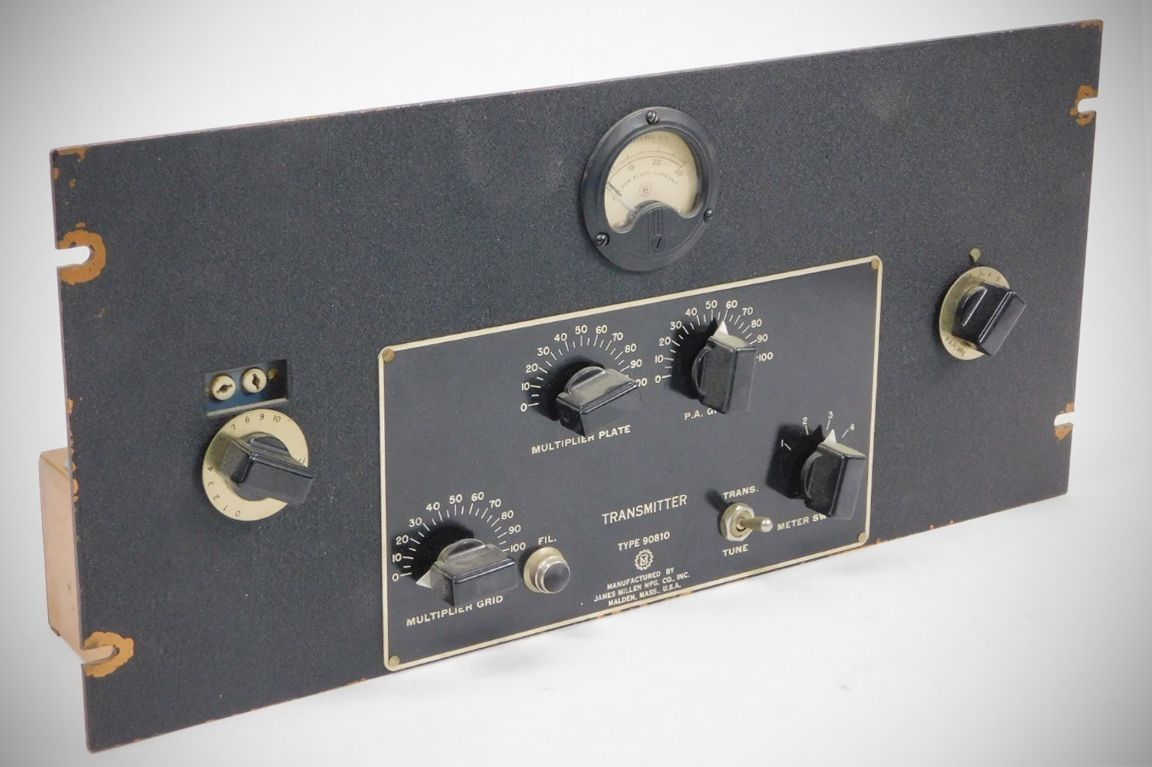

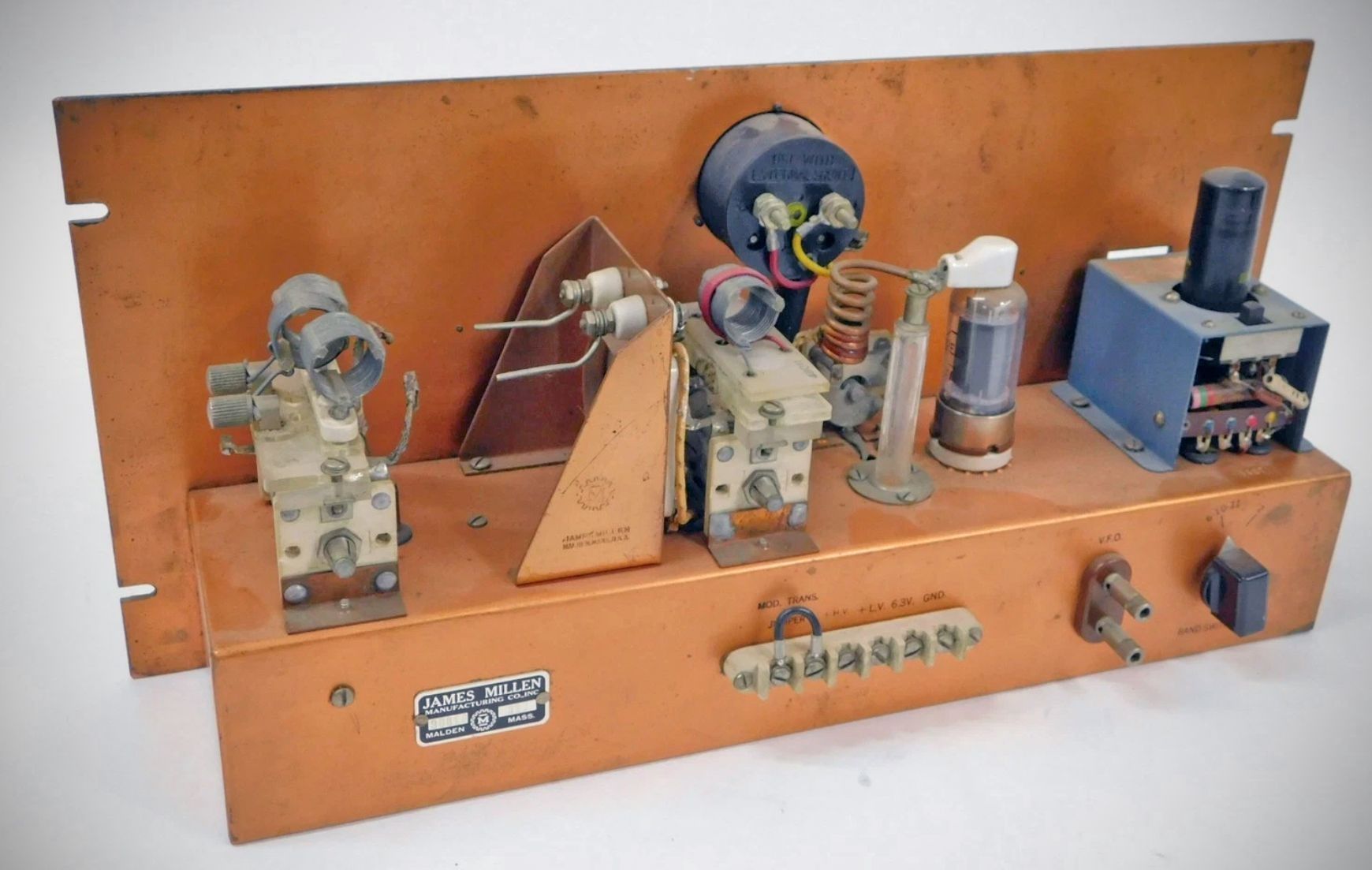

The 90810 transmitter worked on 20 and 10 meters but could also be used on 6 and 2. Power output from its 829B final was 75 watts. Behind the panel, the transmitter's component parts were a Bliley CC0-2A crystal oscillator and Millen's 90811 amplifier. It used plug-in coils.
Higher output up to 144 watts is possible with forced air cooling. Band switching is accomplished with Millen 48000 series coils.
Crystal frequency Output
25–27 MHz 50–54 MHz
24–24.6 MHz 48–49.3 MHz
13.6–13.8 MHz 27.1–27.6 MHz
14–14.85 MHz 28–19.7 MHz
Sold less tubes and crystals.Requires external power supply such as Millen 90281, or equivalent.
Power requirements: 600–750 VDC @ 300mA
Tubes: (1) 6AG7, (1) 2E26, (1) 829B
