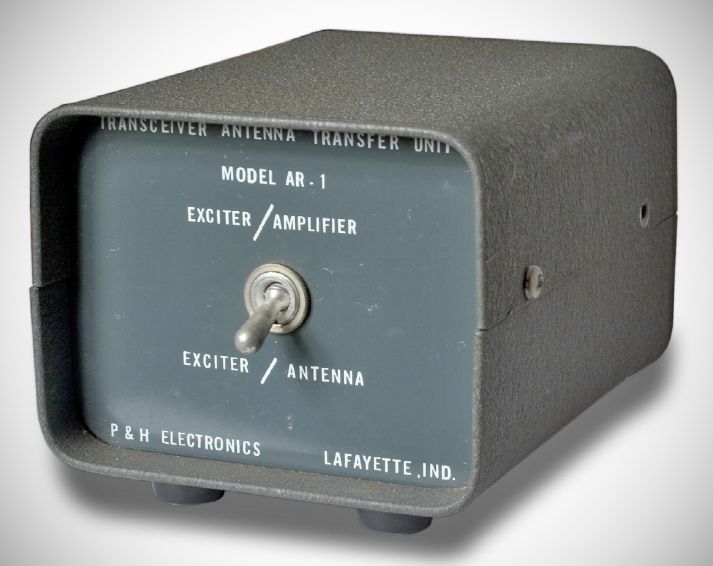

The AR-1 transfers the antenna to the transceiver while receiving and provides the necessary switching to connect the exciter to the amplifier, and the amplifier to the antenna when transmitting.
A front panel switch also permits the exciter to operate straight through to the antenna. The relay is shock-mounted and the case is insulated to reduce noise. Standard SO239 connectors are provided for low impedance coax lines.
Insertion loss: Transceiver output to amplifier input, less than 1.02:1 SWR, 3 to 30 MHz. Amplifier output to antenna, less than 1.12:1 SWR, 3 to 30 MHz.
Requires 6.3 VAC (6.3V jack on KWM-2) and normally open auxiliary contacts on the exciter relay. (ANT. RELAY jack on KWM-2). The AR-1 may also be used as a conventional antenna change-over relay.
