Note
The Palstar AT2K is an upgraded version of the AT-1500CV. Improvements include better power handling, enhanced metering (a built-in PM2000A watt meter), and the addition of the 6 meter band.
Features
– Circuit Design: It uses a T-type impedance matching circuit configuration.
– Inductor: Features a precision 18 µH continuously variable ceramic roller inductor with a silver-plated wheel and shaft.
– Frequency Coverage: It covers 1.8 MHz to 54 MHz. It includes a relay-switched add-on inductor specifically for 160-meter operation and is compact enough for 6-meter use.

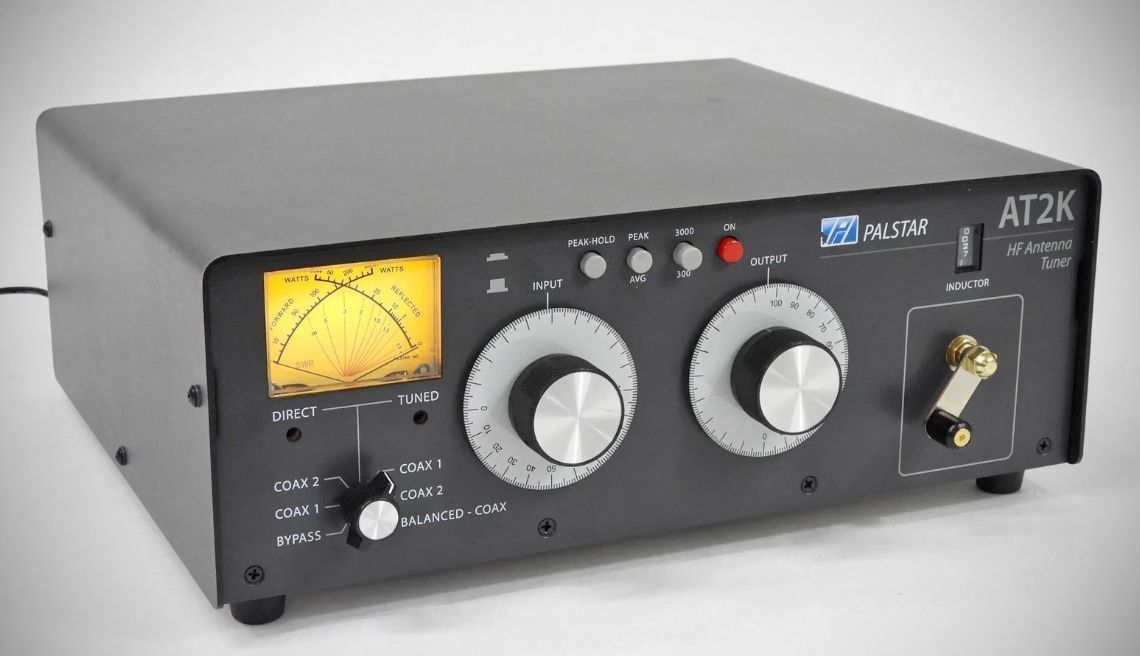

– Metering: Includes a dual-movement cross-needle meter that displays forward and reflected power, along with SWR. It features an upgraded PEAK and PEAK HOLD function.
– Tuning Controls: Precision tuning is achieved through 6:1 ratio Vernier dials for input and output capacitors, while a crank handle with a mechanical counter facilitates coarse inductor adjustments.
Specifications
– Frequency Coverage 1.8 — 54 MHz
– Power Maximum 2000 W PEP SSB, 1500 W single tone continuous
– Impedance Range 20 to 1500 Ω 160 m to 10 m (assuming resistive
load) Reduce power for lower Z range
– Balanced Output 4:1 current type balun
– Metering Dual movement cross needle power and frequency
compensated coupler
– Input & Antenna Tuning: Variable capacitor 400 pF 4.5 KV 6:1 Vernier Drive
– Inductance: 18 μH roller inductor; 12 ga. wire wound on steatite
ceramic core, silver plated bar/wheel. 10 μH fixed toroid inductance, #14 Teflon wire switched in and out of circuit by front panel switch-controlled relay

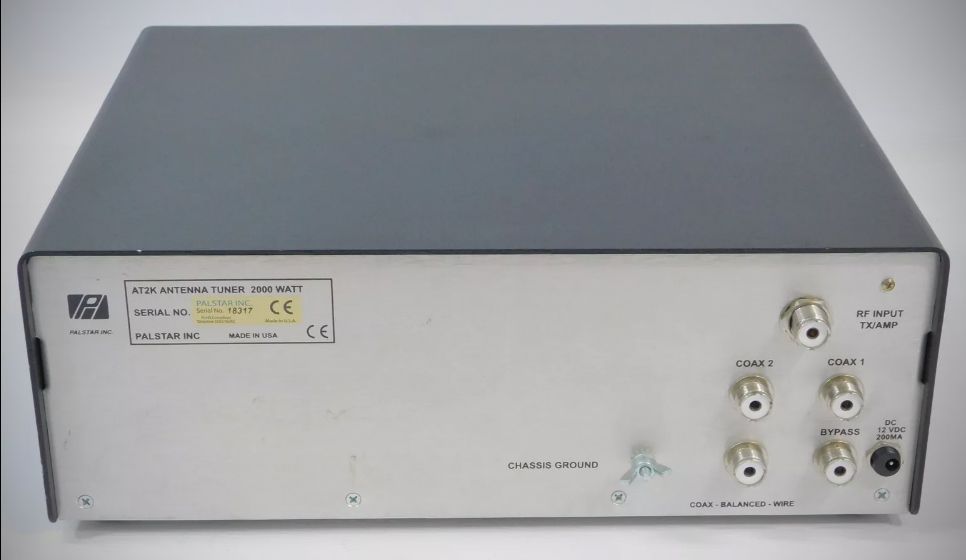

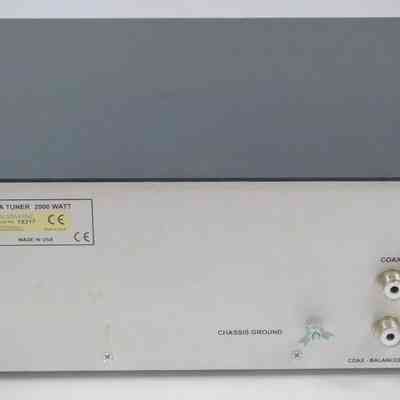

– Antenna Selector Switch: 6 position:
Coax 1 tuned and tuner bypass
Coax 2 tuned and tuner bypass
Bypass and balanced antenna
– Switch wafers are ceramic (3kV rated)
– Power Range Switch: 2 position 300 W /3000 W
Power Requirements: 12 VDC at 200 ma
