QST, Nov 1967, p. 167.
QST, Jan 1968, p. 151.
73, Dec 1969, p. 116.

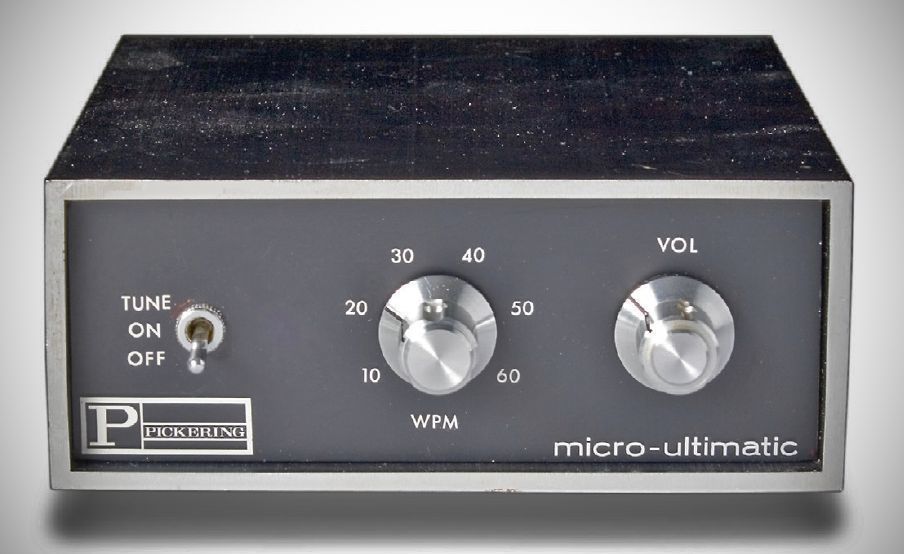

Pickering advertised its Micro-Ultimatic K-1 as the first IC electronic keyer. It operated in either the conventional or squeeze keying modes. The K-1’s linear speed control had a range of 10–60 wpm. The monitor was built-in, and either relay or transistor outputs were offered as options. It was first described in June, 1966, 73 magazine, though the production model was extensively redesigned.
Features
– Dot and Dash Memories
– Squeeze Paddle Operation
– Integrated Circuit Construction
– Linear Speed Control 10-60 Wpm
– Built-in Monitor and Amp
Specifications:
– Speed: 10-60 WPM
– Input: 3-wire key paddle
– Output
K-1R: high-speed reed relay
K-1T: 150-volt blocked-grid keying transistor
– Internal monitor oscillator/amplifier, jack for patching to receiver
Power: 105/125 VAC, 60 Hz, 8 watts.
References
Construction article. 73, Jun 1966, p. 6.
