RCA 151, 151-2

Object/Artifact

-

Radio Alpha

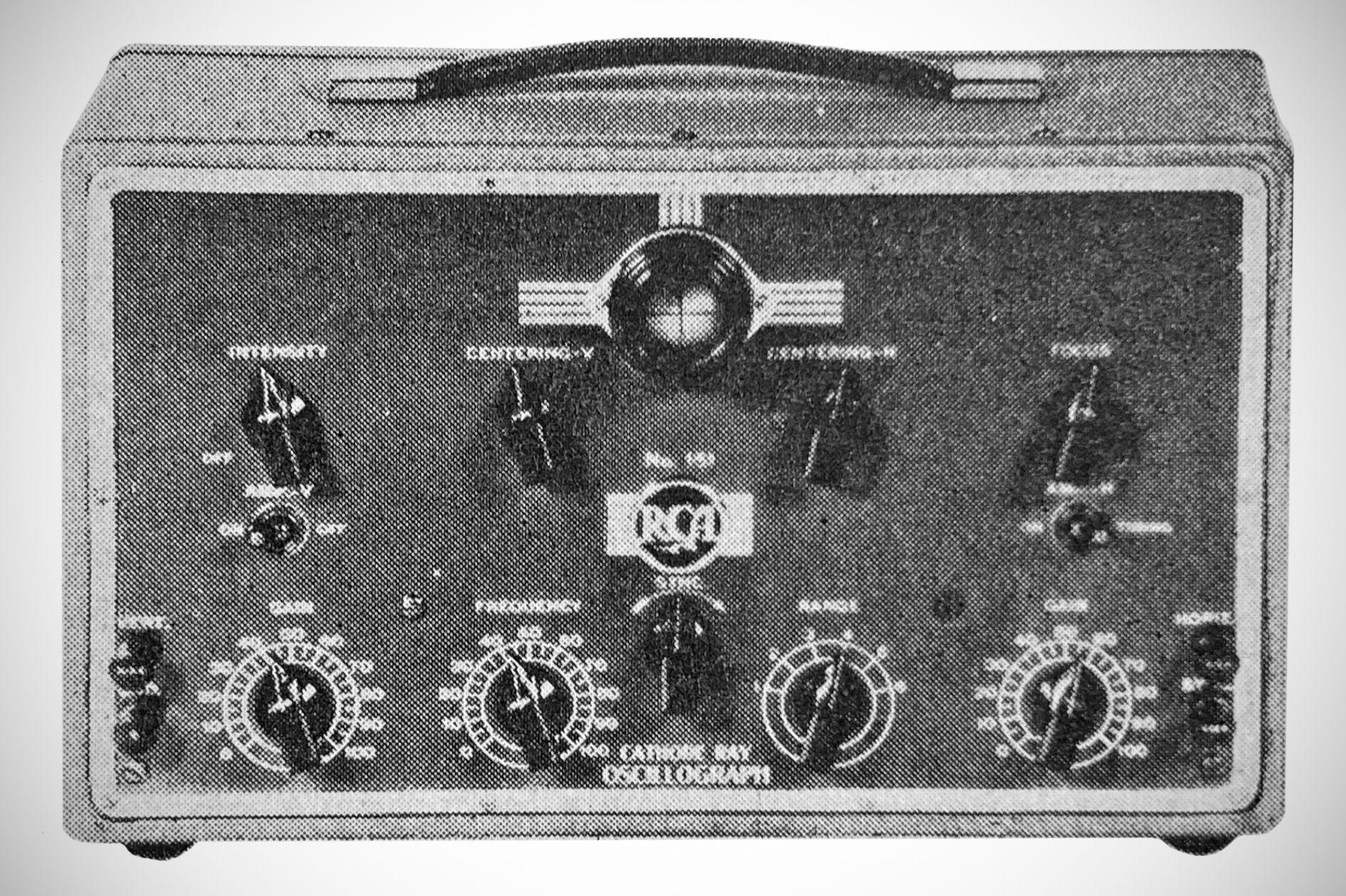

Model 151-1: Image: Service magazine, Aug 1938
Model 151-1

Image: Service magazine, Aug 1938

Name/Title

RCA 151, 151-2

Description

1" and 2" Oscilloscopes

Category

Scope

Made/Created

Manufacturer

Radio Corporation of America

Date made

1937 - 1940

Dimensions

Height

9-1/4 in

Width

13-3/4 in

Depth

7-1/2 in

Weight

14-3/4 lb

Valuations

Value

$47.50

General Notes

Note

Radio, Mar 1937, p. 88. Radio News, Mar 1927, p. 549. (a few specs) QST, Feb 1938, p. 122. Service, Aug 1938, back cover. Radio Craft, Oct 1938, p. 226. QST, May 1940, p. 103. Specifications Tubes: (1) RCA-902 (2-inch) OR (1) 913 (1-inch), (1) RCA-885, (2) RCA-6C6, (1) RCA-80 Sensitivity (2 inch): 0.5 volts (RMS) per inch. Sensitivity (1 imch): 1.75 volts (RMS) per inch. Amplifier Range and Gain: Flat 20-15,000 Hz, gain 50. Timing Axis (Horizontal Sweep): 30-10,000 Hz. Power Consumption: 30 watts. References Brief description. Radio News, Sep 1937, p. 139.
