Faust Gonsett, W6VR, started Sideband Engineers in 1962 after retiring from the company that bore his name (Gonset). SBE's first product was an innovative transceiver, the SB-33, and a line of accessories soon followed. The SB-34 was announced in 1964. The new 135 watt transceiver was solid-state except for the driver and finals and covered 80-15 meters.
Perhaps the most significant upgrades were the inclusion of a built-in AC/DC power supply (selected with different power cords), and a Collins mechanical filter.

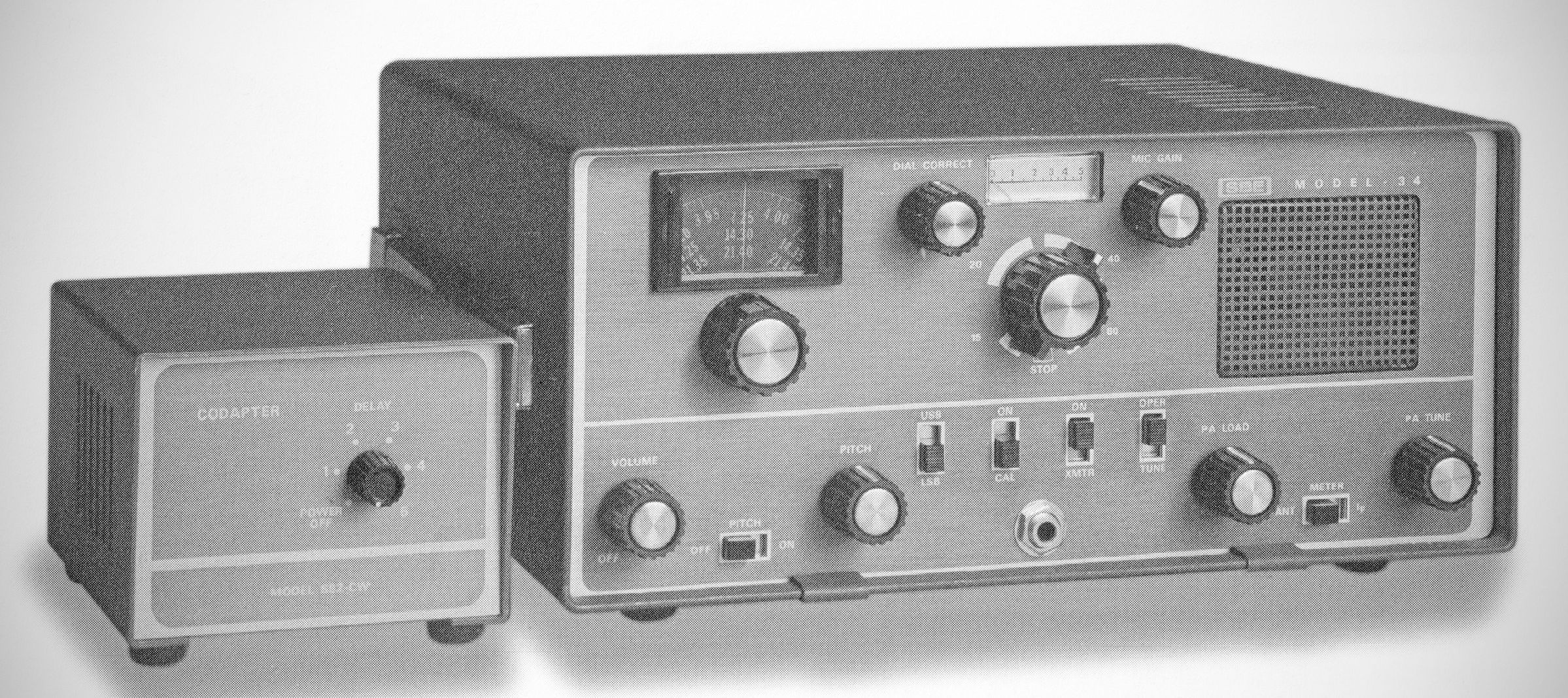

The optional Codaptor enabled CW by injecting a keyed tone at the SB-34's mic input.

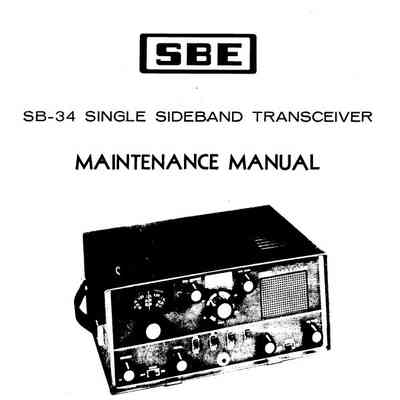

Here are the specifications transcribed from Section 1.2 (SB-34 Transceiver Specifications) of the manual:
Specifications
– Type of Emission: Single sideband, suppressed carrier, upper or lower sideband selectable from front panel
– Frequency Range: 3.775–4.025 MHz, 7.05–7.3 MHz, 14.1–14.35 MHz, 21.25–21.45 MHz
– Power Consumption:
117 VAC: receive 35 watts; transmit (single tone) 165 watts
12 VDC: receive, XMTR switch off, 0.6 amps; receive, XMTR switch on, 3.6 amps; transmit (single tone) 14 amps
– Power Output (PEP):
80, 40, 20 meters: 60 watts minimum
15 meters: 50 watts minimum
– Carrier Suppression: 50 db
– Unwanted Sideband Suppression: 40 db at 300 cycles
– Distortion Products: Down at least 25 db
– Spurious Responses: Down at least 40 db
– Antenna Output Impedance: 40 to 100 ohms, unbalanced, VSWR not to exceed 2:1
– Sensitivity: Less than 1 microvolt for 10 db signal-to-noise ratio, all bands
– Selectivity: 2.1 kHz at 6 db down, 4.5 kHz at 60 db, both transmit and receive
– Audio Output: 2.0 watts at 10% distortion, 3 watts maximum
References

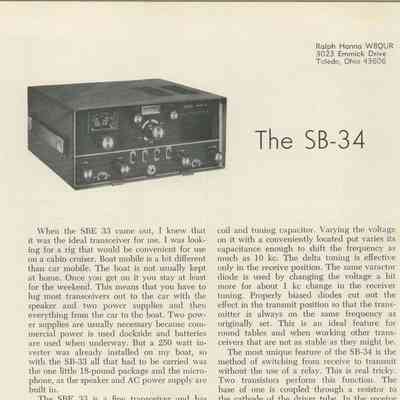

Review. 73, Aug 1965, p. 68.
See Raytheon's notes: QST, Jan 1967, p. 103.
