Note
QST, Oct 1970, p. 131.
– 5 bands: 3.5-4, 7-7.5, 14-14.5, 21-21.5, 28-28.5, 28.5-29, 29-29.5, 29.5-30 MHz.
– 260 watts PEP input.
– Built-in power supply, 12VDC and 117VAC.
– Selectable SSB: LSB, USB CW w/zero car. shift.
– CW keying-shaped-carrier re-insertion type.
– Offset-no leapfrogging on transceive.
– Double conversion receiver.
– Crystal lattice filter in 2nd IF with shape factor of 1:1.9
– 97% all solid state! 30 transistors-8 FET's, low noise hot carrier diodes in balanced mixer.
– Only 2 tubes: Type 8417 hi-fi types matched for low distortion. Not TV sweep types.
– Accessories that fit inside of cabinet w/bottom of cabinet controls include VOX, 25kHz calibrator.

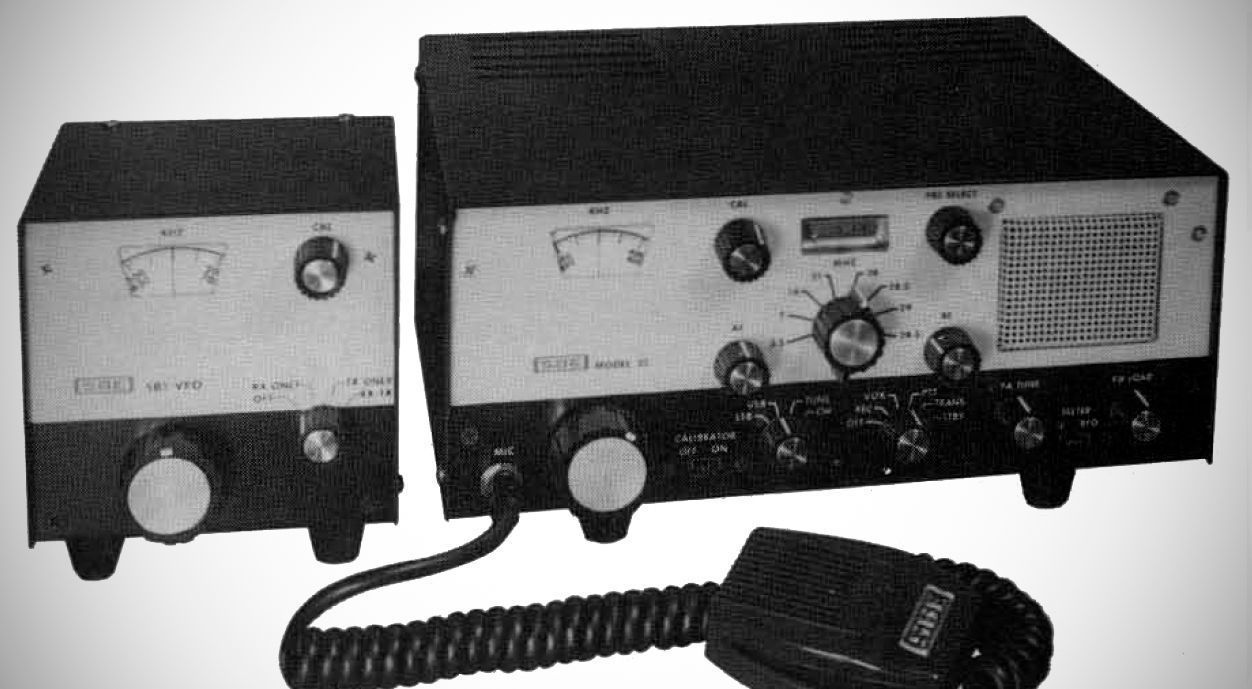

– External VFO accessory.
