Note
QST, Jan 1965, p. 105.
QST, Aug 1966, p. 152.
QST, Dec 1969, p. 170.
QST, Jul 1971, p. 114. (these could be remainders)

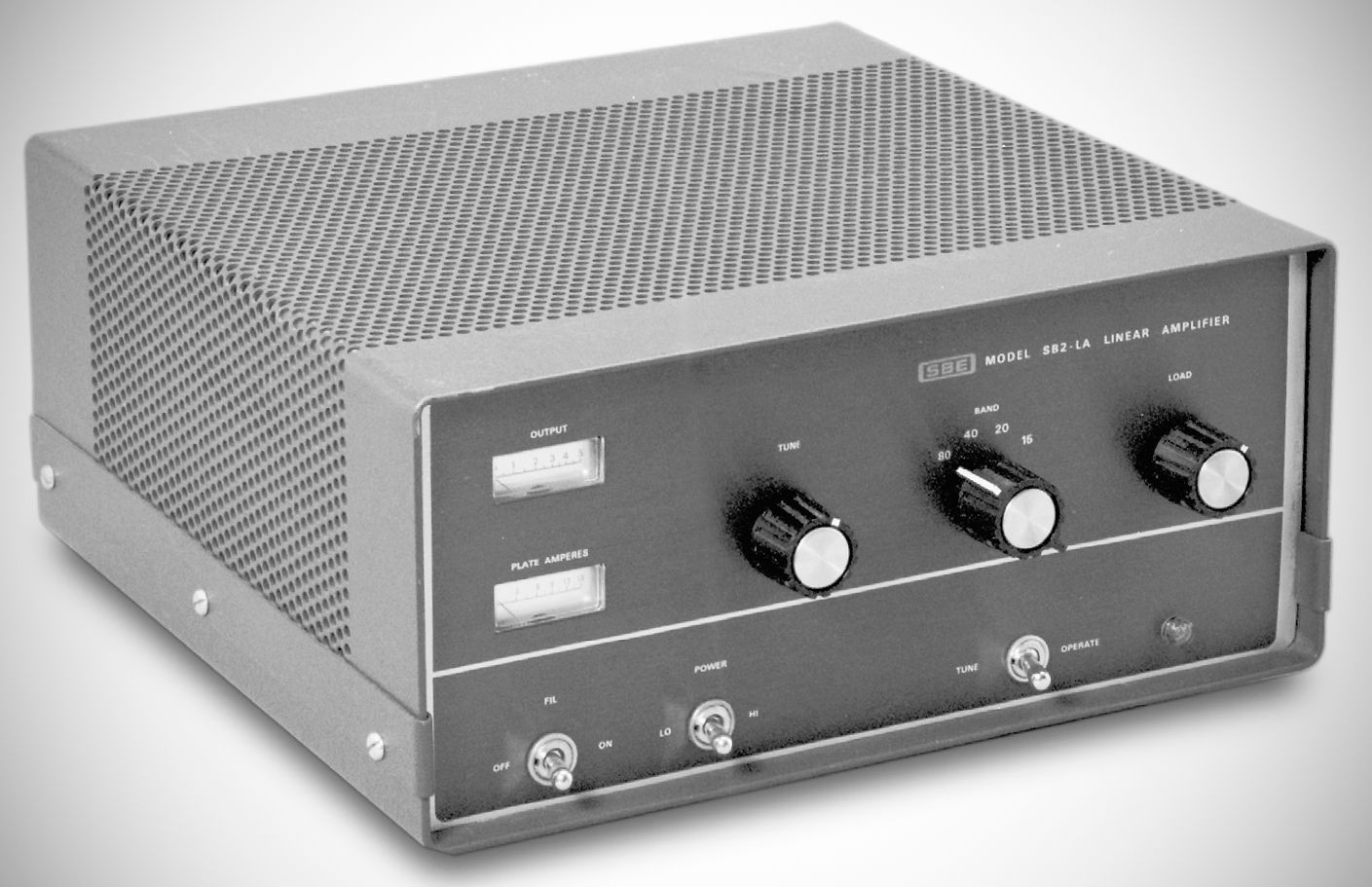

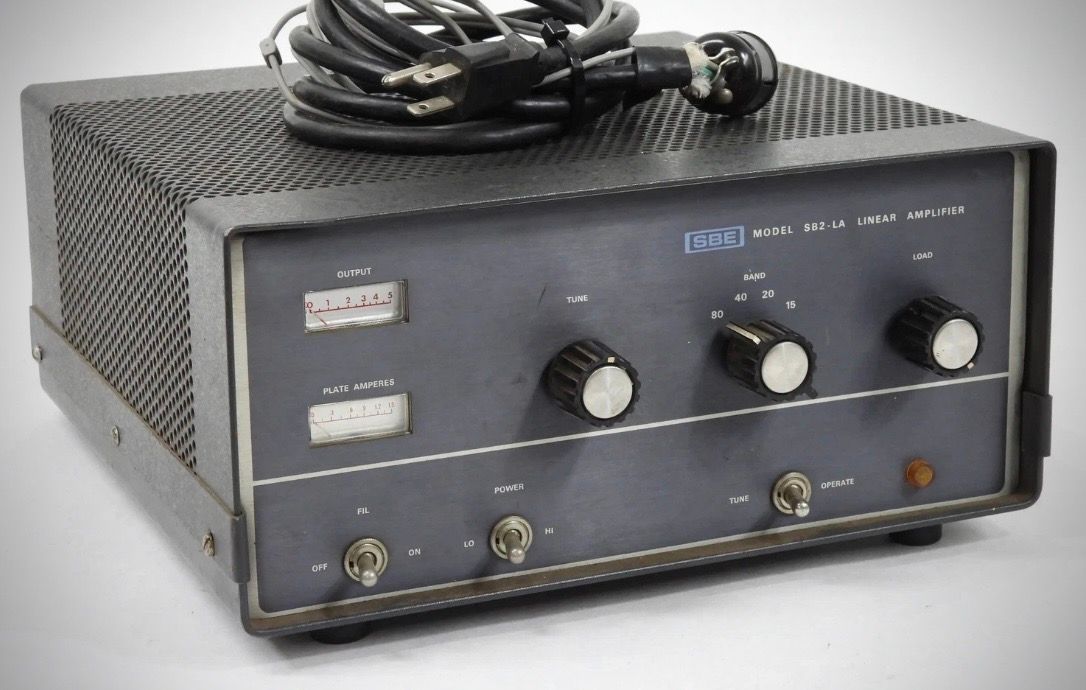

The SB-2LA was the companion linear amplifier for SBE’s SB-34 transceiver. It used six 6JE6 tubes in parallel and was rated at a full kilowatt. It had an internal solid-state AC supply, and the optional SB3-DCP inverter was available for mobile operation.
Specifications
– Frequency Range: Amateur bands within the spectrum 3.8 to 21.45 Mc/s
– Input Power Ratings:
SSB: 1000 watts peak
AM: 300 watts
CW, FM, FSK: 400 watts
– Input Impedance: 75 ohms, resistive
– Drive Requirements: 65 watts maximum
– Output Impedance: 50 ohms, unbalanced, VSWR not to exceed 2:1

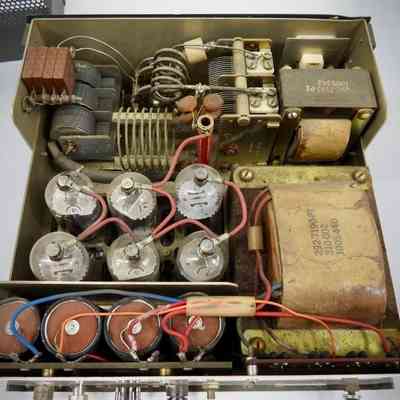

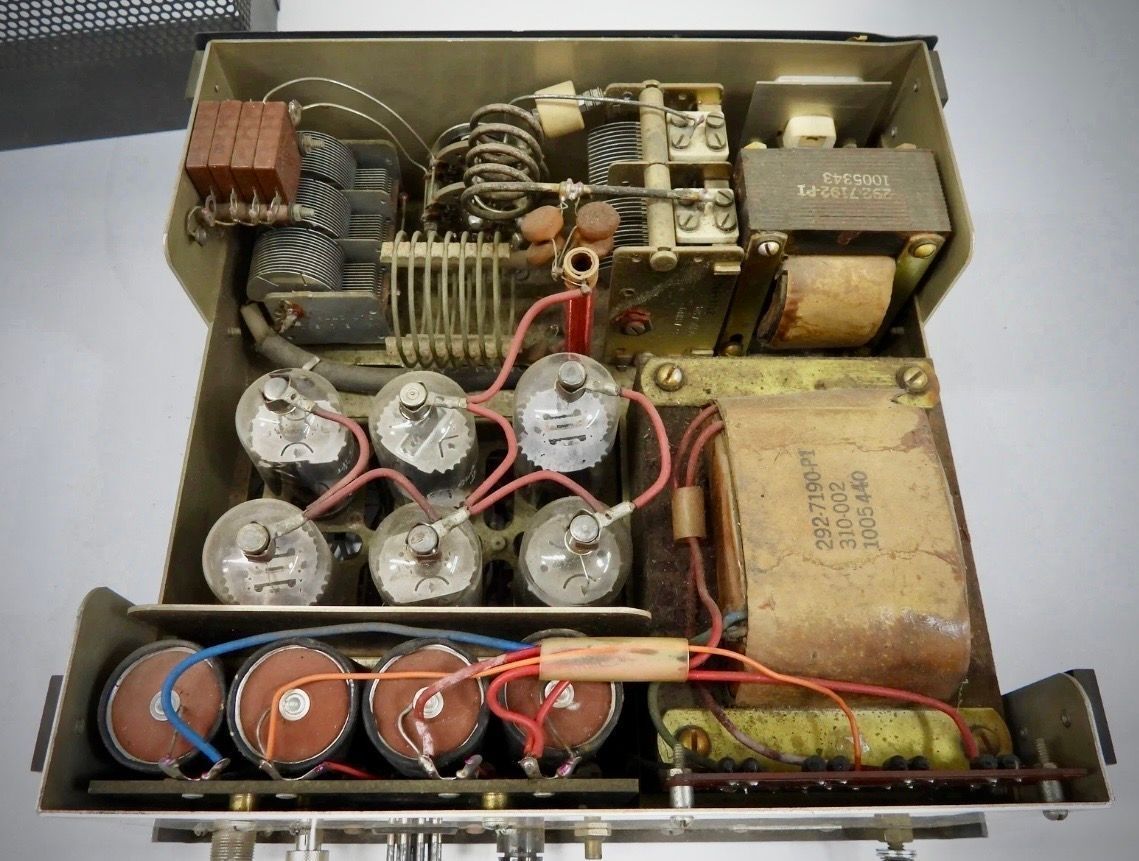

Tube Complement: (6) 6JE6 tubes
– Power Requirements:
117V VAC, 50/60 Hz, 1.4 kVA peak
12.6V VDC, 110 amp peak when operated with SB3-DCP mobile inverter
