QST, Sep 1960, p. 161.
QST, Nov 1961, p. 180.
QST, Aug 1962, p. 144.
QST, Feb 1963, p. 140.

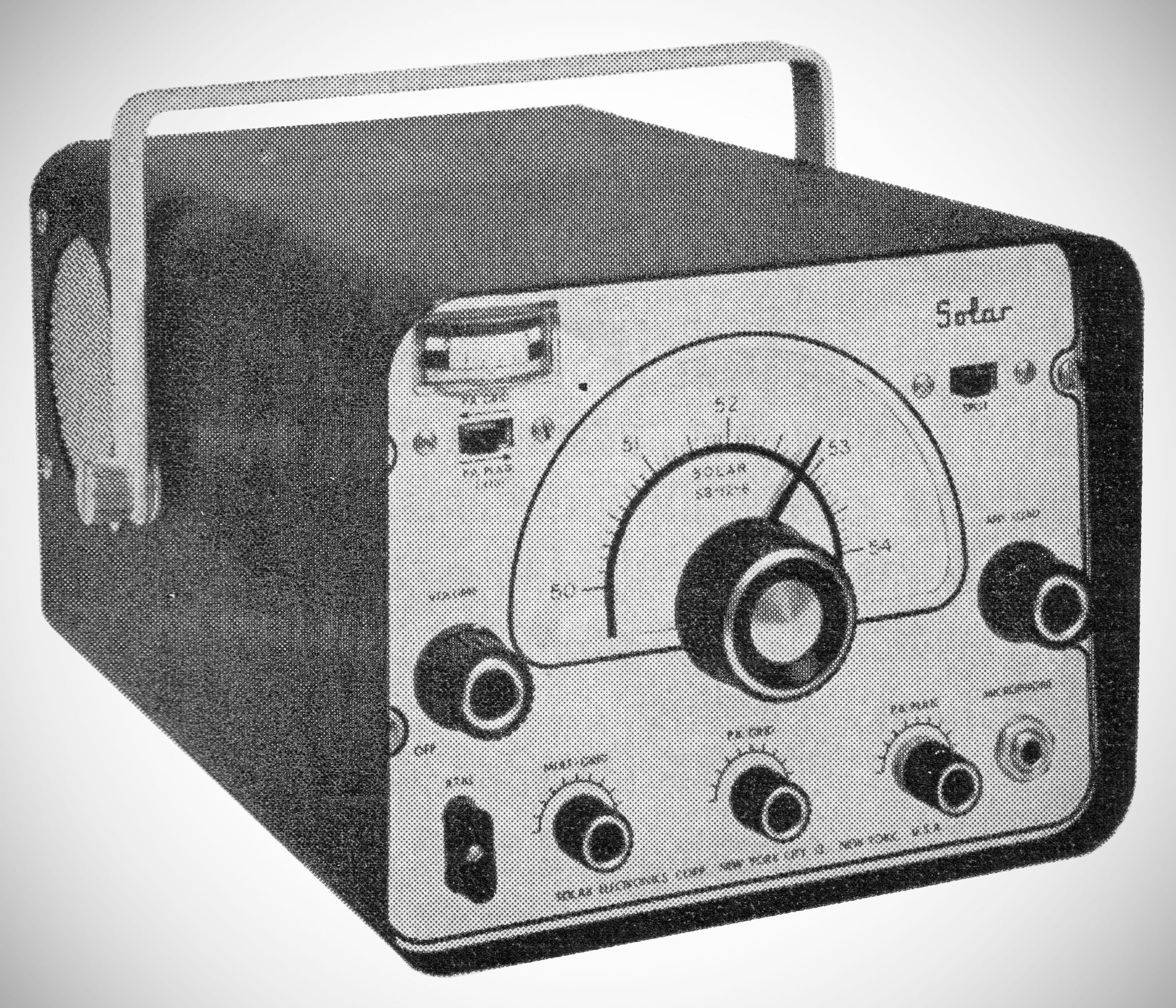

Features and Specifications
Receiver
– Better than 0.5 microvolt sensitivity.
– 10 kHz selectivity (6 db down).
– Double conversion for selectivity, image rejection.
– Voltage regulated oscillators for stability.
– Up to 5 watts audio output for external speaker.
– Self contained speaker.
– Large 6:1 vernier dial
– Jack for headset output.
– Built-in noise limiter.
– Spotting switch for zeroing receiver and transmitter.
Transmitter
– 12 Watts input to a 5763.
– High efficiency plate and screen modulation.
– Uses 8 MHz crystals (FT-243 type).
– Provision for VFO operation.
– Press-to-talk.
– Metered.
– Microphone: crystal, ceramic or carbon
– 50-75 ohm output (will match standard auto receiving whip).
Power requirements
Built-in vibrator power supply operates on 6 and 12 VDC, or 110 VAC. Separate power cords required for each voltage.
