Note
QST, Jul 1964, p. 131.
QST, Apr 1965, p. 125. Good photo and specs.
Allied Radio catalog 1966 (copyright 1965), p. 362.
QST, Jan 1966, p. 107.
QST, Mar 1967, p. 135.
QST, Jul 1971, p. 114. (these could be remainders)

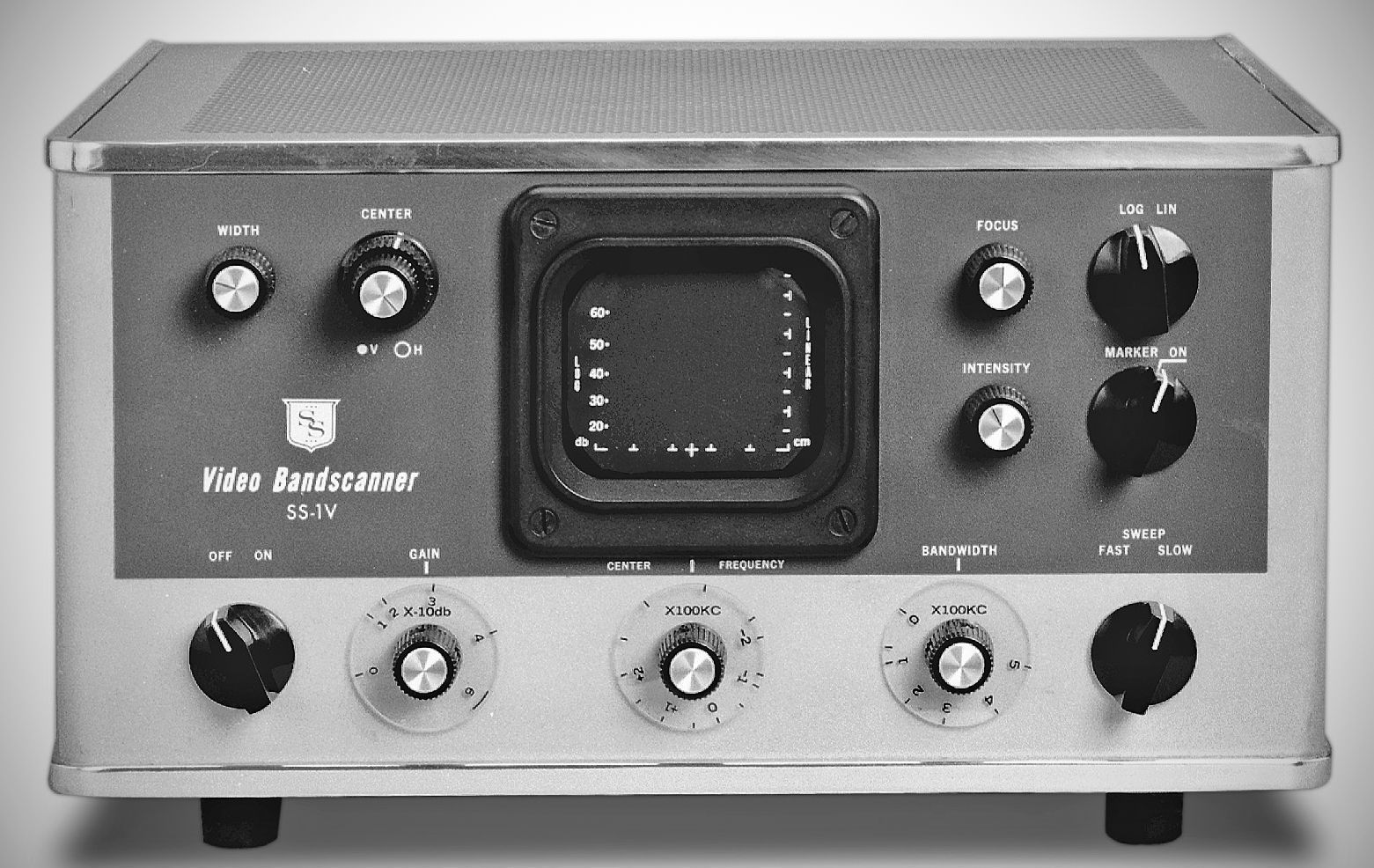

The SS-1V Video Bandscanner was made to use with the Squires-Sanders SS-1R or SS-IBS receivers. It could display all signals on the 500 kHz band segment in use or narrow its scope to only 4 kHz. It could also be used to analyze both received and transmitted signals.
When used with the SS-IBS, shows all signals in the band in use, or any portion of the band can be expanded to full screen for detailed examination. Both linear and logarithmic displays are provided. A marker pip constantly shows the exact frequency to which the receiver is tuned. The sharp resolution of this unit permits observation and measurement of two AM sidebands displays only 2.5 kc. from the carrier. Provision is made for transmitter monitoring or analysis.

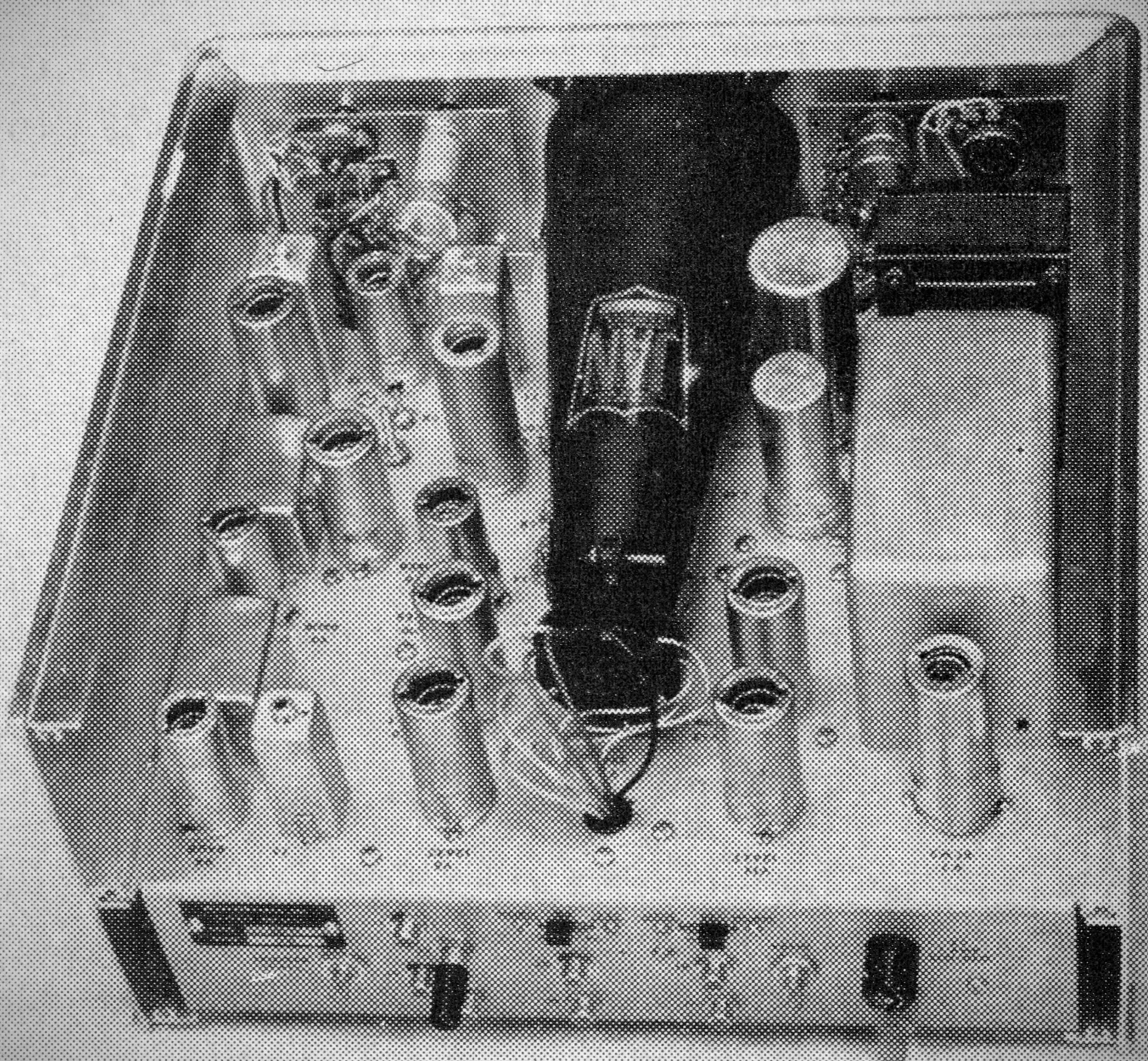

The SS-1V had 14 tubes and a dozen solid-state diodes.
