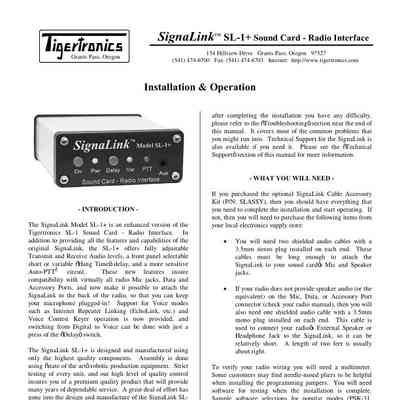

The SignaLink SL-1+ provides all the features of our original SignaLink Model SL-1, "plus" more. With full support for all radio Mic, Data, and Accessory Ports, the SL-1+ can be attached to the radio's Mic jack, or to the back of the radio (Data or Accy Port), so that you can keep your microphone plugged in. This permits easy switching from Voice to Digital operation (including SSTV).
In addition to supporting all available Digital modes, the SignaLink SL-1+ supports voice modes such as Internet Repeater Linking (EchoLink®, VOIP, etc.), Remote Base, and Voice Keyer operation. Performance on these modes has been optimized by improving the sensitivity of our Auto-PTT™ circuit, and by the addition of a front panel selectable Variable Transmit Delay. This variable delay is set at the factory for typical Voice applications, but can easily be adjusted to suit the operator's preference.
Cables are available for all of the common base/mobile Mic, Data, and Accessory Ports. With the exception of our 13-pin cables, all cables are universal, and will work with any radio that uses the same connector type. 13-pin cables are available in two specific configurations, one for Kenwood radios, and one for ICOM radios (they are not interchangeable).
BASIC FEATURES
No Serial Port Required - All SignaLink models incorporate a unique Auto-PTT™ circuit that eliminates the need to connect to a computer Serial RS-232 Port like other units. The Auto-PTT™ circuit automatically detects transmissions from the sound card and activates the radio's PTT circuit. A front panel "Delay" switch is provided to select optimum triggering in Digital and Voice modes.
Improved Auto-PTT™ Sensitivity - The SL-1+ offers a significantly more sensitive Auto-PTT™ circuit than our original SignaLink. This insures compatibility with virtually all sound cards, including those with unusually low output levels (common on new laptops and some new desktops). This increased sensitivity also greatly improves performance on voice modes where the signal levels vary widely in amplitude.
Complete Isolation - all SignaLink models truly isolate your computer from your radio. This eliminates troublesome ground loops and prevents hum and noise from degrading the signals.
Adjustable Receive and Transmit Audio Levels - Internal "TX Level" and "RX Level" controls insure compatibility with virtually all radio Mic, Data, and Accessory ports. In addition, these controls permit most users to set their Transmit Audio level one time, and then switch between Digital and Voice modes without having to re-adjust the radio's Mic Gain control. The Receive Audio level can also be set for listening comfort while still providing the correct signal level to the computer.
Uses the Radio's Mic, Data, or Accessory Port - While the original SignaLink was designed specifically for use with the radio's Mic jack, the SL-1+ can be attached to your radios Mic, Data, or Accessory port. This permits most users to attach the SL-1+ to the back of the radio (Data or Accessory Port) and leave their microphone plugged in.
Selectable Fixed or Variable Transmit "Hang Time" Delay - To provide optimum performance in all Digital and Voice modes, the front panel "Delay" switch lets you select between a fixed short delay, and a variable long delay. The fixed short delay is approximately 28 ms, and is ideal for modes that require fast switching times (packet, etc.). The variable delay is adjustable from 300 ms to 3 seconds, and is perfect for slow CW and all Voice modes (Repeater Linking, Remote Base, Voice Keyer, etc.).
Supports All Available Data & Voice Modes - The SL-1+ supports ALL Digital and Voice modes that are available for sound card interfaces. This includes ALL traditional modes such as CW, RTTY, AMTOR, and SSTV (to name a few), and ALL new modes such as PSK-31, MT-63, and Internet Repeater Linking.
External Speaker Support - If you like to listen to your radio’s audio while operating, then you’ll appreciate the front panel “Auxiliary” audio output jack. This jack will accept an external speaker or headphone and can be configured to be active when the SignaLink is ON or OFF. It can also be set to ALWAYS ON.
Flexible Power Requirements - The SL-1+ consumes so little power that it can be powered by the “Accessory Voltage” found on most radio Mic, and Accessory connectors. This makes for a very simple and clean installation. On radios that don’t have power available, we have provided an external power jack on the rear panel (matching power plug included with unit).

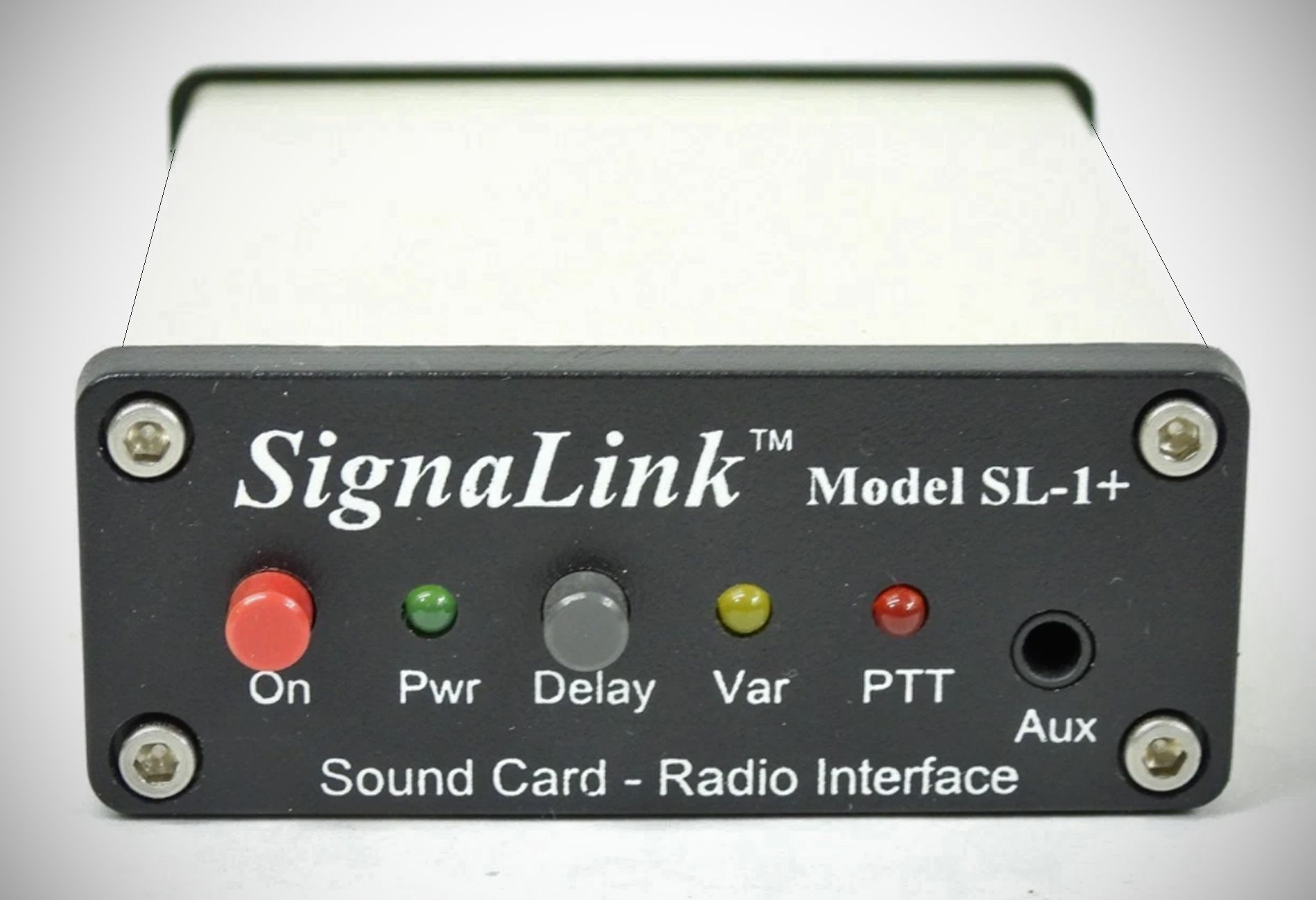

Front Panel Switches and Indicators - A front panel ON/OFF switch is provided to prevent accidental transmissions. The receive signals are still enabled in the OFF position for convenience in monitoring activity. Bright LEDs are provided to indicate Power, Delay, and PTT status.
Power Supply: 6.75 –15 Volts DC @ 13 ma (nominal)
Freq Response: 300Hz–3.3KHz
In/Out Impedance: 600 Ohm (nom)
Attenuation: Radio to Sound Card - Adjustable
Sound Card to Radio - Adjustable
Auto-PTT™ Delay: Fast - 28 milliseconds
Variable - 300 ms to 3 seconds
PTT Circuit: MOSFET Transistor
Rating - 15 Volts @ 75ma (max)

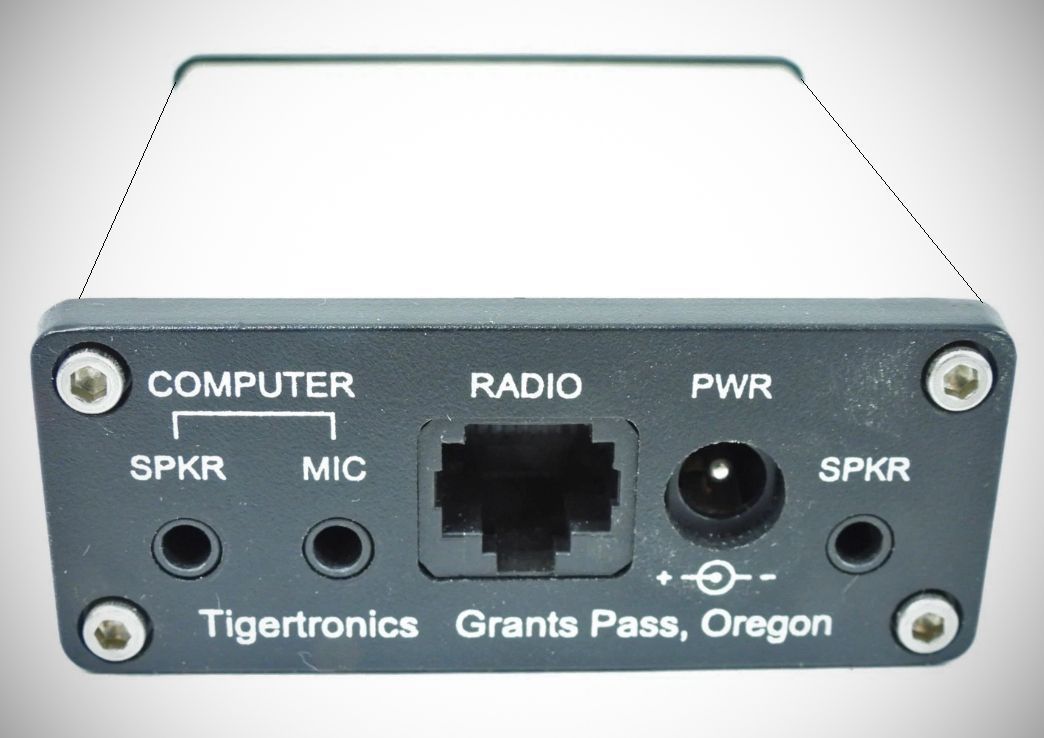

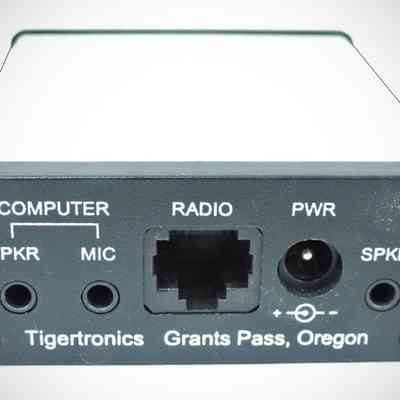

Radio Connector: Mic, Spkr, Pwr, PTT - RJ-45
Spkr - 3.5mm Mono
Sound Card Conn: Mic Input - 3.5mm Stereo
Spkr Output - 3.5mm Stereo
Other Connectors: Aux. Spkr - 3.5mm Mono
Aux. Power - 2.1mm Coaxial
Case: Extruded Aluminum - 6061T4
Operating Temp: –30C to +60C
