Note
QST, Jun 1964, p. 7.

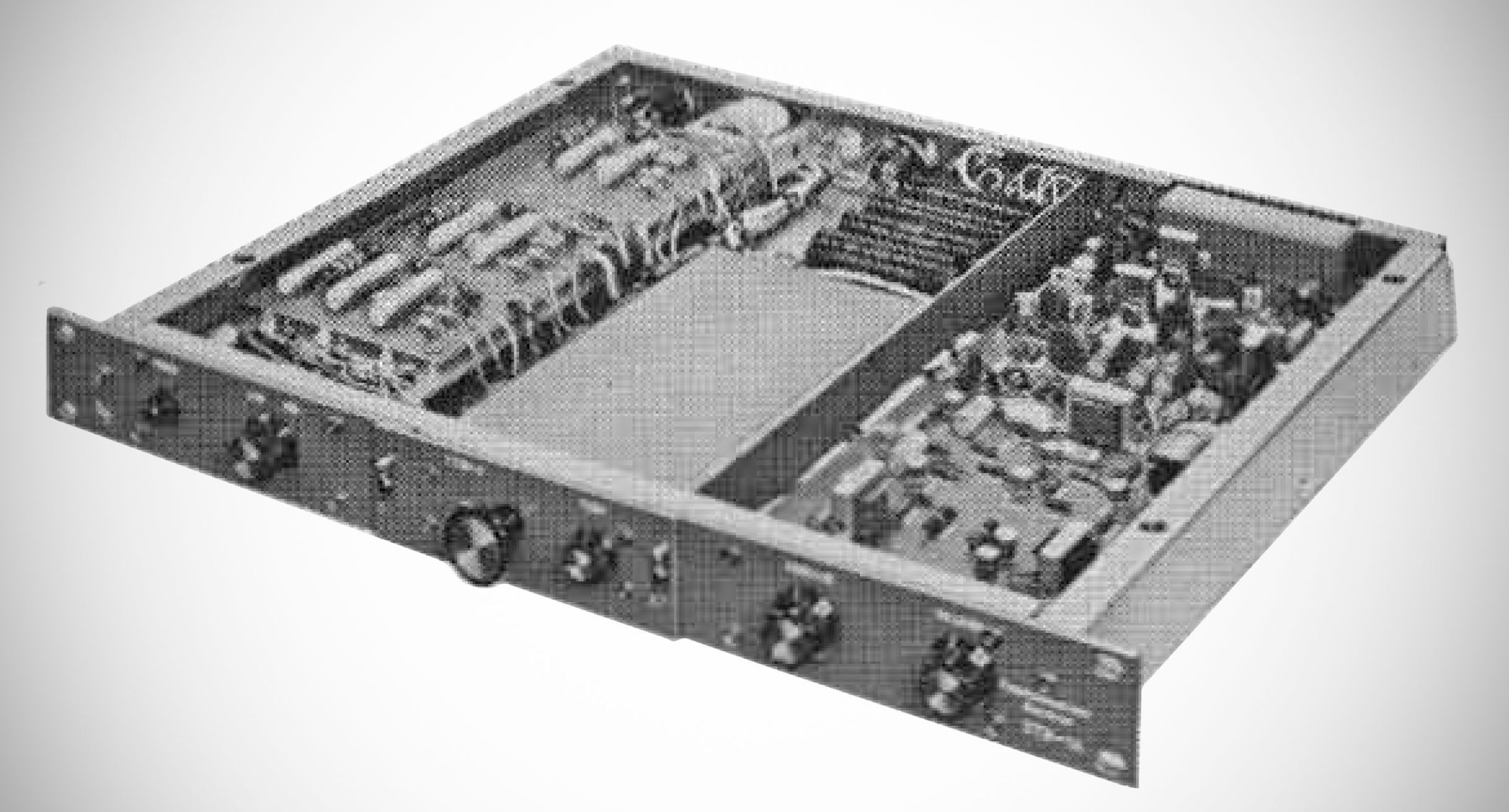

The TMC STR-1 is a fully solid state, single channel, HF receiver.
Matches STE-1.
– Modes: LSB • USB • AME • CW • AFSK • AFAX
– Frequency Coverage: 2-32 MHz
– Frequency Control: Crystals (oven controlled) in plug-in RF heads for 2-4, 4-8, 8-16 and 16-32 MHz coverage. (Specify)
– Input Impedance: Nominal 50 ohms unbalanced.
– Sensitivity: 1 uV for 15 db signal to noise ratio.
– Squelch: Threshold adjustable squelch. AGC activated relay has contacts brought to rear panel for remote indication of receiver signal activity.
– AF Output: 0 dbm to 600 ohms. 500 mw into 4 ohms.
– Clasrifier: Manually controlled front panel.
– Monitoring: By means of front panel phone jack.
---
POWER: 115v, 60 cps, single phase, 3 watts.
