Note
Ham Radio, Oct 1975, p. 92.
Frequency Range:
C-1227: 27–450 MHz
C-1297: 30–250 MHz
Accuracy: 10% of full scale
Power Capability
SSB: 50 watts Entire Range
CW: 50 watts 100–225 MHz
25 watts 27–300 MHz
15 watts above 300 MHz
Connectors: Type "N" standard (UHF on request)

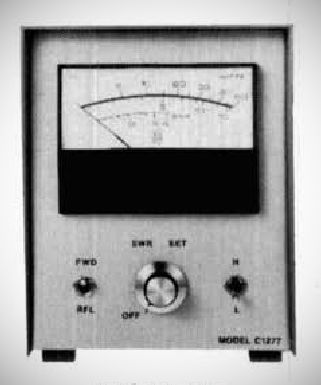

The model C1277 broadband power/SWR meter by Werlatone is an inexpensive instrument for amateur use in the HF and VHF range.
The C1277 covers 27 to 450 MHz continuously and features dual power-range scales for 15 and 50 watts. A unique broadband coupler provides a useful bandwidth approximately eight times greater than previously available.
No plug-in units or separate indicators are required. Wattmeter accuracy is
±10% when used with a 50-ohm antenna system. Sensitivity for SWR measurements is less than 5 watts. I
