Note
QST, Apr 1963, p. 159.
QST, Jan 1964, p. 165.
QST, Jan 1965, p. 149.
QST, May 1966, p. 125.

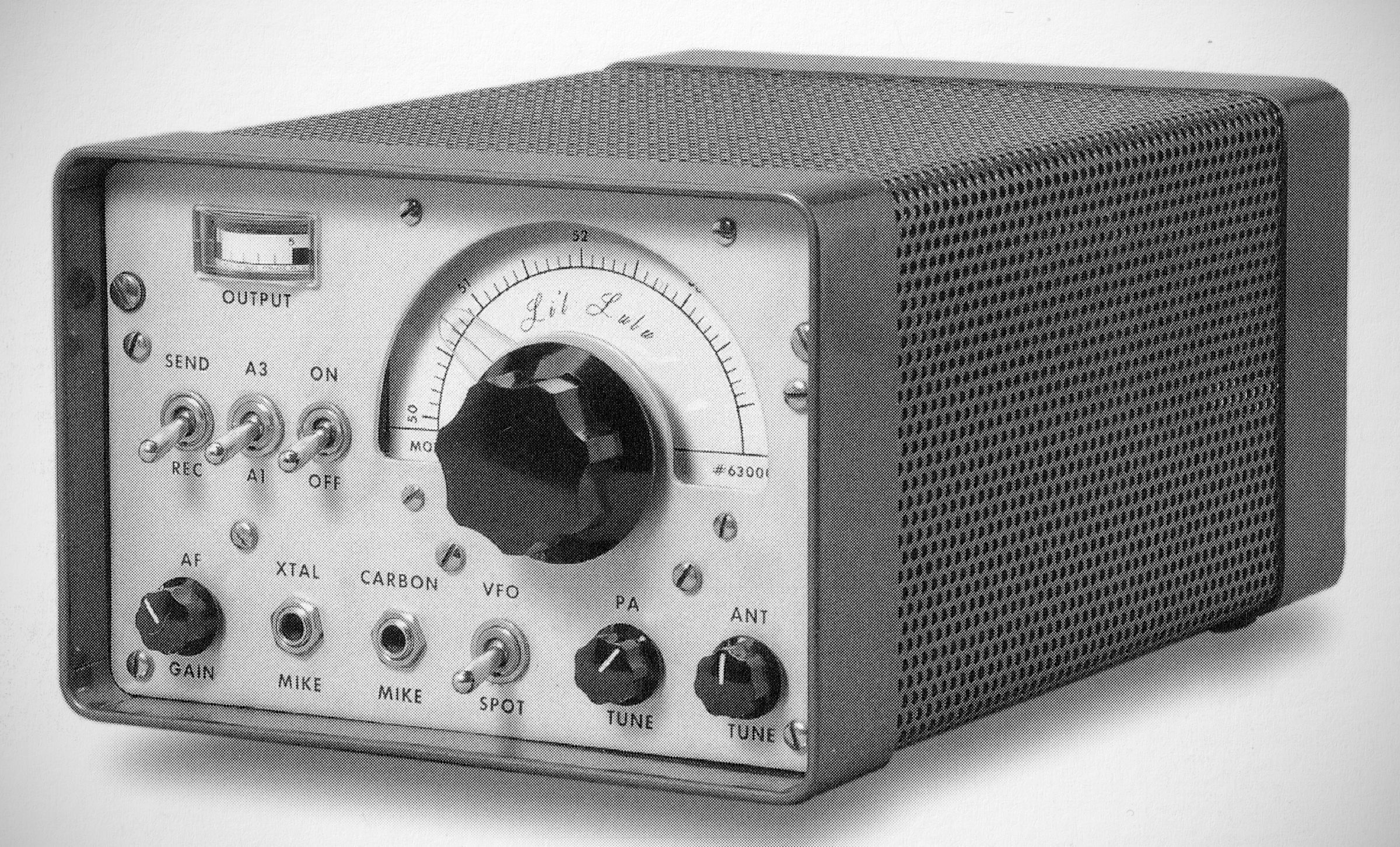

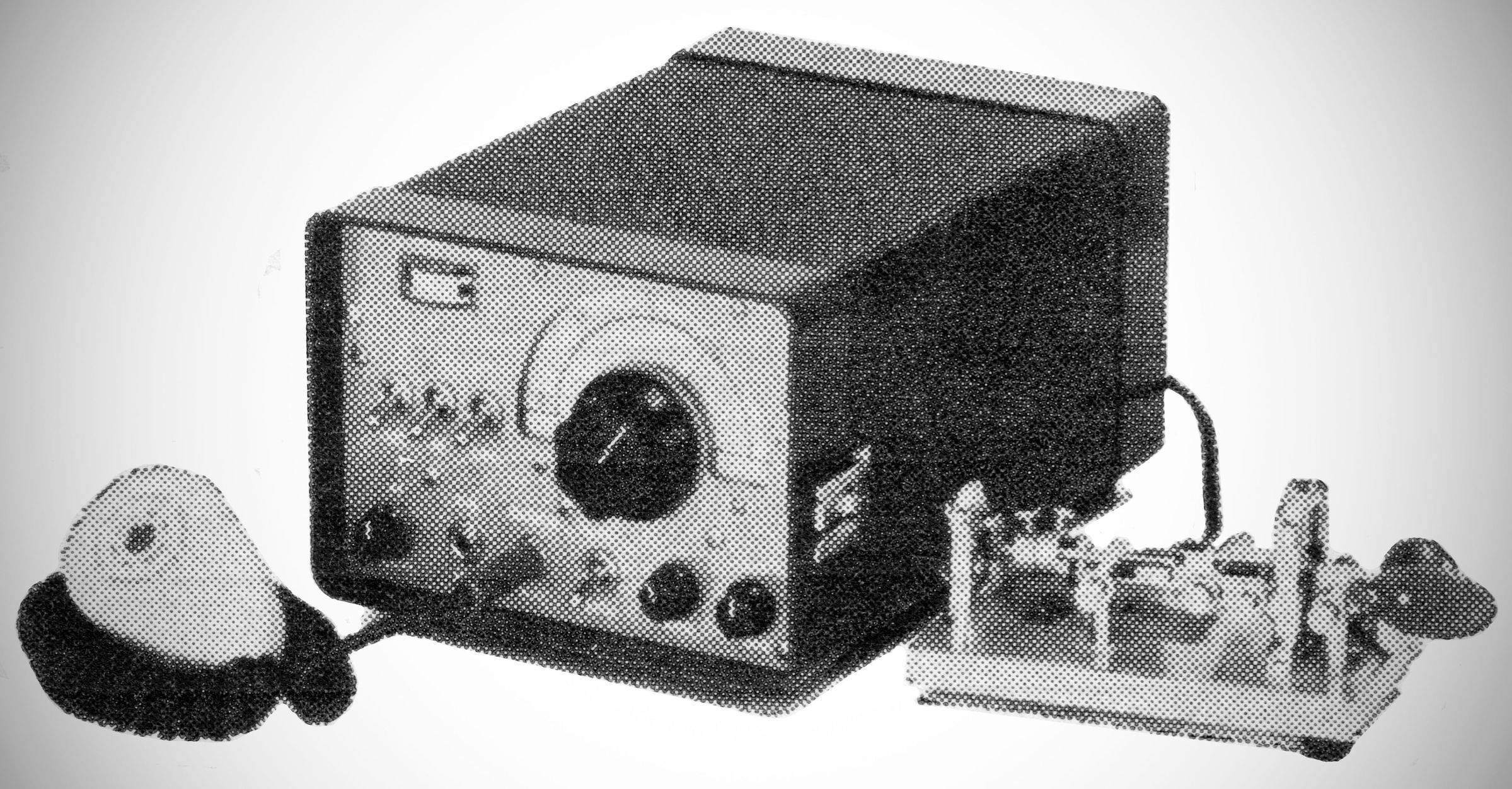

Whippany Laboratories was owned by Ed Ladd, W21DZ. In 1963, the West Caldwell, New Jersey company introduced the commercial version of Ladd's L'il Lulu transmitter. The rig had already become a popular home brew project among 6 meter ops during the previous decade. All stages up to the final amplifier were gang-tuned and tracked with the VFO. Power output was 6 watts on CW and 5 watts on AM. The Li'l Lulu was legendary for being able to operate interference-free on the TVI-prone 6 meter band.
Features
– Full-band coverage, 50 to 54 MHz.
– Stabilized VFO, gang-tuned to amplifier stages.
– VFO filament and plate voltages fully regulated.
– 12DQ7 final power amplifier.
– Top quality audio.
– Clean c.w., shaped keying.
– Built-in antenna changeover relay.
– Low pass filter for minimum TVI.
– Built-in power supplies for both 115 VAC and 12 VDC (transistorized).
References

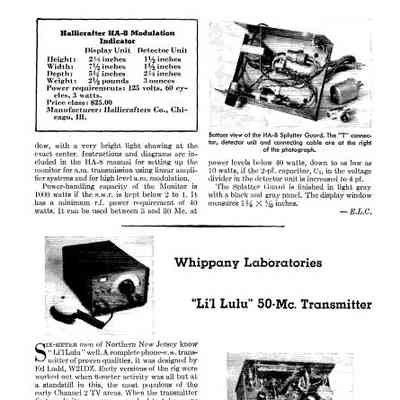

Review: QST, Aug 1963, p. 44.

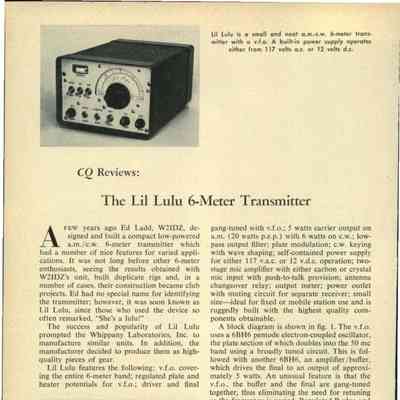

Review: CQ, Sep 1963, p. 36.
