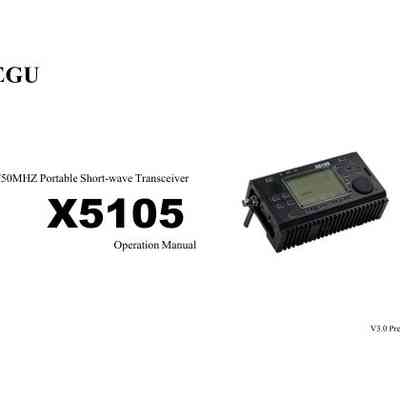

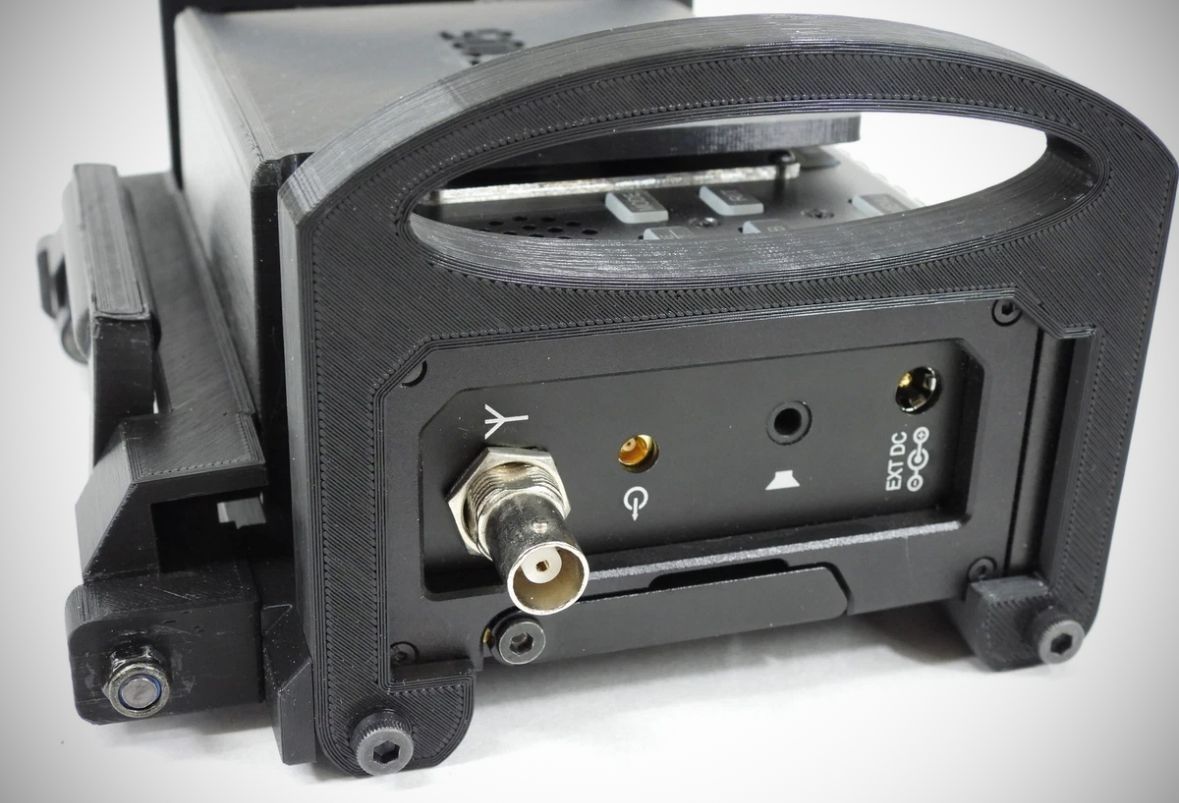

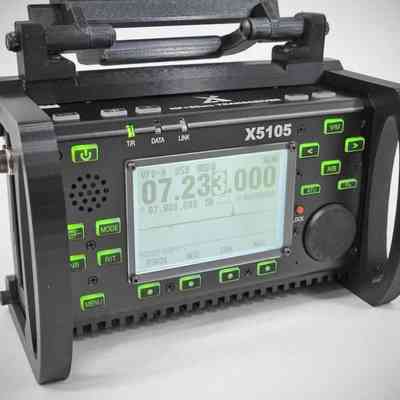

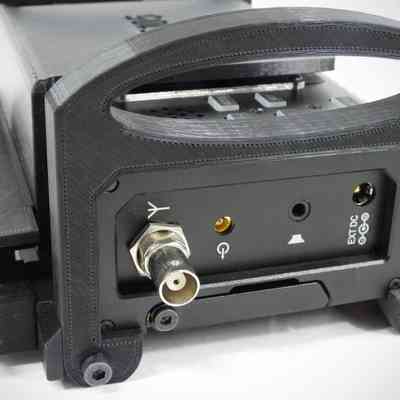

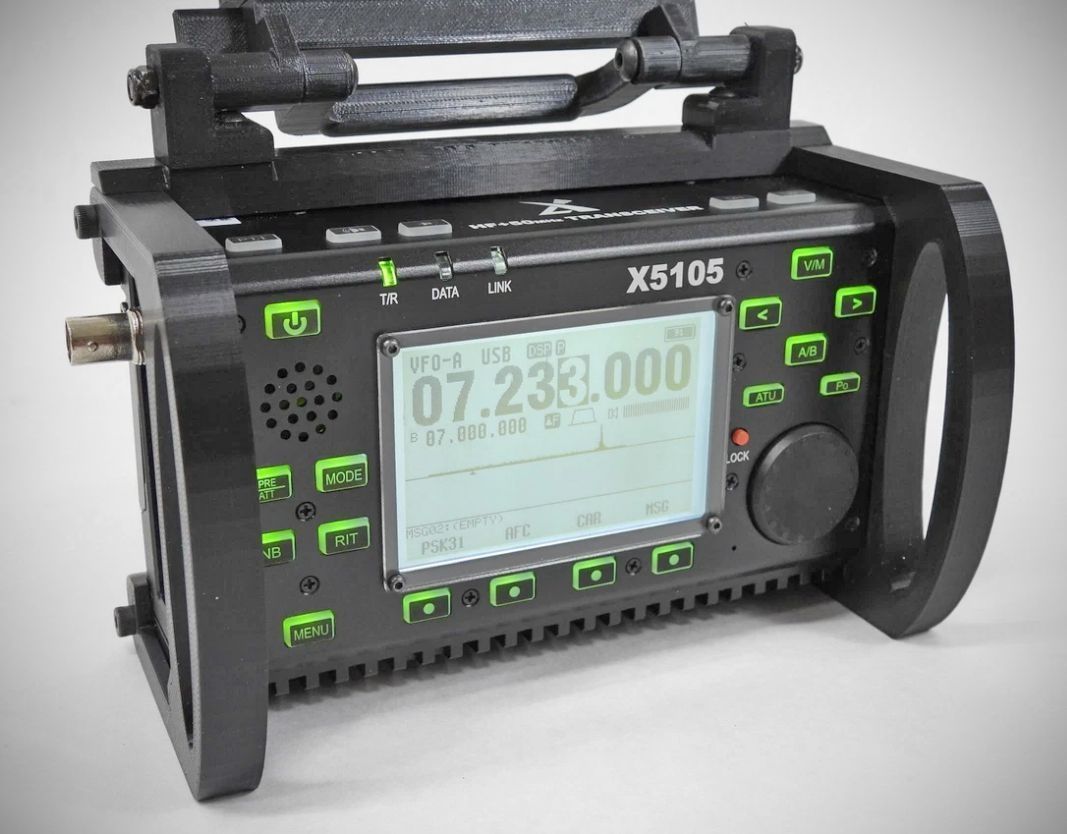

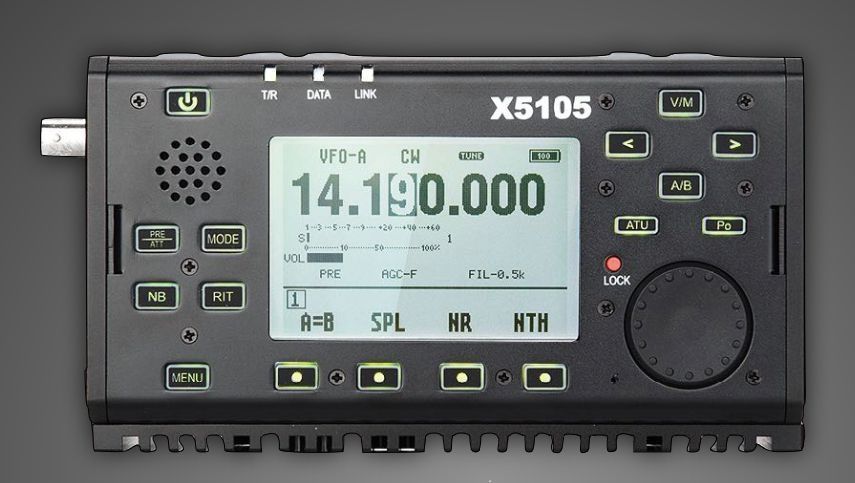

XIEGU HF/50MHZ Portable Short-wave Transceiver X5105 Operation Manual V3.0 Preview Edition 1 Content Basic characteristics Panel keys Left interface 2 Key lock/backlight off Lock 49 3 CW communication 50 6 Preset message editing and sending 51 Right interface 7 Channel manager 52 Handheld microphone function Description for external interfaces Charging and maintenance of build-in battery Connection of external power supplies 8 Data communication by connecting with computer 53 9 System parameter configuration 54 10 Computer control instructions 56 Wave band voltage data 12 Indicators 56 Menu operation 14 Attached items 57 Panel keys Multi-function menu Transceiver start and shutdown Battery level/voltage indication Selection of working frequency range Selection of working mode (MODE) Volume adjustment Adjustment of transmitting power (Po) Use of PTT key of the device Working frequency settings Automatic antenna tuner (ATU) Fine tuning of received frequency (RIT) Automatic gain control (AGC) Pre-amplification/front attenuation (ATT) SPL and VFO settings 15 Schematic diagram of connection between existing 58 17 models of Xiegu and XPA125/125B 59 34 Schematic diagram of CE-19 expansion card interface 60 35 36 37 38 39 40 41 42 43 44 45 47 VFO/MEMO mode switch 48 2 Basic Characteristics X5105 is a kind of ultra-portable short-wave full-mode transceiver that integrates all functions required by short-wave amateur radio operations and realizes portable/mobile use of short-wave equipment in the real sense. Its strong functions and performance make you easily deal with various states in communications and hear signals from all over the world.  HF+50MHz full-mode 5W output  Small size (about 168*93*47mm), which is portable  3.6-cun large dot matrix LCD  Built-in large capacity lithium battery pack (3800mAh @ 12V)  Built-in efficient automatic antenna tuner  Built-in digital baseband, which can achieve many advanced functions:  Digital noise reduction, digital NOTCH  Digital EQ equalizer  Variable bandwidth digital filter  Direct-decoding amateur radio common data mode  Capable of directly finishing data communication based on an external adapter without PC or separate modem  CW, PSK, RTTY automatic decoding/preset message transmitting  Built-in high-stability TCXO  Manual/auto telegram key mode switch  Wide working voltage range Please read this manual carefully for a better experience and full understanding on operation of the X5105. 3 Panel Keys A/B 23 22 1 21 A B C T/R DATA LINK 20 19 18 X5105 2 PRE ATT 4 5 6 17 16 15 LOCK 13 12 7 8 9 10 11 < V/M MODE 3 NB ATU Po RIT MENU 4 1 Power switch Press the key in a long time to turn on or turn off the radio. 2 MODE key Panel Keys 12 Major knobs (large thumbwheel) Major tuning knobs of radio can not only be used to adjust frequency, but also can be used to set parameters. Press the key in a short time to change current working mode and cycle in following sequence: [ LSB-USB-CW-CWR-NFM-AM ] 3 PRE/ATT key Press the key in a short time to turn on or turn off pre-amplifier or pre-attenuator as following conditions: [ PRE=ON---ATT=ON---PRE/ATT=OFF ] 4 RIT key Press the key in a short time to enable RIT function. 5 NB key Press the key in a short time to enable or disable NB function. Press the key in a long time to switch the battery level/voltage indication. 6 MENU key Press the key in a short time to switch current multi-function menu. 7～10 multi-function menu keys Press these four keys a short time to enable or disable corresponding functions displayed in menu area on current screen. 11 LOCK key Press the key in a short time to lock actions of all keys and knobs on panel; Press the key for 1s to turn on or turn off backlight of display screen. 13 ATU key Press the key in a short time to connect built-in automatic antenna tuner to antenna port, and press the key in a long time to start the automatic antenna tuner for tuning. 14 Po key Press the key in a short time to adjust transmitting power under the cooperation of major tuning knob. The adjustment range is 0.1W~5W. 15 A/B key Press the key in a short time to switch between VFOA/VFOB. 16 < key Press the key in a short time to move the stepping position of current frequency to left. 17 > key Press the key in a short time to move the stepping position of current frequency to left. 18 V/M key Press the key in a short time to switch between VFO mode and MEMO mode. 19 UP key Press the key in a short time to switch to a higher frequency band. 20 DN key Press the key in a short time to a lower frequency band. Panel Keys 5 21 Volume- key Press the key in a short time to reduce current volume. 22 Volume+ key Press the key in a short time to increase current volume. 23 PTT key The radio will enter transmitting state by pressing and holding the key. A T/R indicator light It is green when under receiving state It is red under transmitting state The light will be red when charging under shutdown state. It will be green when charging if finished. B DATA indicator light It will be flickering under data communication state. C LINK indicator light The light will be turned on when main machine is connected with peripherals. 6 EXT DC - + 24 Antenna interface BNC type interface with impedance being 500. 25 Medium frequency signal outlet Left Interface Output and receive first medium frequency signals. 26 Left bracket Stretch it outward when using it. Fold side backplate when it is not used. 27 Earphone interface It is a 3.5mm stereo socket (3 wires) interface used to connect earphone 24 devices. * It shall be noted that functions of the interface will be different as for different version of X5105. 25 28 DC power interface It is an external DC power input interface used to connect 26 external DC power by using attached power lines. External 27 DC power supply shall be capable of supplying power output of 13.8V@3A. The interface can be also used to 28 charge build-in battery. 7 ACC KEY ATU COM MIC 29 ACC interface Right Interface The interface is an 8-core mini-type DIN interface which can be used for external amplifier connection, PTT control and band signal transmission, and it can be used to input/output acoustic signal under data communication state. 30 KEY interface It is a 3.5mm stereo interface used to connect manual/auto telegram keys. Wire connection of telegram keys are shown below: As for manual telegram key, 'Dit' and 'Dah' shall be connected together. 31 ATU interface Dit Dah Public Dit Dah Public 29 30 33 31 32 It is a 3.5mm interface (3 wires) used to control external antenna tuner. *The interface functions are not opened temporarily. 34 32 COM interface It is a 3.5mm interface (3 wires) used to connect computer aided control system and firmware update. 33 Right bracket Stretch it outward when using it. Fold side backplate when it is not used. 34 MIC (microphone) interface It is used to connect attached multi-function handheld microphone. 8 Handheld Microphone Function 1. LOCK key 2. PTT key 3. Up/down 4. Transceiver indicator light 5. Figure key area 6. FIL key 7. MODE key 8. Functional indicator light 9. Function keys 10. MW key 11. V/M key 12. XFC key 13. TUNER key Lock key transmitting control key Frequency increase/decrease key Hand microphone operation indicator light Figure keyboard area Filter selection Selection of working mode of main machine No F1/F2 custom settings key Storage Frequency/channel switching Send preset message Press it in a long time to start antenna tuner for tuning 9 1、 Microphone interface Description for External Interfaces 4、 ACC interface MICE PTT GND DATA MIC GND MDATA 2、 CIV interface MIC MSVSW NC +8V +8V ALC BAND 5、Wire connection of telegram keys AF_OUT AF_IN PTT Dit Dah Public RXD GND TXD Dit Dah Public 3、 Earphone interface Signal GND Signal 10 Vext=13800mV Vbat=12200mV Charge Finish Charging and Maintenance of Build-in Battery X5105 has a built-in 3800mAh polymer lithium battery pack. When there is no external power supply connected, the battery pack will supply power for the whole device. When external power supply is provided, the built-in circuit will be automatically switched to the external power supply. Charging method: 1. Enter system menu #9:Charger; 2. Rotate large knob and select 'ON', and then enable charging function; 3. Select 'OFF' to disable charging function when operating. 4. Set voltage of external power supply between 13.5V~15.0V and connect to the power supply port of external power source, and then the main machine will be automatically charged. Note: X5105 will be automatically charged and T/R indicator light will be red when charging function is enabled and connected with appropriate external power supply under shutdown state. T/R indicator light will be green when charging is finished. Vext=13800mV Vbat=11800mV Charging… Information displayed on screen when charging under shutdown state Vext：Display voltage of external power supply Vbat：Display current real-time voltage of battery 5. The maximum charging time is 10-12h. Charging will be automatically stopped when battery is fully charged, and the screen will display charging finishing information as shown in right figure. Voltage of battery is generally between 12.1~12.5V after charging. Information displayed on screen after charging 12 Charging and Maintenance of Build-in Battery ○ When battery is supplying power and almost running out, the power indicator at top right corner of screen will display , indicating that charging shall be carried out immediately or switching to external power supply is required. It will be normal if the shell is slightly exothermic when charging. ○ Service life of the built-in battery is limited under normal use. Please contact with dealer to replace battery if capacity of battery is obviously reduced or battery can not be charged (warranty period of battery is 3 months, replacement beyond the warranty period shall be paid). Rated voltage range of equipment shall not be exceeded when applying external power supply, otherwise irreversible damages will be caused to equipment. Once abnormal heating is found at the position close to battery on the back of shell, the equipment shall be immediately turned off and equipment shall be placed at a safe and ventilated place. Please contact us for proper disposal after confirming safety conditions. 11 Connection of External Power Supplies 13.8V external DC power supply is available for X5105. Current load capacity of DC power supply shall be 3A at least. Attached power lines can be used to connect to radio and DC power supply. DC power supply shall be connected in strict accordance with following figure to avoid reverse polarity connection. White line shall be connected with the positive pole of power supply and metal-shielded line shall be connected with negative pole of power supply. X5105 VOLT ADJ ON OFF + - POWER SUPPLY Metal-shielded line EXT DC - + White line 13 Connection of External Power Supplies EMC magnet ring can be applied on power lines to prevent external disturbance from entering radio via power lines and radio- frequency interference in radio from radiating externally via power lines when external power supply is adopted for X5105. Magnet ring shall be installed at the side closing to battery socket.  Polarity of power lines shall be carefully inspected to avoid reverse polarity connection when external power supply is adopted.  Limited warranty of the radio does not include damages caused by wrong connection of external power supply or abnormal voltage. Power line shall be twined for 2 rounds on magnet ring. Close to interface to greatest extent 14 Operation X5105 adopts multi-function menu mode to enable or disable various functions. All functions are distributed in 9 menu pages, and each page of menu has four functions that can be selected. Menu can be switched in following methods:  Press MENU key in a short time to switch menu pages. Menu page Four multi-function keys under the screen are corresponding to displayed function menu. T/R DATA LINK X5105 V/M ATU Po LOCK Multi-function key MENU A/B < PRE ATT MODE NB RIT 15 Operation Description for functions of keys on panel S/N Name of keys Operation Short press Long press 1 PTT Depend on PTT mode settings (assume that current frequency band is allowed to be transmitted): Normal PTT mode: press to enter transmitting state and loose to enter receiving state PTT triggering mode: switch between receiving and transmitting after every press 2 Increase volume (a large loudspeaker icon) Increase 1 receiving volume Continuous increase of receiving volume until loosening the key 3 Decrease volume (a small loudspeaker icon) Decrease 1 receiving volume Continuous decrease of receiving volume until loosening the key 4 DN Last wave band (progressive decrease of frequency) No 5 UP Next wave band (progressive increase of frequency) No 6 PWR None Power ON/OFF 7 PRE/ATT Bypass PRE ON ATT ON Cycle Not available 8 MODE Mode LSB/USB/CW/CWR NFM/AM Cycle SPLT on/off Cycle 9 NB Impulse noise suppressor On/Off Cycle Switch battery gauge/voltmeter to circularly display them 16 Operation 10 RIT RIT selected/not selected Cycle RIT value zeroing (no matter whether RIT is selected or not) 11 V/M Switch VFO/MEMO mode Cycle write current MEMO parameters in VFO and return to VFO mode if under MEMO mode 12 < VFO mode: move frequency stepping position to left MEMO mode: last channel Execute short press operation continuously Interval is about 0.1s Until loosening the key 13 > VFO mode: move frequency stepping position to right MEMO mode: next channel Execute short press operation continuously Interval is about 0.1s Until loosening the key 14 A/B Switch VFO A/B Cycle Copy foreground VFO parameters to background VFO 15 ATU Cycle of ATU bypass/access switch Start ATU Enable access state after adjustment 16 PO Cycle of output power selected/not selected Set SWR protection threshold 17 LOCK Cycle of switch displayer backlight level (6 levels) Keys and thumbwheel on lock panel 17 Operation Functions of each page in multi-function menu are distributed as follows: Operation of multi-function menu shall be completed under the cooperation of MENU key and major knob:  Press MENU key in a short time: Page flip  Adjustment of functional parameters: Rotate major knob  Enter secondary menu of a certain function: Press the multi-function key corresponding to the function in a long time  Exit secondary menu Press MENU key in a short time Menu page Functions 1 2 3 AGC AGC speed selection DSP-FLT DSP options MEMO Storage options RF-GAIN Receiving radio frequency gain adjustment NR Digital noise reduction options SQL Squelch NOTCH NOTCH options CALLSIGN Start call number settings 4 5 6 KEY Options of telegram keys / / MIC/VOX MIC options MSG Preset message TONE Sidetone settings DIGI Digital communication decoder options S/P Loudspeaker/earphone options QSKTIME Insertion time settings SRM Scanning receiver options LIN/OUT Wire output/input options COMP Voice compression EQ EQ options / / QSK Insertion settings SWR Standing-wave scanner options PTT PTT triggering mode selection 18 Operation Menu page: 1 (common functions) Key labels Functions AGC RF-GAIN SQL COMP Short press OFF SLOW FAST AUTO Cycle Select radio frequency gains. Flickering when selected Rotate thumbwheel to adjust parameters Select noise threshold Flickering when selected Rotate thumbwheel to adjust parameters OFF ON Cycle Long press No Restore defaults No Enter 1-4 submenu Description of key functions: AGC： Selection of automatic gain control speed RF-GAIN： Receive gain settings SQL ： Noise threshold settings COMP： Voice compression settings LEVEL： Voice compression ratio settings 1 19 Operation 1-4 submenu Key labels Functions COMP LEVEL / / Short press OFF ON Cycle Select compression ratio Flickering when selected Rotate thumbwheel to adjust parameters Long press No Restore defaults / / 20 Operation Menu page: 2 (DSP related) Key labels Functions DSP-FIL NR NOTCH EQ Short press OFF ON Cycle OFF ON Cycle OFF ON Cycle OFF ON Cycle Long press Enter 2-1 submenu Enter 2-2 submenu Enter 2-3 submenu Enter 2-4 submenu Description of key functions: DSP-FIL： Digital filter function settings NR： Digital noise reduction settings NOTCH： Digital NTH settings EQ： Equalizer settings 2 21 Operation #2 submenu list 2-1 (parameter adjustment of band-pass filter) Key labels Functions DSP-FIL L-CUT H-CUT No Short press OFF ON Cycle Select filter low. Flickering when selected, Rotate thumbwheel to adjust Parameters Select filter high. Flickering when selected, Rotate thumbwheel to adjust Parameters No Long press Return to 2 main menu Default Default No #2-2 (NR parameter adjustment) Key labels Functions NR LEVEL No No Short press OFF ON Cycle Toggle NR ON/OFF Noise selected/not selected Depth Flickering when selected Rotate thumbwheel to adjust Parameters No No Long press Return to 2 main menu Default No No 22 Operation #2-3 (NOTCH parameter adjustment) Key labels Functions NOTCH CNT BW No Short press OFF ON Cycle Notch selected/not selected Frequency point Flickering when selected Rotate thumbwheel to adjust Parameters Notch selected/not selected Bandwidth Flickering when selected Rotate thumbwheel to adjust Parameters No Long press Return to 2 main menu Default Default No #2-4 (EQ parameter adjustment) Key labels Functions BASS MEDI TREB EQ Short press Bass selected/not selected Flickering when selected Rotate thumbwheel to adjust parameters Alto voice selected/not selected Flickering when selected Rotate thumbwheel to adjust parameters High-pitched voice selected/not selected Flickering when selected Rotate thumbwheel to adjust parameters OFF ON Cycle Long press Default Default Default Return to 2 main menu 23 Operation Menu page: 3 (memorizer related) Key labels Functions MEMO MSG CALLSIGN No Short press Enter 3-1 submenu Enter 3-2 submenu Enter 3-3 submenu No Long press No No No No Description of key functions: MEMO： Storage channel settings MSG： Preset message list editing CALLSIGN： Boot screen call number editing 3 24 Operation #3 submenu list #3-1 (channel manager) Key labels Functions SEL INS BACK SAVE Short press Select CH Select TAG Cycle Insert a letter to TAG. It is only valid when TAG is selected When CH is selected: Deletion line will be displayed above channel contents after deleting current channel, and then it will be valid after pressing SAVE. When TAG is selected: Delete a character from the end. Save and exit Long press No No No No Note: press MENU key in a short time to abort all changes and return to 3 main menu. Operation #3-2-1 (list of preset messages) Key labels T Functions QUI EDIT DEL No Short press Exit Edit currently selected preset messages. Delete currently selected preset messages. Confirmation prompt: YES: confirm deletion NO: abort deletion No Long press No No No No #3-2-2 (preset messages list editor) Key labels CE Functions SPA INS BACK SAVE Short press Insert a space at the position where cursor is Insert currently selected characters at the position where cursor is Delete a character at the position where cursor is Save and exit Long press Insert 'DE+space' Insert call number +space (if customized call number exists) Insert 'CQ+space' No Note: press MENU key in a short time to abort all changes and return to 3 main menu. Length of each preset message is 100 English characters. 25 Operation 26 #3-3 (call number editor) Key labels Functions SPACE INS BACK SAVE Short press Insert a space at the position where cursor is Insert currently selected characters at the position where cursor is Delete a character at the position where cursor is Save and exit Long press No No No No Note: press MENU key in a short time to abort changes and return to 3 main menu. Operation 27 Menu page: 4 (telegram keys/CW related) Key labels Functions KEY TONE QSKTIME QSK Short press Manual key Auto key-left hand Auto key-right hand Cycle Select CW sidetone. Flickering when selected, Rotate thumbwheel to adjust Parameters Select QSK delay. Flickering when selected, Rotate thumbwheel to adjust Parameters OFF ON Cycle Long press Enter 4-1 submenu Default Default Default #4 submenu list #4-1 (parameters adjustment of telegram keys) Key labels Functions KEY IAMBIC SPEED RATIO Short press Manual key Auto key-left hand Auto key-right hand Cycle A MODE B MODE Cycle Select auto key speed Flickering when selected Rotate thumbwheel to adjust Parameters Select dot-and-dash interval Flickering when selected Rotate thumbwheel to adjust Parameters Long press Return to 4 main menu Default Default Default 4 Operation 28 Menu page: 5 5 (special functions) Key labels Functions No DIGI SRM SWR Short press No Enable data mode Start scanning receiver Start standing- wave scanner Long press No No No No #5 submenu list #5-2 (data mode) Key labels Functions PSK31 AFC CAR MSG Short press Select data mode PSK31, 63, 125 CWDEM, RTTY Cycle Selected/not selected Signal frequency Rotate thumbwheel to adjust Selected/not selected Carrier frequency Rotate thumbwheel to adjust Select preset massages (1~10) Long press No No No No Operation 29 #5-3 (scanning receiver) Key labels Functions QUIT BW STOP No Short press Exit Switch scanning step 0.5/1/2/5/10kHz Cycle Pause/ (Monitoring current frequency point) recover scanning Cycle No Long press No No No No Operation 30 #5-4 (standing-wave scanner) Key labels Functions QUIT BW MODE SPEED Short press Exit Switch scanning step 1/5/10kHz Cycle Switch scanning mode Single step/continuous Cycle Switch scanning speed Fast/slow Cycle Long press No No No No Clarifications: MODE:  Single step: stop after every round of scanning, and then press PTT key (onboard or Hand microphone PTT) to trigger next scanning  Continuous: continuous scanning. SPEED:  Fast: time interval of each scanning point is about 12ms.  Slow: time interval of each scanning point is about 25ms.  Tips: fast speed can be switched to slow speed if the scanning curve is not stable. Operation 31 Menu page: 6 (interface functions) Key labels Functions MIC/VOX SPK LIN/OUT PTT Short press Auto/built-in/external Cycle Built-in loudspeaker/ external Earphone Cycle Enter 6-3 submenu PTT conventional/ triggering mode Cycle Long press Enter 6-1 submenu No No No Clarifications: MIC: AUTO: built-in microphone will be automatically selected when hand microphone is not detected, otherwise external microphone will be selected. Built-in INT: select built-in microphone. External EXT: select hand microphone. ★ Important notes: When LINE IN is enabled, both built-in MIC and external MIC are not available. 6 Operation 32 #6 submenu list #6-1 (MIC gain adjustment) Key labels Functions VOX G-VOX GAIN-IN GAIN-EX Short press On/Off Cycle Select built-in VOX gains and rotate thumbwheel to achieve the adjustment Select built-in MIC gains and rotate thumbwheel to achieve the adjustment Select external MIC gains and rotate thumbwheel to achieve the adjustment Long press No Default Default Default Clarifications: VOX: only LINE IN can be triggered. No adjustment menu provided for VOX receiving and sending switching delay temporarily, and the delay is determined as 100ms. ★ Important notes: Transmitting channel gains in different hardware versions are different. Excessive gain settings may cause large transmitting background noise under single side band mode, which can be solved by decreasing MIC GAIN. Operation 33 #6-3 (line gain adjustment) Key labels N Functions LI G-LIN LOUT G-LOUT Short press Line input on/off Cycle Select line input gains and rotate thumbwheel to achieve the adjustment Line output on/off Cycle Select line output gains and rotate thumbwheel to achieve the adjustment Long press No Default No Default Clarifications: X5105 hardware without screen protection plate has no individual LINE OUT channel. Its LINE OUT shares the same signal with audio frequency amplifier. At this time, LINE OUT/switch and LINE OUT gain have no effect, and the LINE OUT terminal of ACC interface is outputting all the time with output level related to receiving volume. Operation 34 PRE Routine operation Transceiver start and shutdown 1. Start the transceiver: press and hold the switch key for 1s. 2. Shut down the transceiver: press and hold the switch key for 1s under startup state. Switch key T/R DATA LINK ATT MODE X5105 ATU Po LOCK ★ Important notes: Please turn off the equipment correctly according to above method after using it. If external power supply is directly cut off, current working data can not be saved and large impact and faults will be caused to built-in power units.  Hard reset:press and hold startup key for above 8s to reset the built-in main controller and shut the equipment down compulsively when system of main machine is crashed, such as no response of keys or failure of exiting transmitting state and keys. MENU RIT NB A/B < V/M Operation 35 Battery level/voltage indication Press NB key to switch the battery level/voltage indication.  If the X5105 transceiver is not used for more than 30 days, we suggest to connect it with an external power supply to charge it until the charging is finished. See operation instructions in [Charging] for details. Operation 36 Selection of working frequency range Frequency range of X5105 covers 0.5~54MHz. Amateur frequency in such range is divided into several frequency bands, and frequency band switch can be achieved by adopting many types of different modes. HF+50MHz TRANSCEIVER DN Frequency band downward Frequency band upward Operation methods: Press DN or UP key to respectively switch to next or last operation frequency band. 1.8MHz 3.5MHz 5.2MHz 7.1 MHz 10MHz 14MHz 50MHz 28MHz 24MHz 21MHz 18MHz  5MHz frequency band shall be opened according to regulations of the country (or region).  Frequency division for equipment in different versions is different, which shall be in accordance with the regulations of the country (or region). PTT UP Operation 37 Operating mode selection Press [MODE] key and follow the fixed sequence below among all modes < A/B MENU T/R DATA LINK X5105 V/M Mode ATU Po PRE ATT MODE LOCK NB RIT Operation 38 Volume adjustment Press [volume+, -] key to adjust the output volume Tips: Press volume+ or - key in a long time to continuously increase or decrease volume until loosening the key. PTT DN UP HF+50MHz TRANSCEIVER Volume + Volume - Operation 39 V/M < A/B NB RIT T/R DATA LINK X5105 ATU Po PRE MODE ATT LOCK MENU Adjustment of transmitting power Press [PO] transmitting power settings Operation methods: 1. Press [Po] key in a short time to enter power settings state, and the screen will display the Po power setting value. 2. Rotate large knob to set power within the range of 0.1W-5W. power settings  Please minimize the preset transmitting power when using X5105 transceiver for the first time under the condition of not understanding the current state of antenna. Operation 40 Use of PTT key of the device X5105 has a build-in PTT key which can enable the transmission of transceiver. Operation methods: 1. Press the key to enable the transmitting function of transceiver; 2. Speak to the built-in MIC hole beside the knob to complete the communication. PIT of the equipment HF+50MHz TRANSCEIVER Clarifications: There are two PTT triggering modes:  Normal mode: press to enter transmitting state and loose to enter receiving state.  Triggering mode: switch between receiving and transmitting after every press. See relevant contents in menu 6 for details.  You can try to use PTT key and build-in MIC (please select INT for MIC) of the equipment and use the equipment in handheld way. PTT DN UP Operation 41 PRE Working frequency settings There are two methods for setting working frequency of X5105, i.e., set by Operation methods: T/R DATA LINK X5105 V/M < A/B 1. Set frequency by using large knob ATT MODE ATU Po position cursor to left or right, so as to select the frequency position of LOCK Large knob  Rotate frequency knob and set the frequency of current step. 2. Set frequency by using multi-function hand microphone  Press [F-INP ENT] key on hand microphone, and the X5105 will be in frequency setting state, and cursor will be flickering at the first place on the left of frequency display position;  Respectively input expected frequency values, and press [F-INP ENT] key again to complete frequency settings. . 5 0 0 0 For example, press keys in following sequence to set current frequency as 51.050000MHz: 1. 2. 3. Press [F-INP ENT] firstly; Respectively press 5 1 0 0 number keys; Press [F-INP ENT] again to complete the settings. MENU NB RIT Operation 42 V/M NB RIT MENU < A/B T/R DATA LINK X5105 ATU Po PRE ATT MODE LOCK ATU transceiver to help you easily erect Tuning key  Press [ATU] key in a short time tuner. There will be an antenna icon at the top of screen.  Press and hold [ATU] key for 1s to start ATU automatic tuning functions. IT will automatically return to receiving state after the tuning. Note: 1. Press [ATU] key, and there will be an antenna icon at the top of screen, indicating that antenna tuning functions are only enabled and not working. 2. Once built-in antenna tuning is adopted, tuning shall be carried out for one time after antenna tuning function is enabled. 3. If value displayed in standing-wave meter is large once transmitting is enabled after the tuning, it indicates that standing-wave of current antenna is still large and tuning is required to be carried out again. 4. Antenna tuning shall be turned off once natural resonance of antenna reaches current frequency band. Operation 43 PRE Fine tuning of received frequency (RIT) RIT function can set the deviation value of actual receiving frequency corresponding to set frequency, that is ±1.5kHz at maximum. Operation methods: RIT function. There will be a △F icon on screen; 2. Rotate knob to make the frequency of receiver changes within ±1.5kHz, and the changed value of frequency will be displayed in relevant area on screen. 3. If RIT deviation value has to be reset, press and hold [RIT] for about 2s to reset the value set by RIT. Meanwhile, AF icon will disappear. Fine tuning of frequency ATT MODE MENU T/R DATA LINK X5105 V/M < A/B ATU Po LOCK RIT NB Operation 44 Automatic gain control (AGC) Receiving effect can be optimized by adjusting proper AGC speed. Operation methods: 1. Switch to menu in page 1 and press [AGC] functional key in a short time; 2. AGC functions will be circularly selected according to following sequence: OFF—SLOW—FAST--AUTO 3. Optimal effect will be obtained by reasonably selecting different AGC speed according to different receiving modes.  SSB/AM mode: SLOW is recommended  CW mode: FAST if recommended  If AUTO is selected, main machine will be automatically switched to a corresponding control speed according to different modes.  If 'AGC-OFF' is selected, AGC system will be closed and S meter will display nothing. Operation 45 PRE/ATT PRE and ATT can improve the listen-in effect of the receiver. When signal is weak, PRE can be turned on to improve T/R DATA LINK X5105 A/B ATT can be turned on to reduce signal strength. You can also turn off the circuit unit to make signal feedthrough. Operation methods: 1. Press [PRE/ATT] in a short time to enable the function. 2. Switch sequence by following the cycle below: PRE/ATT PRE ATT ATU Po LOCK PRE ATT OFF  When operation in short wave low bands (lower than 10MHz), PRE can be turned off to make signal feedthrough, which facilitates to improve the receiving effect and avoid receiver blocking caused by strong interference signal. Generally, it will be unnecessary to turn on PRE if S meter is working. V/M < MODE MENU NB RIT Operation 46 Pulse interference suppressor NB Pulse interference suppressor can effectively eliminate some specific impulse interferences, especially the noise caused by automobile ignition system, so that PRE MODE T/R DATA LINK X5105 < A/B ATU Po receiving effect can be obviously improved. Operation methods: 1. Press [NB] key in a short time to enable NB function, and there will be relevant prompt messages on screen. 2. Press[NB] key again to turn off NB pulse suppressor. Noise suppression ATT MENU LOCK  NB function only has inhibiting effect on special impulse noises, which can not be used to replace digital noise reduction function. RIT NB V/M Operation 47 < A/B NB RIT MENU T/R DATA LINK X5105 V/M ATU Po PRE ATT MODE LOCK Different frequency receiving and sending operation SPL and VFOA/B settings X5105 transceiver has two built-in set differ tent frequencies and modes. Cooperated with SPL function, it can conveniently achieve different VFOA/B operations. VFO settings: 1. Press [A/B] key in a short time to switch between VFO-A and VFO-B; 2. Set current VFO working frequency and mode when switching to a certain VFO state. Different frequency receiving and sending SPLT operation methods: 1. Set receiving frequency and mode (VFO-A) firstly; 2. Set transmitting frequency and mode (VFO-B); 3. Press [MODE] key to enable/disable different frequency receiving and sending modes. There will be two triangle symbols on screen after enabling.  VFOA/B can be fully used to set different frequencies and modes, so as to achieve raid switching between two frequency points. Operation 48 VFO mode/MEMO mode switch V/M transceiver can be switched between VFO mode and MEMO mode to achieve flexible operation method. Operation methods: T/R DATA LINK X5105 < V/M A/B V/M switch key 1. Press [V/M] key in a short time to switch between VFO (frequency) mode and MEMO (channel) mode. 2. Press [V/M] key in a short timer under current mode to switch to another mode state. PRE ATT ATU Po LOCK Tips: Press [V/M] key in a long time under MEMO channel mode to write current MEMO parameters in VFO and return to VFO mode. MODE NB RIT MENU Operation 49 V/M A/B MODE NB RIT T/R DATA LINK X5105 < ATU Po PRE ATT LOCK MENU Key lock/backlight brightness adjustment Lock Lock [LOCK] key to avoid spurious triggering of transceiver and hand microphone during outdoor operations. After lock function is enabled, other keys, knobs and Hand microphone keys on panel of main machine are invalid except for PTT keys and this key. Operation methods: 1. Press [LOCK] in a long time to enable lock; again to unlock. 3. There will be a lock symbol in relevant area of screen after locking. 4. Press [LOCK] in a short time to adjust backlight brightness (5 levels) until backlight is turned off. Lock key Operation 50 CW communication Use manual keys or external keying unit for operations. Operation methods: 1. Insert keys (three-wire) in KEY interface at right side of plug; 2. Press [MODE] key to switch to CW (or CWR) mode; 3. Press [MENU] key in a short time to switch to the menu in page 4, and then set parameters of relevant telegram keys and QSK. 4. Press telegram key to enable CW communication. Tips: See the introduction to multi-function menu 4 for selection of telegram keys and relevant settings of auto keys or other operations. Trainer mode You can take X5105 as a CW code trainer in following methods: Press [MENU] key in a short time to switch to menu in page 4 and select QSK function as 'OFF'. There will be CW sidetone of transceiver after pressing telegram keys under such conditions, but signals will not be transmitted externally. Operation 51 Preset message editing and sending MSG1~MSG10 Main machine of X5105 provides a memory for 10 groups of preset telegraph texts to achieve automatic calling under CW/PSK/RTTY mode. Operation methods: 1. See the introduction to multi-function menu 3 for details on operation and editing method of preset telegraph texts. 2. in #5-2 menu, press [MSG] key in a short time to select the telegraph texts to be sent, and then press XFC key on multi- function hand microphone to send them. Operation 52 Channel manager Channel memory (MEMO) 1. See #3-1 submenu for the operation of channel memory. 2. Press [SEL] key to select channel number to be stored. 3. Press [SAVE] to save it after selecting channel number. Channel name TAG 4. Press [SEL] key to select TAG editing items. 5. Rotate major knob to select required characters, and then press [SAVE] to save them. 6. 3. Press V/M key on panel to see the edited channel names. See #3 menu for other relevant operation details. Operation 53 Amateur radio data communications by connecting with computer X5105 transceiver can be connected with computer and complete all kinds of data communications under the help of computer softwares. Operation and connection methods: 1. Connect computer audio output/input to X5105 from ACC interface (MINI-DIN8). 2. Insert attached data cable into COM (or CIV) interface, connect X5105 with computer, and ensure that drive of computer of data cable is correctly installed and PC software can control the X5105 transceiver; 3. Adjust the volume of X5105 and input/output volume of ACC interface to a proper level and observe software interface to avoid communication failure caused by excessive audio range. 4. Select corresponding working modes, i.e., carry out data communication.  Radio and computer must be well grounded to avoid interference, and EMC magnet ring shall be installed for data cable and audio cable at the position close to main machine of radio to greatest extent. Operation 54 System parameter configuration Personalized settings can be achieved for transceiver in system settings menu to make it fit your using habit in a better way. Operation methods: 1. Press and hold [MENU] key for 1s to enter system settings menu; 2. Press [<] and [>] multi-function keys at the bottom of screen to call out the menu items you want to adjust; 3. Rotate major knob to set parameters you wanted; 4. Press [SAVE] key in a short time to save current settings and exit menu mode after setting.  If pressing [QUIT] key in a short key in step 4 mentioned above, new settings will not be saved and the equipment will exit menu mode of the system. Descriptions of system menu Menu items Function description Settable values Default #1 LCD Backlight Displayer backlight brightness OFF～LEVEL5 LEVEL5 #2 LCD Contrast Displayer contrast ratio 0～30 30 #3 BEEP Volum System prompt volume 0～100 50 #4 CW Tone Volum CW sidetone volume 0～100 50 #5 Key BEEP Key prompt tone OFF/ON ON #6 AM Mod Level AM transmission modulation degree 0～63 60 55 System Parameter Configuration #7 Band Stack Mode Wave band group mode Ham band only / Full band Ham band only #8 MIC Bias Hand microphone bias settings OFF/ON ON #9 Charger Charging switch OFF/ON ON #10 IF Output Intermediate frequency output switch OFF/ON OFF #11 RSSI Scale S meter calibration #12 User Key F1 Hand microphone F1 key customization LEFT #13 User Key F2 Hand microphone F2 key customization RIGHT  Default parameters can ensure that the transceiver is working under a goods condition. You can also adjust above parameters in a fine way according to your using habits. 56 Operation Computer control instructions X5105 adopts standard CIV instruction sets. You can remotely control the transceiver based on standard instructions of the instruction set or configure control instructions of other softwares, so as to achieve the control on X5105. Wave band voltage data ACC interface of X5105 provides wave band voltage data of each frequency band. The wave band data can control peripherals to achieve automatic wave band switch or can be used by other equipment to identify wave brand information. Wave band Voltage Wave band Voltage Wave band Voltage Wave band Voltage 1.8MHz 230mV 7MHz 920mV 18MHz 1610mV 28MHz 2300mV 3.5MHz 460mV 10MHz 1150mV 21MHz 1840mV 50MHz 2530mV 5.0MHz 690mV 14MHz 1380mV 24MHz 2070mV / / 57 General parameters Frequency range Indicators Carrier suppression: Sideband stray: ＞40dB ＞50dB Receiving: 0.5MHz～30MHz 50MHz～54MHz SSB frequency response: 400Hz-2800Hz（-6dB） Transmitting: 1.8～2.0MHz 5.3515～5.3665MHz 10.1～10.15MHz 18.068～18.168MHz 24.89～24.99MHz 50～54MHz 3.5～3.9MHz 7.0～7.2MHz 14.0～14.35MHz 21.0～21.45MHz 28.0～29.7MHz Microphone impedance: Receiver parameters and circuit type: Intermediate frequency: Sensitivity: 200～10k（(600Ω in general) Double conversion superheterodyne+audio DSP First intermediate frequency: 70.455MHz Second intermediate frequency: 10.695MHz Third intermediate frequency: 455kHz(NFM) Transmitting mode: A1A(CW)，A3E(AM)，J3E(USB/LSB)， F3E(FM) Minimum step: Antenna impedance: Working temperature range: Frequency stability: Power voltage: Current consumption: 1Hz 50Ω -10℃ ～ +50℃ ±4ppm @25C° within 1-60min after startup: 1ppm/h 9.0~15.0VDC, cathode grounding Receiving: 600mA@ Max Transmitting: 2.5A@ Max 3800mAh @12V (PRE=on，ATT=off，NB=off，NR=off，SSB/CW/AM = 10dB S/N，FM = 12dB SINAD) Battery capacity: Size of the equipment: 168*93*47mm (WxHxT) (excluding protrusions) Image rejection ratio: Intermediate frequency suppression 70dB 60dB SSB： -6dB:2.4kHz/-60dB:4.6kHz Weight: About 0.94kg (only main machine) degree: Selectivity: CW： -6dB:500Hz/-60dB:2000Hz AM： -6dB:6.0kHz/-60dB:25.0kHz Transmitter parameters: Radio frequency output power: Modulation type: FM maximum frequency offset: Stray radiation: 5W(SSB/CW/FM) 1.5W (AM carrier wave) @13.8VDC SSB: balanced modulation AM: Low level amplitude modulation FM: variable reactance frequency modulation ±5kHz -55dB FM： -6dB:12.0kHz/-60dB:25.0kHz Audio output :0.6W (8Ω,≤10% THD) Audio output impedance: 4~16Ω  Above specifications may be changed without notice.  Working frequency range of transceiver varies from version of the equipment. Ask dealer for details. SSB/CW AM FM ≤1.8MHz 0.6uV 10uV / 1.8MHz- 28MHz 0.25uV 2uV / 28MHz- 30MHz 0.25uV 2uV 0.35uV 50MHz- 54MHz 0.25uV 2uV 0.35uV 58 Standard attached items *Optional accessories Accessories Name of components Description CE-19 ACC expanded wiring card XPA125B 100W power amplifier and antenna tuner AIO Items Qty. Main machine of X5105 (provided with batteries) 1pcs Multi-function hand microphone 1pcs Power line 1pcs Data cable 1pcs Manual 1pcs Quality certificate 1pcs Warranty card 1pcs 59 Appendix Schematic Diagram of Connection between Existing Models of XIEGU and XPA125B/ XPA125 ** Connection method of XPA125B is the same as that of XPA125. X108 MIC interface RJ45 antithetical connection wire CN-172 6-core wire XPA125 X108G Direct connection of ACC interface 6-core wire XPA125 X5105 ACC interface 8-core wire CE-19 TO XPA125 6-core wire XPA125 60 Appendix Schematic diagram of CE-19 expansion card interface PTT CON TO XPA125 AF CON PTT signal/BAND signal output port. PTT signal of the port is completely isolated from main machine, providing 'low level' trigger linked with main machine. Special interface for XPA125 power amplifier and antenna tuner AIO. Audio input/output port. Audio output from the port is directly output after demodulation without filter. DATA CON Data output port under NFM mode. Two terminals of the port are in parallel relationship, outputting same signals. 61 Copyright Statement All Rights Reserved 2019 Chongqing Xiegu Technology Co., Ltd. reserves all rights of the manual. Any part of the manual shall not be copied without permission. V3.0 1010160203-C
