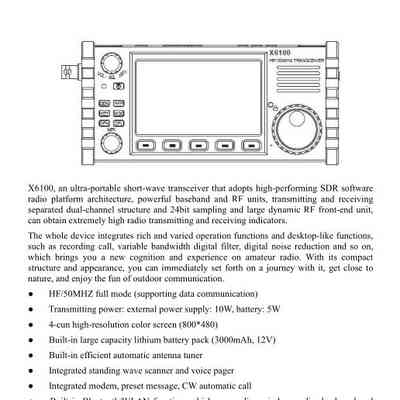

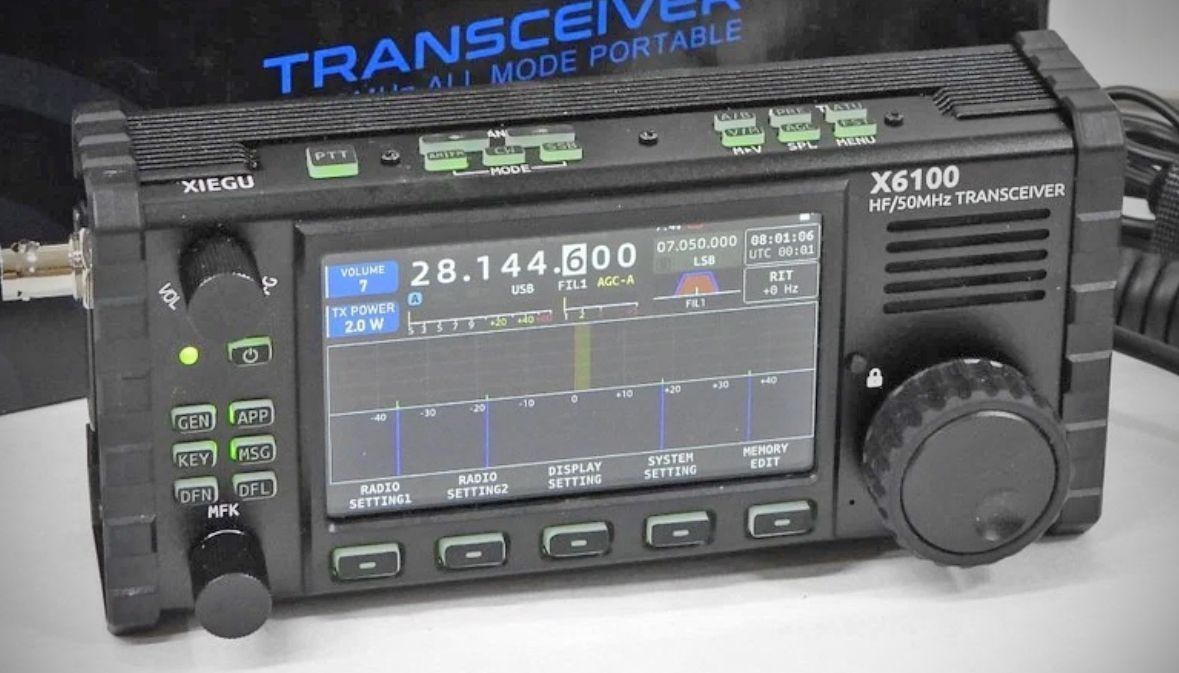

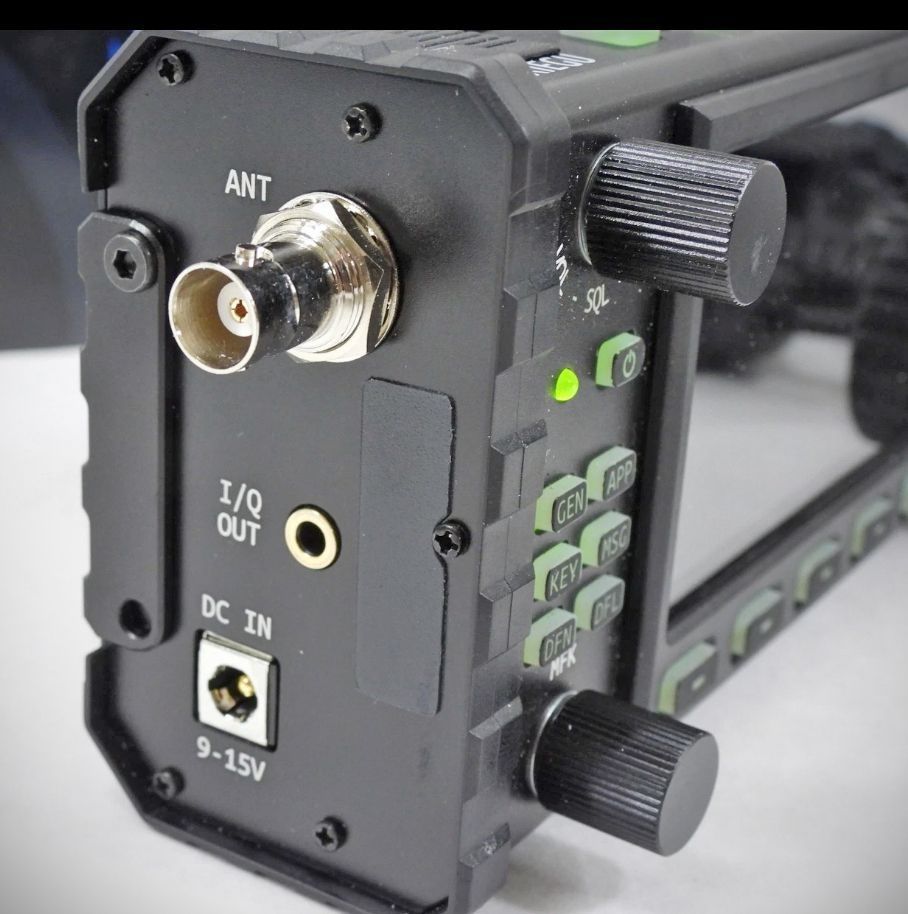

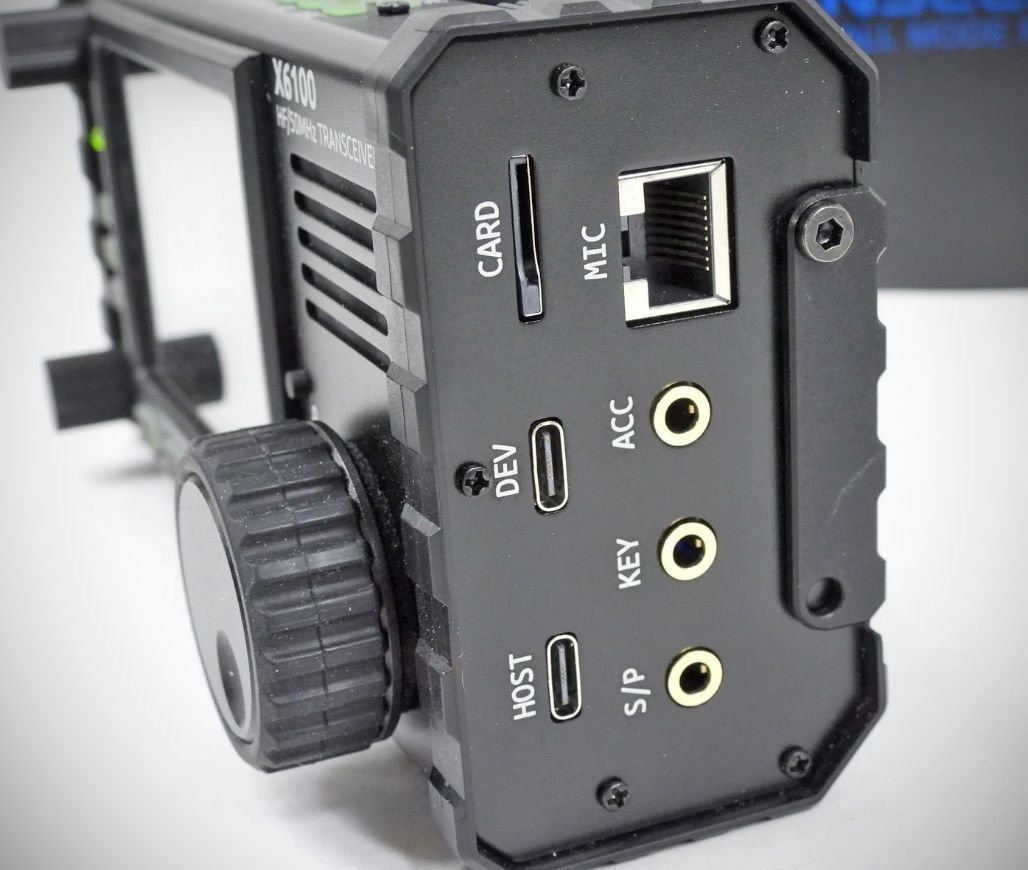

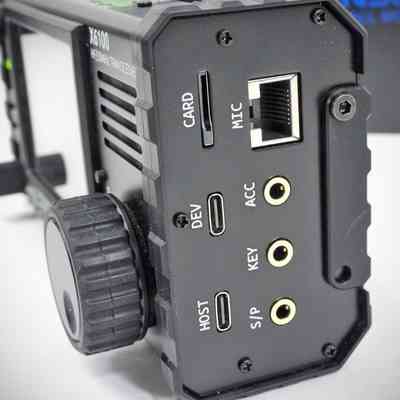

The X6100, is a portable SDR-based transceiver featuring powerful baseband and RF units, transmitting and receiving separated dual-channel structure, 24 bit sampling, and a large dynamic RF front-end unit.
Basic features:
● HF/50MHZ full mode (supporting data communication)
● Transmitting power: external power supply: 10W, battery: 5W
● High-resolution color screen (800*480)
● Built-in lithium battery pack (3000mAh, 12V)
● Built-in automatic antenna tuner
● Integrated standing wave scanner and voice pager
● Integrated modem, preset message, CW automatic call
● Built-in Bluetooth/WLAN functions
● Integrated USB line control/transmission, supporting USBHOST.
● Standard high-stability TCX0 internal clock source
Specifications
Frequency range: receiving: 0.5MHz~30MHz 50.00~54MHz
Transmitting (MHz):
1.8~2.0
3.5~3.9
7.0~7.2
10.1~10.15
14.0~14.35
18.068~18.168
21.0~21.45
24.89~24.99
28.0~29.7
50.00~53.99
Modes: CW, AM, SSB, FM
Minimum stepping: 1Hz
Antenna impedance: 50Ω
Working temperature range: 0°C~+55°C
Frequency stability: ±1.5ppm within 10~30min after startup
@25°C: 1ppm/hour
Supply voltage: 9.0~15.0VDC, negative ground
Current consumption: receiving: 330 mA, transmitting: 3 A
Dimensions: 180*86*49mm (L*W*H) (not including protrusions)
Weight: about 880g (host only)
Transmitter
RF output power:
10 W (SSB/CW/FM) @13.8VDC
2.5 W (AM carrier wave) @13.8VDC
5W (SSB/CW/FM) @ battery
1.5 W (AM carrier wave) @ battery
Spurious suppression:
1.8~29.6 MHz: ≥50dB
54 MHz: ≥60dB
Carrier suppression: ≥50dB
Microphone impedance: 200~10k (600Ω in general)
Receiver parameters
Circuit type: ZIF
Sideband suppression: Ω50dB
MDS:-138dB
Sensitivity:
SSB/CW better than 0.35 uV
FM: 0.22 uV
AM: 0.5–2.0 MHz, 10 uV
AM 28–54 MHz, 2.0 uV
